Stainless Steel Sheet and Flat Bar of Special Steel DIN 1.2316 S136
Stainless Steel Sheet and Flat Bar of Special Steel DIN 1.2316 S1361, Grade: 1.2316/S136/420/4Cr132, Features:a) Preliminary hard conditioning die mould steel;b) Excellent corrosion resistance and have abrasion resistance and toughness;c) Material hardness is uniform, have a superior polishing perfo......
Send Inquiry
Product Description
Stainless Steel Sheet and Flat Bar of Special Steel DIN 1.2316 S136
1, Grade: 1.2316/S136/420/4Cr13
2, Features:
a) Preliminary hard conditioning die mould steel;
b) Excellent corrosion resistance and have abrasion resistance and toughness;
c) Material hardness is uniform, have a superior polishing performance;
3, Application:
a) Highly stressed cutting and punching tools for thin sheets;
b) Stone processing tools and knives for paper and plastics,shear knives;
c) Low content of impurity content,stable production period.
Our company equips with large-sized Vertical saw machines, Horizontal saw machines, Milling machines, Grinding machines and other advanced equipments to provide customers with cutting and other processing services.
We can provide below service:
A. Steel plates: Cutting by bandsaw machine, milling, heat treatment, etc
B. Round bars: Cutting by bandsaw machine, peeling, grinding and turned, heat treatment, etc
4, Chemical composition (%)
5, Available Size
6, Hardness: 210HB
7, Package: Standard export packing or according to customers' request.
8, Delivery:
For abundant stock, 7-15 days.
For customized products, 30-50 days.
Package: We provide standard export packing or according to customers' request.
About shipment:
9, Heat Treatment:
Annealing : 810 - 830 °C
Hardness after annealing : Max. 230 HB
Stress relieving : Approx. 650 °C
Hot forming : 1050 - 850 °C
Hardening: 970 - 990 °C
Quenching media : Oil, Vacuum
Hardness after quenching : 52 - 56 HRC
Hardness after tempering:
Products show:
About us:
Guangzhou ChangFeng Steel Co., Ltd. is a professional special steel company, which specialized in exporting mould steel products based in China. With more than 20 years experience in special steel industry, our main products are Plastic Mould Steel, Hot Work Mould Steel, Cold Work Mould Steel, Alloy Structural Steel, Tool Steel, Stainless Steel, Carbon Steel and Forged Block.
To ensure provide high quality products to customers, we have close cooperation with many Chinese first class special steel enterprises, including Baosteel Group, Dongbei Special Steel, Changcheng Special Steel, Hongsheng Heavy Industry, Xingcheng Special Steel, Daye Special Steel.
We have thousand tons of stock materials in our own factory and also can provide processing services to customers. We are full of export experience for many years, the product covers America, Germany, France, Italy, Turkey, Singapore, Thailand, Malaysia, Vietnam, Taiwan, and Middle-East.
After years of development, the company has established a complete quality management and export service system. We have a group of experienced and competent elites and is capable of offering the best service to clients.
Our company equips with large-sized Vertical saw machines, Horizontal saw machines, Milling machines, Grinding machines and other advanced equipments to provide customers with cutting and other processing services.
All the products should be inspected the metallographic analysis, hardness, ultrasonic flaw detection and other strict inspection processes, which meet the standards of DIN, AISI, JIS and GB to ensure their function and quality.
About our warehouse:
1, Grade: 1.2316/S136/420/4Cr13
2, Features:
a) Preliminary hard conditioning die mould steel;
b) Excellent corrosion resistance and have abrasion resistance and toughness;
c) Material hardness is uniform, have a superior polishing performance;
3, Application:
a) Highly stressed cutting and punching tools for thin sheets;
b) Stone processing tools and knives for paper and plastics,shear knives;
c) Low content of impurity content,stable production period.
Our company equips with large-sized Vertical saw machines, Horizontal saw machines, Milling machines, Grinding machines and other advanced equipments to provide customers with cutting and other processing services.
We can provide below service:
A. Steel plates: Cutting by bandsaw machine, milling, heat treatment, etc
B. Round bars: Cutting by bandsaw machine, peeling, grinding and turned, heat treatment, etc
4, Chemical composition (%)
| C | Si | Mn | Cr | P | S | Mo | Ni |
| 0.33-0.43 | ≤1.00 | ≤1.00 | 6.00-17.0 | 15.5-17 | ≤0.02 | 1.0-1.2 | 0.5 |
5, Available Size
| Grade | Size(mm) | ||
| 1.2316 Plate | Thickness | Width | Length |
| 6-195 | 2200 | 5800 | |
| 1.2316 Round Bar | Diameter | Length | |
| 10-350 | 3000-6000 | ||
6, Hardness: 210HB
7, Package: Standard export packing or according to customers' request.
8, Delivery:
For abundant stock, 7-15 days.
For customized products, 30-50 days.
Package: We provide standard export packing or according to customers' request.

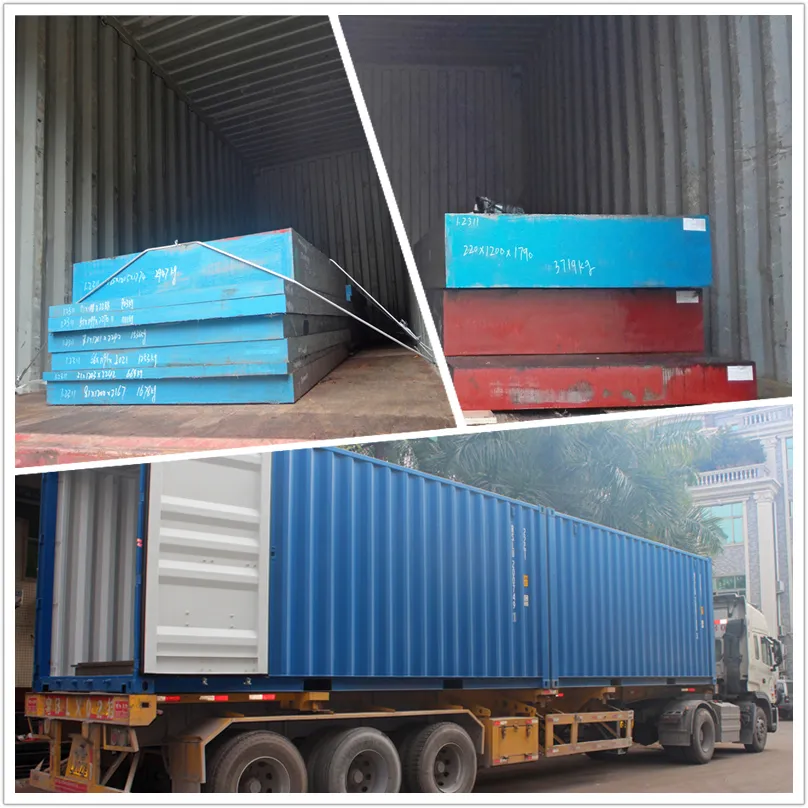

About shipment:
9, Heat Treatment:
Annealing : 810 - 830 °C
Hardness after annealing : Max. 230 HB
Stress relieving : Approx. 650 °C
Hot forming : 1050 - 850 °C
Hardening: 970 - 990 °C
Quenching media : Oil, Vacuum
Hardness after quenching : 52 - 56 HRC
Hardness after tempering:
| Tempering °C | 100 | 200 | 300 | 400 |
HRC | 54 | 52 | 52 | 52 |

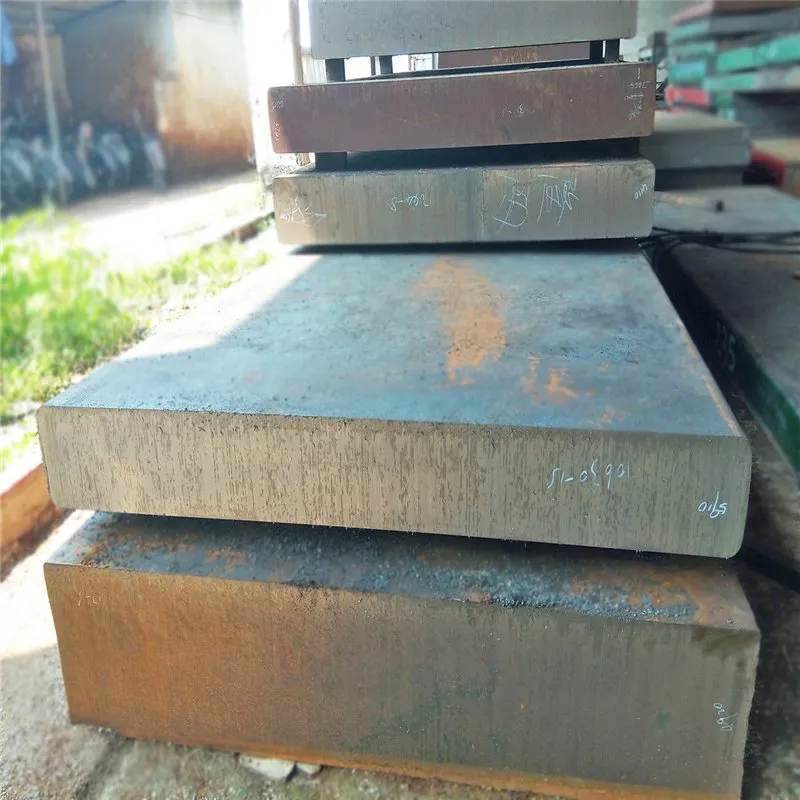

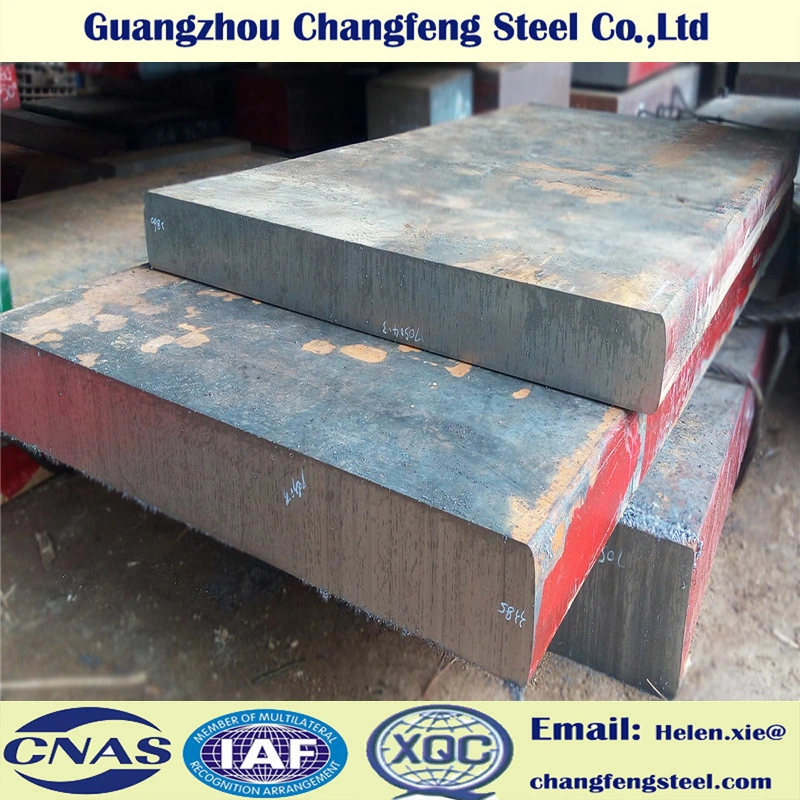

Products show:

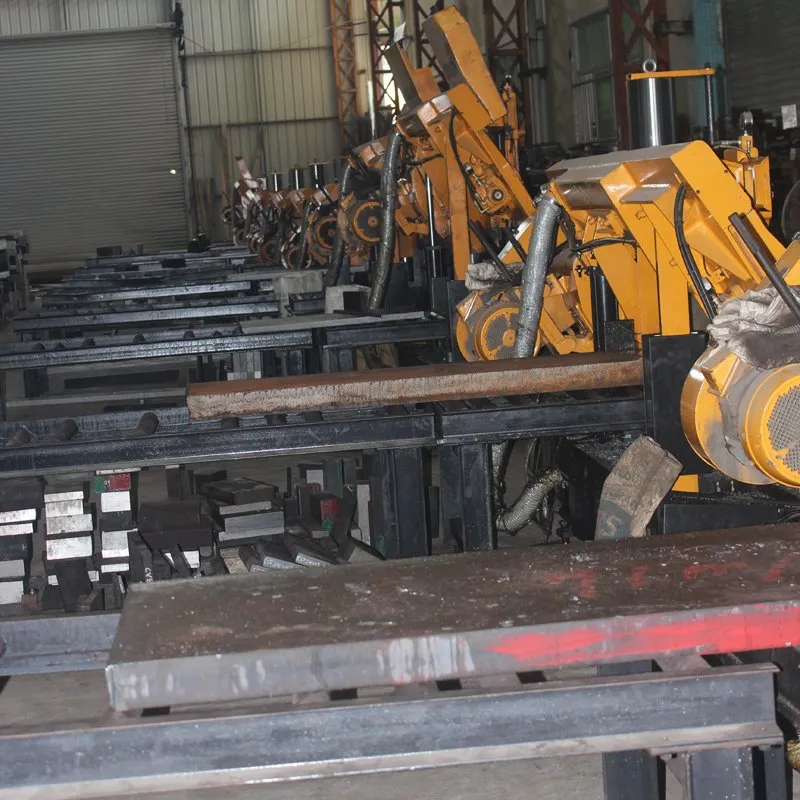

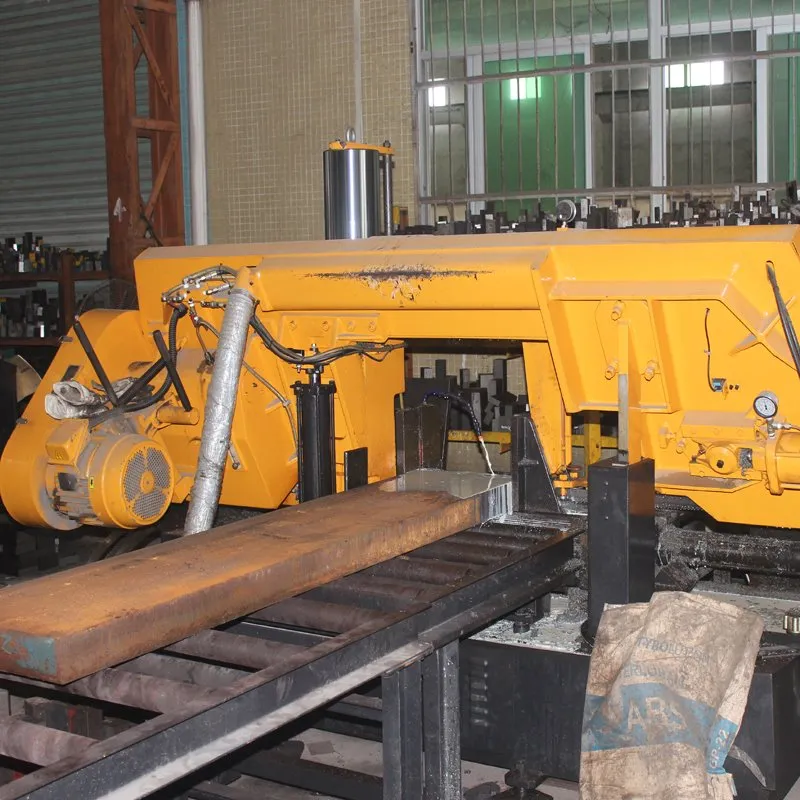

About us:
Guangzhou ChangFeng Steel Co., Ltd. is a professional special steel company, which specialized in exporting mould steel products based in China. With more than 20 years experience in special steel industry, our main products are Plastic Mould Steel, Hot Work Mould Steel, Cold Work Mould Steel, Alloy Structural Steel, Tool Steel, Stainless Steel, Carbon Steel and Forged Block.
To ensure provide high quality products to customers, we have close cooperation with many Chinese first class special steel enterprises, including Baosteel Group, Dongbei Special Steel, Changcheng Special Steel, Hongsheng Heavy Industry, Xingcheng Special Steel, Daye Special Steel.
We have thousand tons of stock materials in our own factory and also can provide processing services to customers. We are full of export experience for many years, the product covers America, Germany, France, Italy, Turkey, Singapore, Thailand, Malaysia, Vietnam, Taiwan, and Middle-East.
After years of development, the company has established a complete quality management and export service system. We have a group of experienced and competent elites and is capable of offering the best service to clients.
Our company equips with large-sized Vertical saw machines, Horizontal saw machines, Milling machines, Grinding machines and other advanced equipments to provide customers with cutting and other processing services.
All the products should be inspected the metallographic analysis, hardness, ultrasonic flaw detection and other strict inspection processes, which meet the standards of DIN, AISI, JIS and GB to ensure their function and quality.

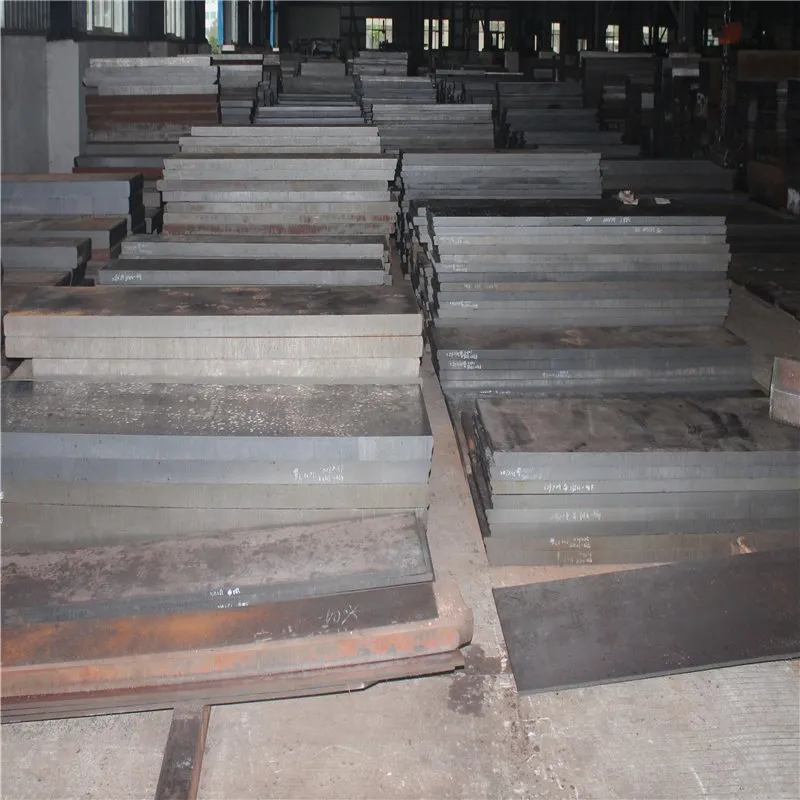

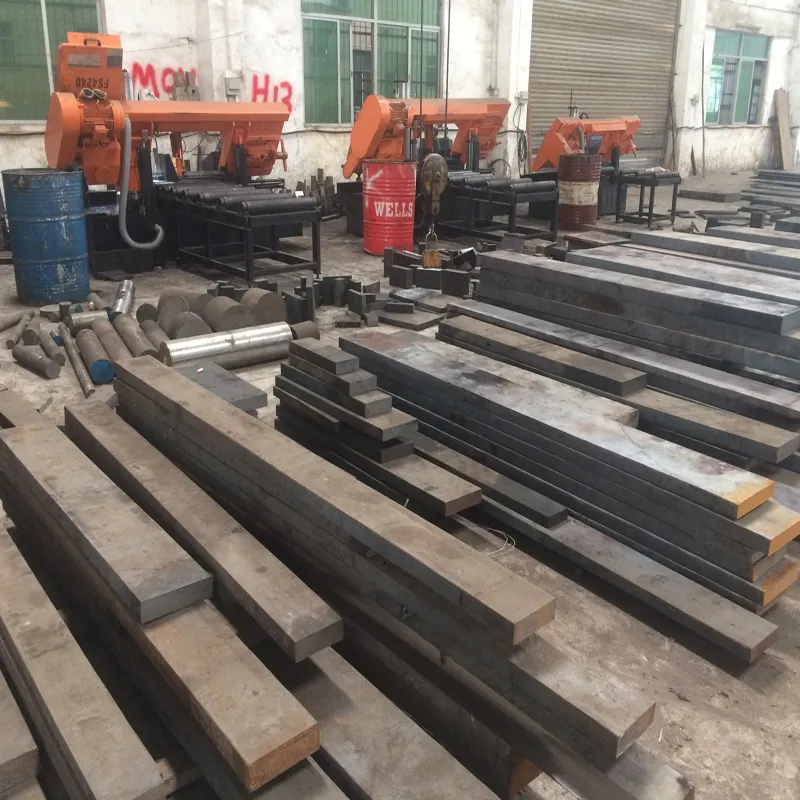

About our warehouse:
