China 1.2738 718H P20 Ni Special Alloy Mould Forged Steel Block

Product Description

1.2738 718H P20+Ni Special Alloy Mould Forged Steel Block

1. Product Introduction
P20+Ni is specially used for Plastic injection die moulds. Its characteristics is right sharpening, photo-etching properties with high purity and good homogeneity. P20+Ni is upgraded version of plastic mold steel.

2738 is in the class of Plastic mold that was develoed from 2311 by adding Nickel 1.0 Selling condition is quench and tempered. So, free from size changing after hardening Hardness range is 280-325 HB (33-37HRC) Suitable for big size plastic mold which thickness over 400 mm High strength with hardening ability .Made of steel that pass degassing process in vacuum result in polishing ability .Can do texturing or EDM .Also, can do surface hardening by various procedure.
1.2738 718H P20+Ni Special Alloy Mould Forged Steel Block

2. Features
Good polishing and photo-etching properties
Good machinability
High purity and good homogeneity
Uniform hardness
No hardening risks
No hardening costs
Time saving (i.e., no waiting for heat treatment)
Lower tool cost (e.g., no distortion to rectify)
Modifications easily carried out
Can be subsequently nitrided to increase surface wear resistance and locally flame hardened to reduce surface damage.

3. Similar Standards

Chinese	American	German	Japanese	Swedish
GB	AISI	DIN	JIS	ASSAB
3Cr2NiMnMo	P20+Ni	1.2378	PDS5S	718

4. Chemical Composition

Grades	C	Si	Mn	P	S	Mo	Ni
1.2738	0.35-0.46	0.2-0.4	1.3-1.6	≤0.035	≤0.005	0.15-0.25	0.9-1.2
718/3Cr2NiMnMo	0.28-0.40	0.2-0.8	0.6-1.0	≤0.030	≤0.030	0.30-0.55	0.8-1.2
P20+Ni	0.32-0.40	0.2-0.4	1.0-1.5	≤0.030	≤0.035	0.30-0.55	0.8-1.2

5. Heat Treatment

Quenching			Tempering
Heating Temperature/ºC	Cooling	Hardness/HRC	Heating Temperature/ºC	Cooling	Hardness/HRC
840-870	Air	≥50	550-640	Air	28-36

6. Stock Size

steel plate	Hot Rolled	Thickness	20-150mm
		Width	2200mm
		Length	2000-8000mm
	Hot Rolled	Thickness	155-300mm
		Width	1600mm
		Length	4000-8000mm
steel block	Thickness	300-1000mm
	Width	800-1600mm
	Length	2000-6000mm

7. Applications
2738 is a tool steel for plastic mold that posses high hardening ability and sell in harden and temper condition
Hardness is in range 1000 N/mm2 suitable for big size plastic mold thickner than 400 mm
Good for making tool in steel forming
Production through vacuum degassin process of steel making
High performance in polishing, machining, texturing

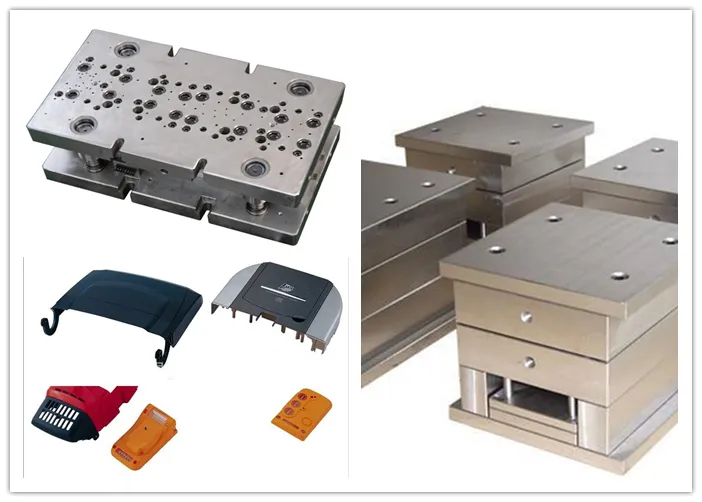

Sample of usage are as below
Blow / injection plastic mold especially thermo plastic that is free from abrasive
Mold frames for plastic mold and die casting mold
Sleeves and die holder for extrusion
1.2738 718H P20+Ni Special Alloy Mould Forged Steel Block

Why choose us?

Quality Assurance from government owned steel mills
At Changfeng, we meticulously source materials only from steel manufacturers to ensure consistency in providing the finest quality steel products for our customers.
Being in the competitive market today, we clearly understand that customers are looking for products that are not only best in class but also affordably priced. We are confident that we are able to ful fil these two equally vital aspects -our customers' continuous support over the past two decades is the most heartfelt recognition to us.
Speedy and Timely Delivery
Knowing that delivering goods to customers' hands on time is as important as providing quality goods, we treat every business transaction as a priority. Be it a raw material or a finished material with machining or heat treatment, every effort will be made to get your purchase order to you in the shortest lead time.
Quality Commitment
In order to realise competitive products to fulfil our customers' demands and quality considerations, our integrated quality and work management system is continuously being improved and developed further. We document this for our customers by having our quality management system certified in accordance with ISO 9001. This measure is accompanied by audits and recertification's on a regularly prescribed basis.

Our service
We provide quality special steel for all industries.
Orders of any size, any length, ship fast
We carry a unique inventory of specialty special steel
Provide related value-adding services :
metal cutting, sizing, machining (blanking, milling, grinding), and heat treatment.
Sawing for small or large quantities, sawing-to-size.
Excellent customer service

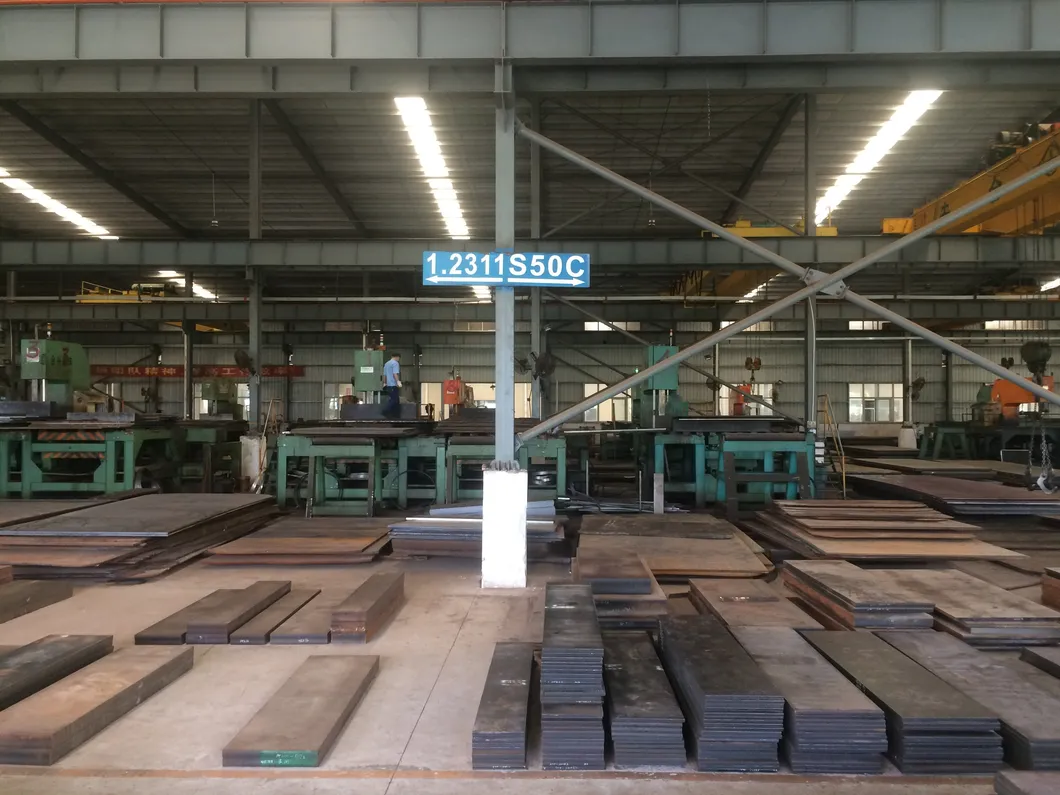

Workshop

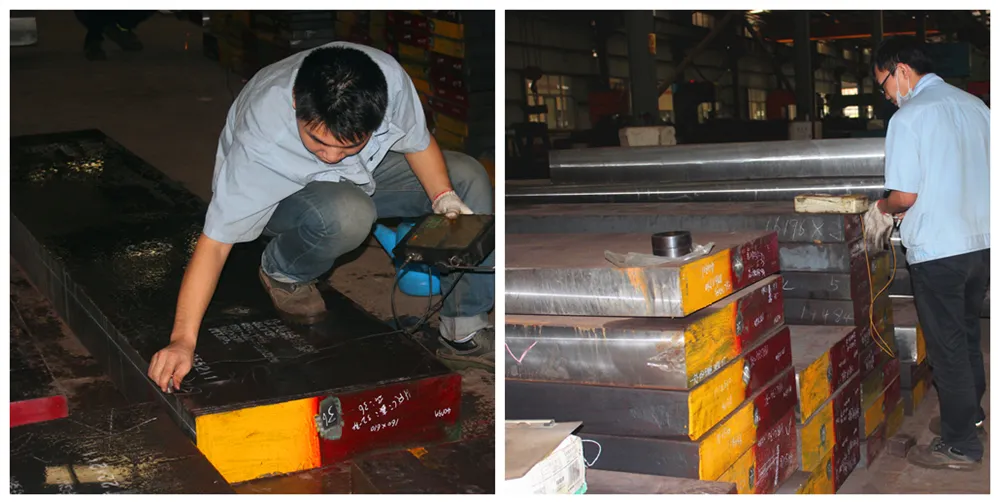

Quality Inspection

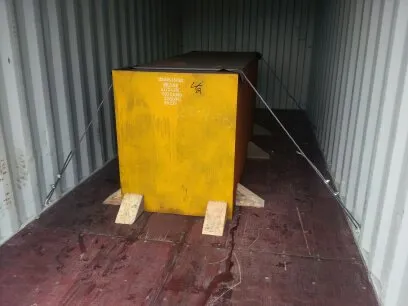

Loading
