Metal Roofing Cold Rolled Corrugated Galvanized Steel Sheet
CORRUGATED ROOFING STEEL SHEET 1. Description Thickness: 0.2-0.8mm Width: 665-1050mm Packing: Waterproof packing Commodity Galvanized corrugated sheet 665-1050mm Wall thickness 0.2-0.8mm Length any length Standard SGCC2. Common Forms Common Size as followings: 762mm to 665mm(after corr......
Send Inquiry
Product Description
1. Description
Thickness: 0.2-0.8mm
Width: 665-1050mm
Packing: Waterproof packing
Commodity Galvanized corrugated sheet
665-1050mm
Wall thickness 0.2-0.8mm
Length any length
Standard SGCC
2. Common Forms
Common Size as followings:
762mm to 665mm(after corrugated) and 9 waves
914mm to 750mm (after corrugated) and 12 waves
1000mm to 890mm or 900mm(after corrugated) and 12 or 14 waves
We can produce according to the client's requirement
3. A feature of galvanized color coated corrugated roofing sheets as followed roofing sheet
1) Outlook Beautiful and novel, rich colors, flexible combination, can be used in different building to express special original architectural styles in life
2) The surface has been treated as galvanized and color coated.so it can anti-rain,anti-fire,anti-quake, So it has a long-term life as 20-30 year and color just not fade.
3) Lightweight: easy to transport the material, short the time to finish the building, reduce worker's hard work, save much time and energy for human beings
4) Smooth surface treatment, the dust will be easily taken off by the rain
5) The environmental material can be used many times, will do no hard to our environment.
(6) 1000 width, and 880 effective widths or as your requirement, for easy setup.
(7) Prime anti-fire application, which is confirmed by GB50222-95 as difficult to fire as B
(8) Impact resistance, strength is 250-300 times of common glass,2-20times of tempered glass,
(9) Energy saving: keep summer cool, winter warm. Heat insulation effect is higher 7%-25% than that of the common glass, then heat loss is greatly reduced.
(10) insulation resistance: corrugated sheet with obvious effect of noisy.
(11) Light in weight, and have very good beatification vision effect.
| Base Metal | Cold Rolled Steel Coil |
| Material | SGCC, SGCH, Full Hard |
| Grade | Commercia.Quality(CGCC,DX51D,DC01,SPCC), Structure.quality(S280GD,S320GD,S350GD). Deep.drawing.quality(DX52D,DX53D,DX54D,DX56D) |
| Standard | ASTM A653 CS/B,JIS G3302,DIN EN 10142,EN10327 |
| Application | Advertising,building trade,home electrical, Electrical industry,decoration,office furniture |
| Thickness | 0.14-1.0mm |
| Tolerance | +/-0.03mm |
| Zinc Layer | A40,A60,G60,G90,G115,G140,G165. Z12,Z18,Z22,Z25,Z27,Z35. Z60,Z80,Z100,Z120,Z150,Z180,Z220,Z275,Z350 |
| Width | 600mm,750mm,762mm,914mm,1000mm,1219mm,1200mm,1250mm,1500mm |
| Length | 1.5m,2.0m,2.438m,2.44m,2.5m,3m.,3.5m,4m,4.5m,5m |
| Surface Treatment | Chromated,oiled/unoiled,skin-passed,Chromated+oiled |
| Surface State | Regular spangle, mini spangle, zero spangle, skin-passed |
| Coil Weight | 4-8tons |
| ID | 508mm or 610mm |
| Package | Export standard seaworthy packing. Waterproof paper+steel sheet+bundle with steel strips(3-4pcs) |
| Delivery | Based on the quantity |
| Shipment | Bulk vessel or container (FCL/LCL) |
| Payment | T/T or LC at sight |
| Port of Loading | Main port of China, Shanghai, Qingdao, Dalian, Tianjin, etc. |
| Yield Strength | 285Mpa-305Mpa |
| Tensile Strength | 340Mpa-370Mpa |

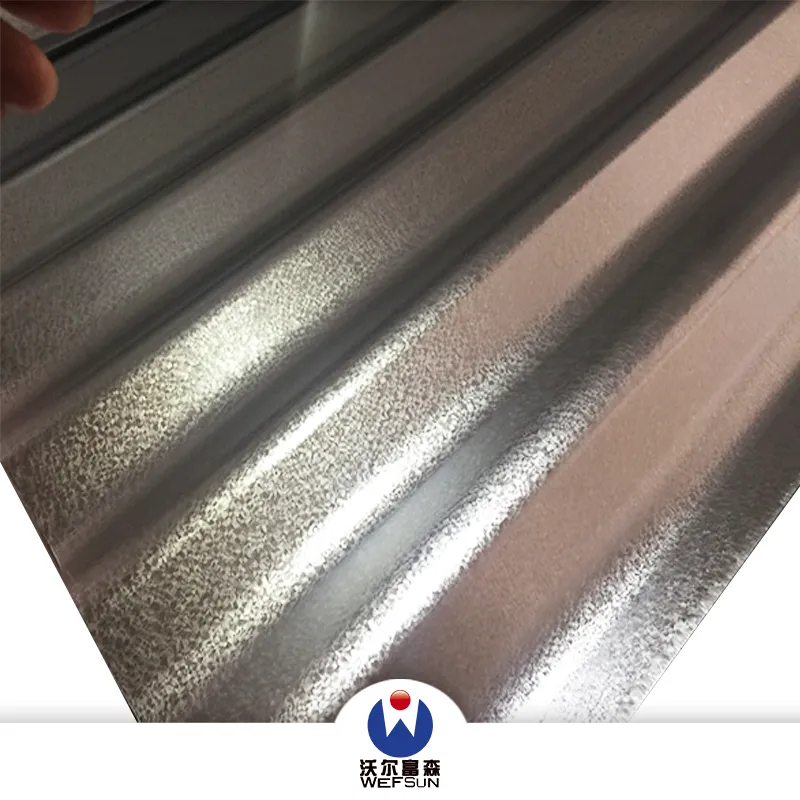

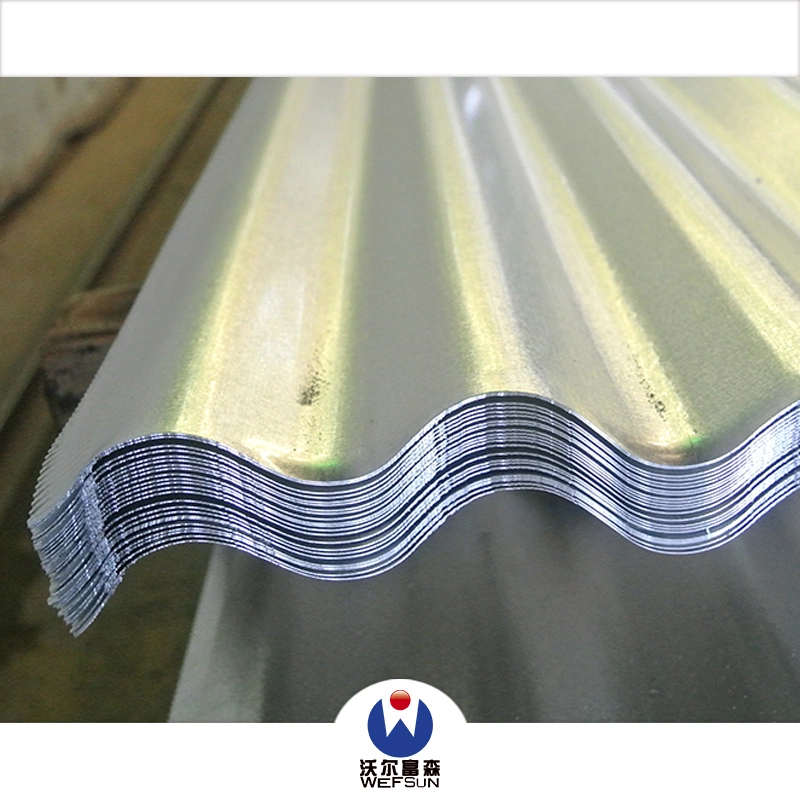

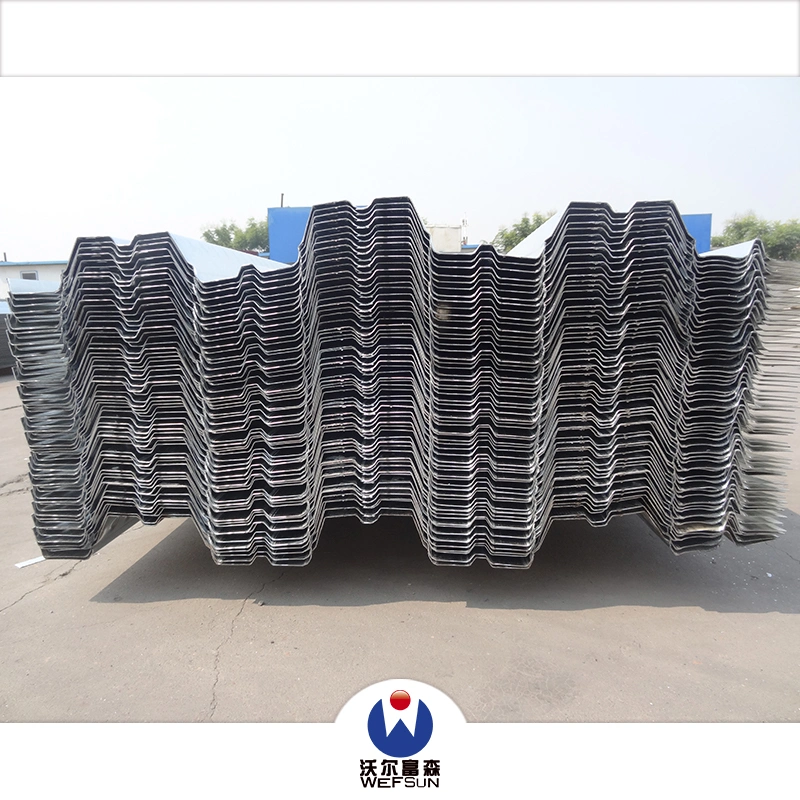

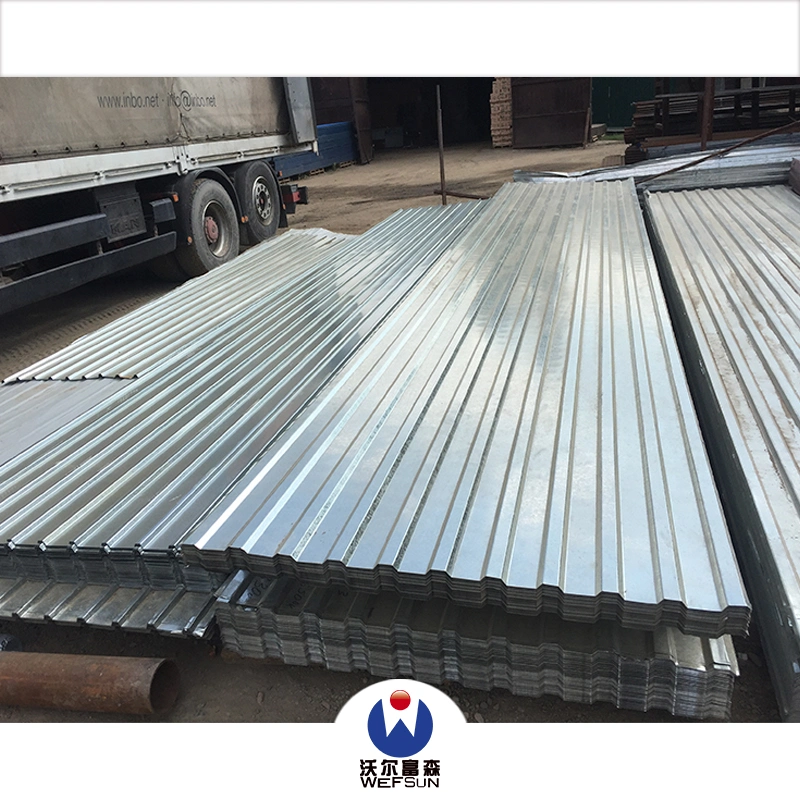

Product Display

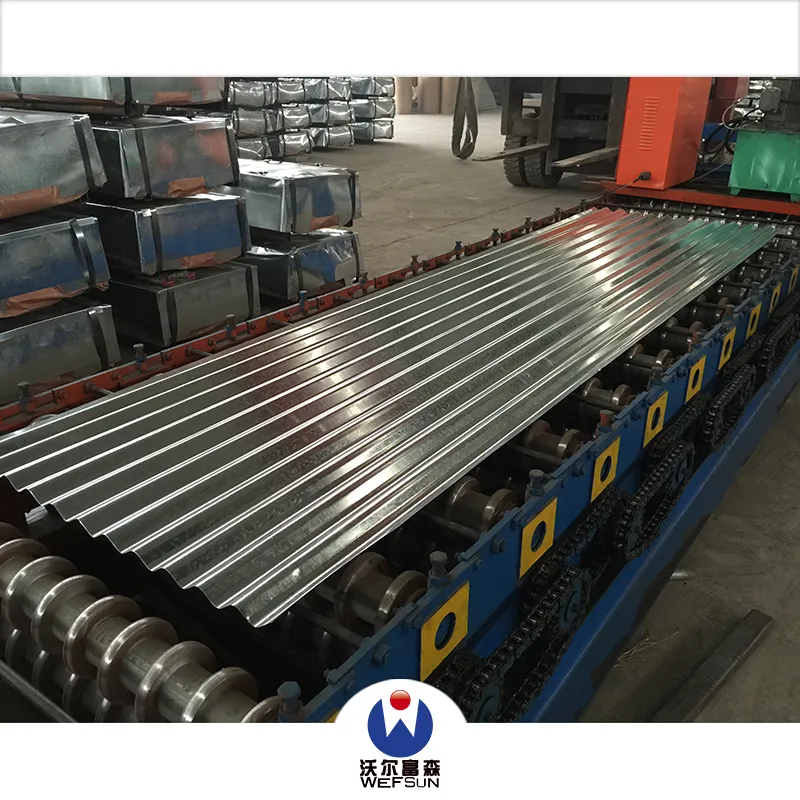

Production Line

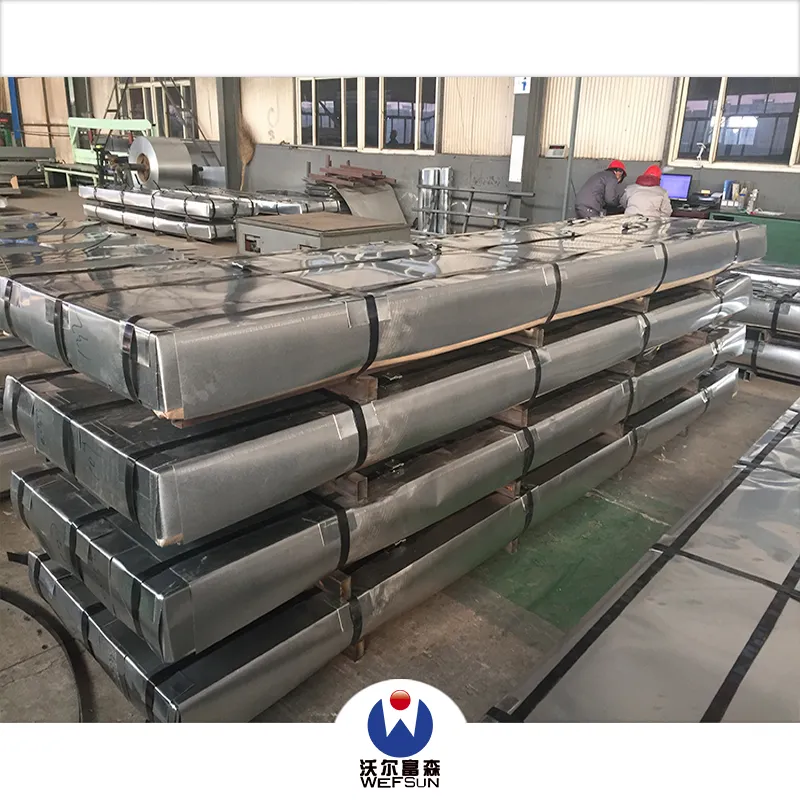

Stock

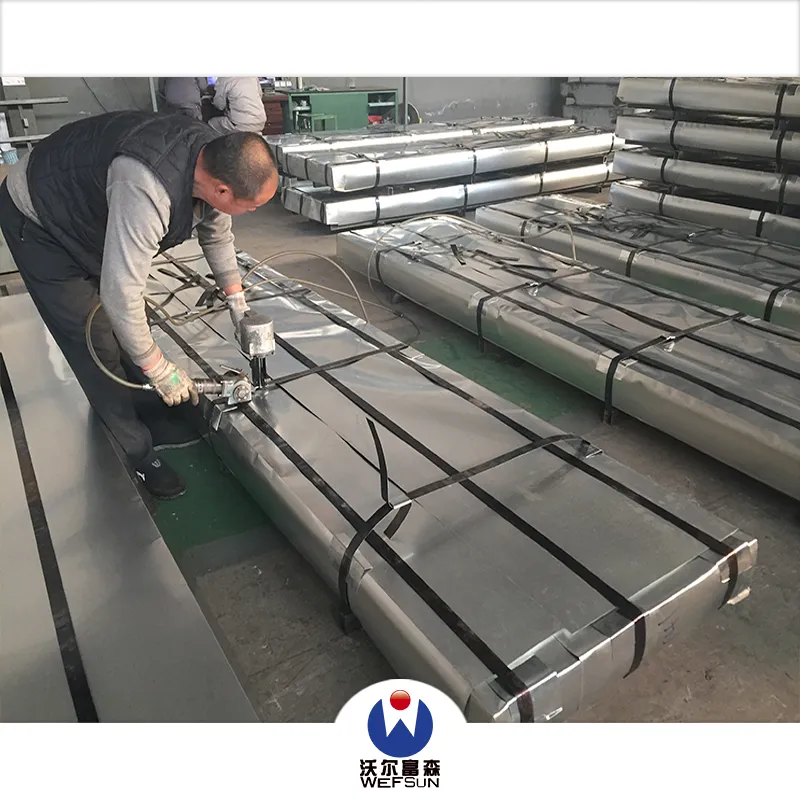

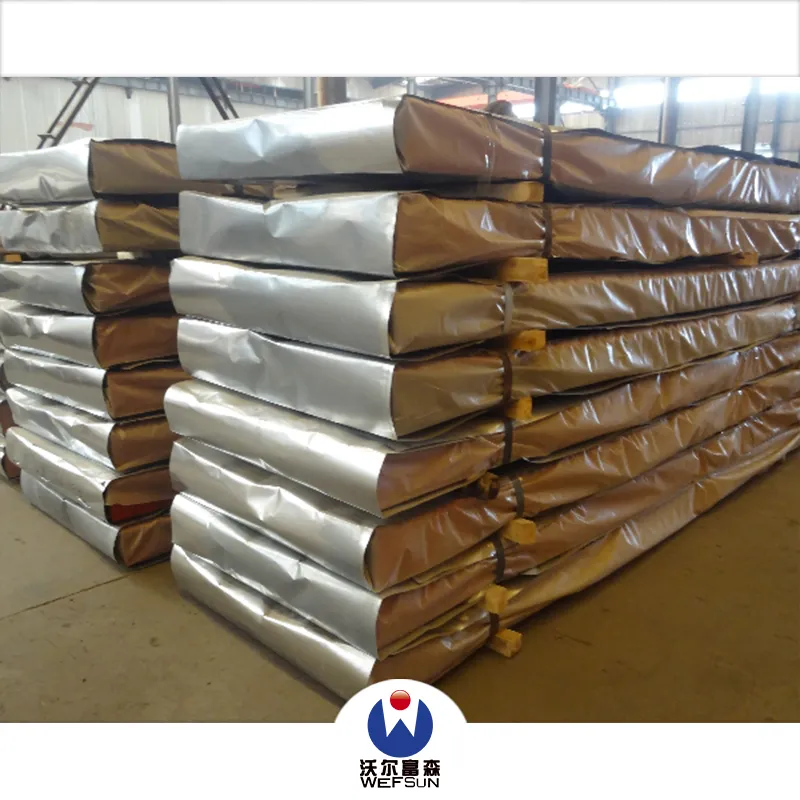

Packaging
Wefsun Group was established in 1999 and located in Qingdao China. The Group has nine subsidiary companies and covers more than 100,000 square meters. Area of the warehouses is about 60,000 square meters. The Group's registration capital is RMB 25 million, the products cover pipes, beams, plates, construction material etc., including more than two thousand specifications with annual sales of several hundred million. The products sell well in Shandong Province, Europe, South America, Africa, Southeast Asia, the Middle East, etc. and win good evaluation from customers.
Qingdao Woming Steel Pipe Co., Ltd is a wholly-owned subsidiary of Wefsun Group, located in Lancun north industrial park of Qingdao. With the most advanced production lines in domestic, the factory can produce the precision high-frequency welded pipe. The punching workshop has multiple tube end molding machines (shrink tube machine, bending machine), cutting machine and punching machine etc. for deep processing. The annual output is over 100,000 tons, some of the products are being exported to America.
In order to develop market abroad, Wefsun Group founded International Trade Department in 2006 and Qingdao KMY International Trade Co., Ltd. in 2008. The total export amount is up to several thousand tons every month...
Tanzania ZWZ Steel Pipe Co., Ltd. was established in 2010, located in DAR ES SALAAM of Tanzania. ZWZ is specialized in production and sales of welded steel pipe and metal material. The products not only meet Tanzania' s market demand but also sell to tens of countries around.
