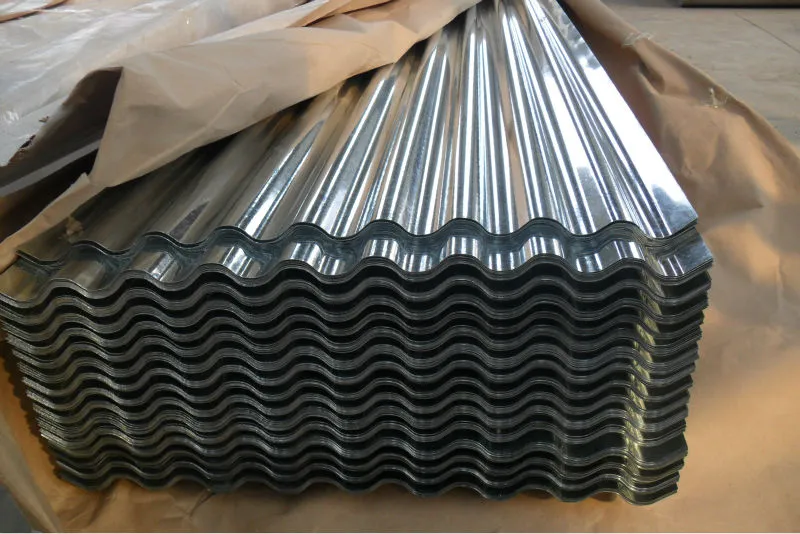

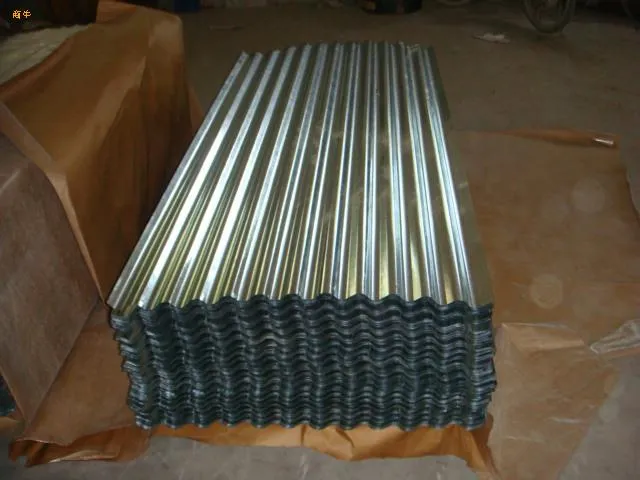

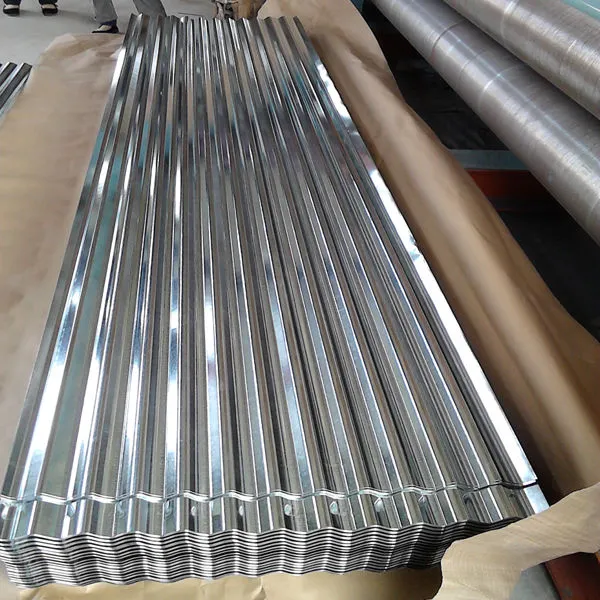

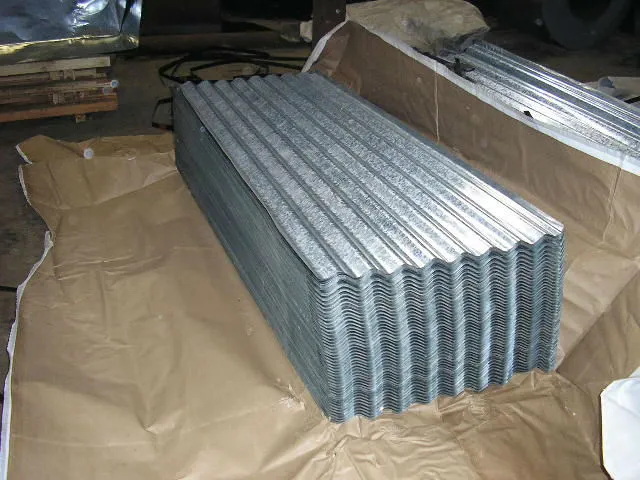

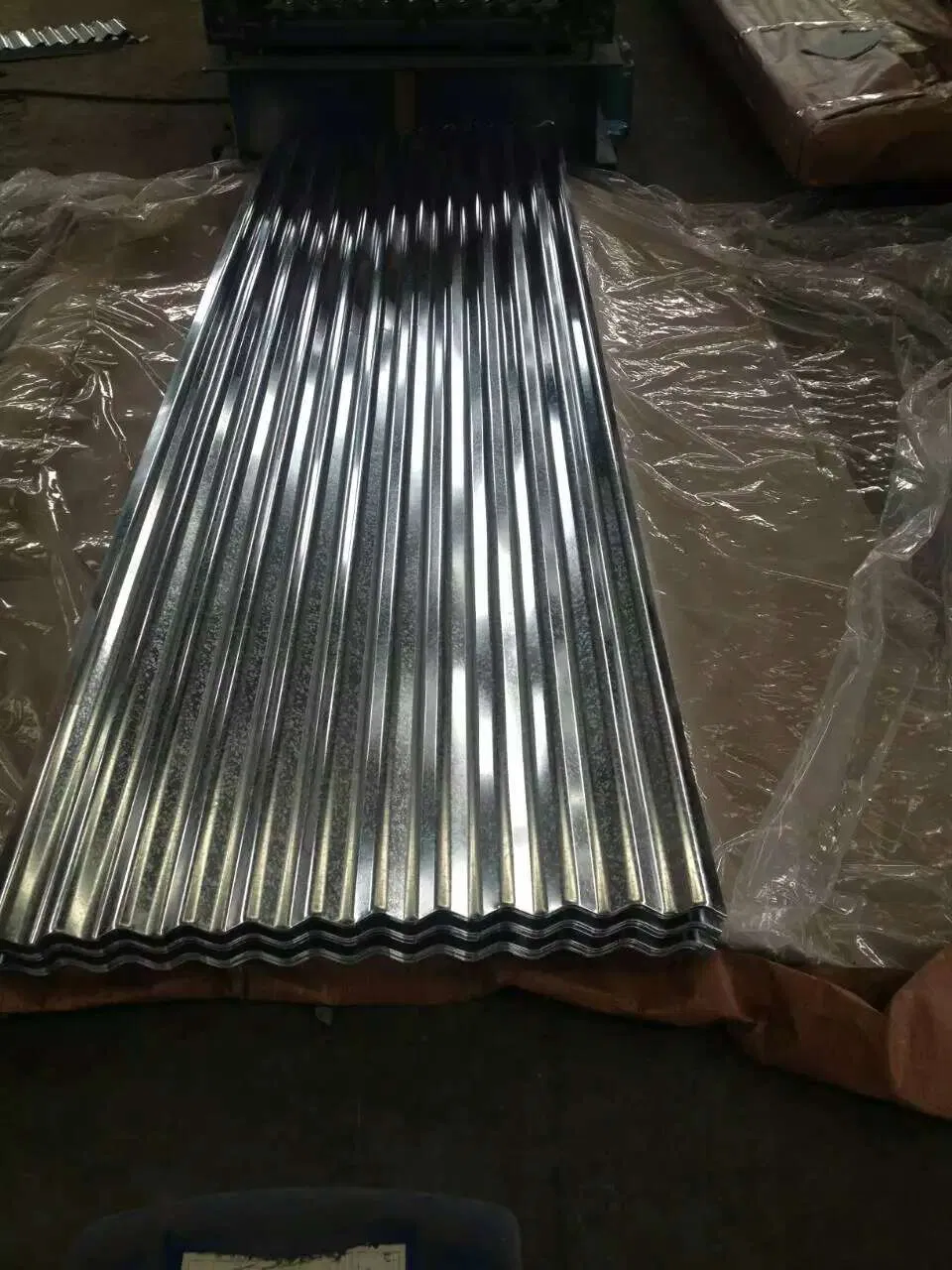

Zinc Coated Corruaged Roof Tile/Galvalume Water Wave Steel Sheet
1. Galvanized corrugated roofing sheet introduction:Galvanized corrugated sheet is one of the most corrosion resistant roofing materials which is being applied in the architectural field and siding panel market. they have longer life than the traditional galvanized finish products. The corrosion res......
Send Inquiry
Product Description
1. Galvanized corrugated roofing sheet introduction:
Galvanized corrugated sheet is one of the most corrosion resistant roofing materials which is being applied in the architectural field and siding panel market. they have longer life than the traditional galvanized finish products. The corrosion resistance of this galvanized corrugated sheet will make this the ideal product for almost any application, by marrying the lightweight aspect and advantage of zinc coating, with less chance of the material corroding at the normal stress points, and areas where rusting can start.
2. Galvanized corrugated sheet main structure:
Galvanized corrugated sheet is carbon steel sheet coated with zinc coating by a continuous hot-dip process described in Production Methods. Besides, the raw material could also be galvalume steel and prepainted steel (GI,GL,PPGI,PPGL).
3. Galvanized corrugated sheet application scope:
Galvanized corrugated sheet is widely used for commercial, agricultural, and industrial purposes, however, it is now also being recognized as an excellent form of residential roofing. Galvanized steel sheet is also known as sinusoidal, corrugated iron or wriggly tin.
4. Galvanized corrugated sheet main features:
1)Combine the excellent barrier corrosion protection of aluminum with the galvanic protection of zinc.
2)Preferred product for long-term resistance to atmospheric corrosion
3)The superior corrosion resistance of galvanized steel sheet is achieved by the presence of microscopic zinc-rich and aluminum-rich areas within the coating.
4)Easy to install, high strength and lower costs
5)Galvanized corrugated sheet is widely used as walls or roofs for factories, warehouses, garages, exhibition centers
Galvanized corrugated sheet is one of the most corrosion resistant roofing materials which is being applied in the architectural field and siding panel market. they have longer life than the traditional galvanized finish products. The corrosion resistance of this galvanized corrugated sheet will make this the ideal product for almost any application, by marrying the lightweight aspect and advantage of zinc coating, with less chance of the material corroding at the normal stress points, and areas where rusting can start.
2. Galvanized corrugated sheet main structure:
Galvanized corrugated sheet is carbon steel sheet coated with zinc coating by a continuous hot-dip process described in Production Methods. Besides, the raw material could also be galvalume steel and prepainted steel (GI,GL,PPGI,PPGL).
3. Galvanized corrugated sheet application scope:
Galvanized corrugated sheet is widely used for commercial, agricultural, and industrial purposes, however, it is now also being recognized as an excellent form of residential roofing. Galvanized steel sheet is also known as sinusoidal, corrugated iron or wriggly tin.
4. Galvanized corrugated sheet main features:
1)Combine the excellent barrier corrosion protection of aluminum with the galvanic protection of zinc.
2)Preferred product for long-term resistance to atmospheric corrosion
3)The superior corrosion resistance of galvanized steel sheet is achieved by the presence of microscopic zinc-rich and aluminum-rich areas within the coating.
4)Easy to install, high strength and lower costs
5)Galvanized corrugated sheet is widely used as walls or roofs for factories, warehouses, garages, exhibition centers
| Item | Galvanized Corrugated Steel Sheet |
| Standard | ASTM A653M-04/JIS G3302/DIN EN10143/GBT 2518-2008 |
| Base Plate | Cold steel coil |
| Zinc Coating | Z40-Z275G/m2 |
| Thickness | 0.13-1.5mm |
| Width | 750-1250mm(before corrugation) 600-1000mm (after corrugation) |
| Length | Max 11800mm |
| Number of corrugation | 9-12 |
| Products Feature | water resistance,light weight,easy installation,aesthetic,high tensile |
| Packing | standard export water-proof package with steel strips fixed |
| Delivery time | 15-20 working days after deposit |
| Weight per Steel Pallet | 3 Metric Tons |
| MOQ | 5 Metric Tons |
| Application | exterior and interior wall,roofs,and soffits |
