Product Description
Wear resistant steel plate has high wear resistance and good impact resistance, capable of cutting, bending, welding, can take welding plug welding, bolt connection and other structures are connected with time in the maintenance process, convenient, widely used in metallurgy, coal, cement, electric power. Glass, mining, building materials, tiles and other industries, compared with other materials, has a very high price, has attracted more and more industries and manufacturers of all ages.
Product Description
NM400 NM500 wear resistant steel plate
Alloy Steel Sheet / Alloy steel plate
Standard:ASTM,GB,DIN,EN,JIS,etc
Material:Q235,Q345,A36,SS400,CCSA,S235J0,S235JR,etc
Production:Hot rolled,Cold rolled
Surface:Galvanized,Coating
Thickness:8~150mm
Width:1000~4000mm
Length:1~12m
Description | Wear Resistant Plate | ||
HRC | 5-120mm | ||
Related Material | NM360,NM400,NM450,NM500,NM550,NM600,NM650 | ||
Specifications | Thickness:8mm-150mm | ||
width :1-4 meters . | |||
Length:1-12 meters . | |||
Price Term | FOB, CFR, CIF | ||
Main Market | Europe,South America, Africa ,Oceania ,such as :USA,Germany,India,Dubai,Iraq,Vietnam,Ireland,Singapore,and else | ||
Payment Term | T/T, L/C | ||
Delivery Time | within 7-35 days after received the 30% deposit in advance. | ||
Package | Export standard package: bundled with steel straps or be required; | ||
Application | Wear-resistant steel with high wear resistance and good impact performance, capable of cutting, bending, welding, etc., can be taken welding, plug welding, bolting and other ways to connect with other structures, with the province when in the course of the repair site , convenient, widely used in metallurgy, coal, cement, electricity, glass, mining, building materials, bricks and other industries, compared with other materials. | ||
GB | 15,20,25,30,35,40,45,50,55,60,65,70,Q195,Q215,Q235,Q255,Q275, Q295,Q345,08F,10F,15F,08,08Al,10,Q420,Q460,Q500,Q550,Q620, Q690,A32,D32,E32,F32,A36,D36,E36,F36,A40,D40,E40,F40,20G, 22MnG,LT,XT1,XT2,HP245,HP265,HP295,HP325,HP345,HP365, 45Mn2,27SiMn,40B,45B,50B,15Cr,20Cr,15CrMoG,16MnG,19MnG, 13MnNiCrMoNbG,12Cr1MoVG,16MnDR,15MnNiDR,09MnNiDR, 20R,16MnR,15MnNbR,15MnVR,15MnVNR,18MnMoNbR, 13MnNiMoNbR,15CrMoR,07MnCrMoVR,07MnNiMoVDR, 12MnNiVR,etc |
ASTM | ASTM A414/A414M A/B/C/D/E/F/G,ASTM A515/A515M 415/450/485, ASTM A516/A516M 380/415/450/485,ASTM A204/A204M A/B/C, ASTM A537/A537M 1/2/3,ASTM A202/A202M A/B ASTM A203/A203M A/B/D/E/F,ASTM A225/A225M C/D, ASTM A737/A737M B/CASTM A353/A353M, ASTM A387/A387M 2/12/11/12/22L/21/21L/5/17/9/91, ASTM A517/A517M A/B/C/E/F/H/J/M/P/Q/S/T, ASTM A533/A533M A/B/C/D, ASTM A542/A542M A/B/C/D/E,ASTM A543/A543M B/C, ASTM A782/A782M,ASTM A844/A844M,etc |
JIS | SGV410,SGV450,SGV480,SPV235/315/355/410/450/490, SB410/450/480,SG255,SG295,SG325,SG365,SLA235A/235B/325A /325B/365/410,SB450M/480M,SQV3A/3B,SEV245/295/345, SL2N255,SL3N255/275/440,SL5N590,SL9N520/590,SCMV1/2/3/4 /5/6,SCMQ4E/4V/5V,SBV1A/1B/2/3,SQV1A/1B/2A/2B,SS330, SS400,SS490,SS540,SM400A/400B/400C/490A/490B/490C/490YA /490YB/520B/520C/570,SMA400AW/400AP/400BW/400BP/400CW /400CP/490AW/490AP/490BW/490BP/490CW/490CP/570W/570P, SPA-H,SPA-C,etc |
DIN | P245NB,P265NB,P310NB,P355NB,X6CrNi1811,X3CrNiN1811, X8CrNiTi1810,X6CrNiMo1713,X3CrNiMoN1713,X8CrNiNb1613, X8CrNiMoNb1616,X8CrNiMoVNb1613,X5NiCrAlTi3120, X8NiCrAlTi3221,X5NiCrAlTi3120RK,P235GH,P265GH,P295GH, P355GH,16Mo3,13CrMo4-5,10CrMo9-10,11CrMo9-10,etc |
EN | S185(1.0035),S235J0(1.0114),S235JR(1.0038),S235J2(1.0117), S275JR(1.0044),S275J0(1.0143),E295,S355J0(1.0553), E335(1.0060),S235J2W(1.8961),S355J2W(1.8965),P235GH, P265GH,P295GH,P355GH,16Mo3,13CrMo4-5(1.7335),10CrMo9-10, 12Ni14,X12Ni5,X8Ni9,etc |
Alloy steel sheet / Alloy steel plate | |
Classification by thickness | Thin steel plate:<4mm Thick steel plate:4mm~60mm Super-thick steel plate:60mm~115mm |
Classification by use | Bridge steel plate Steel boiler plate Ship-building steel plate Armour plate Automobile leaf-spring Roof panel Structural plate Electrical steel plate Steel spring plate other |
Classification by structure | Steel plates for pressure vessels Steel plates for welding gas cylinder Steel plates for boilers Steel plates for bridge building Steel plates for automotive frame |
Classification by alloy steel | 1)classification by concentration of alloying element: Low alloy steel Medium alloy steel High alloy steel
2)classification by main alloying element: Chrome steel (Cr-Fe-C) Chrome-Nickel steel (Cr-Ni-Fe-C) Manganese steel (Mn-Fe-C) Silicon-Manganese steel (Si-Mn-Fe-C)
3)classification by sample normalized or as-cast structure Pearlitic steel Martensitic steel Ferrite steel Austenite steel Ledeburitic steel
4)classification by use Structural alloy steel Alloy tool steel Special property steel |
Classification by methods of production | Hot rolled steel plate Cold rolled steel plate |
Classification by surface feature | Galvanized steel plate (Hot-dipped galvanized plate,electrogalvanizing plate) Tin plate Clad steel plate Color coated steel plate |

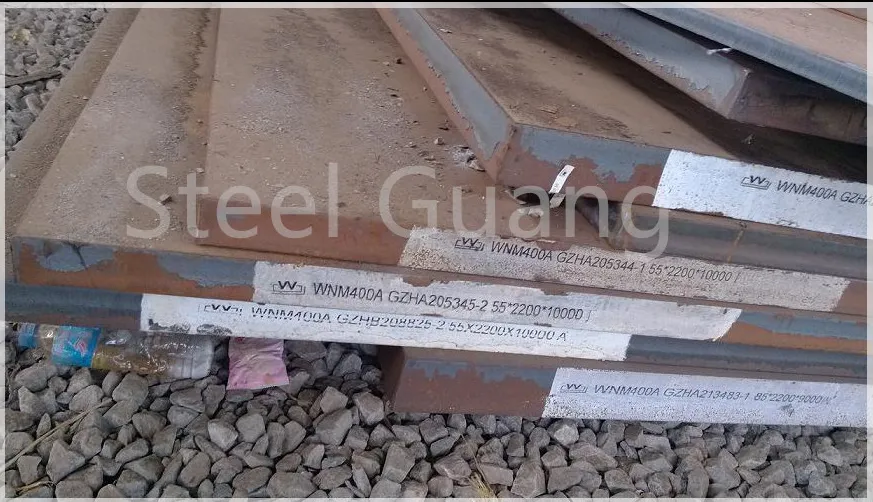

| Standard: wear resistant alloy steel plate Grade : NM360, NM400, NM500, NM550, WNM360, WNM400, WNM450, WNM500 |
| Thickness : 8mm-150mm Width : 1000mm-4000mm Length : 1000mm-20000mm |
| MOQ: 1 PC Product type : Steel plate Delivery time : Promptly ( Stock) or 10-40 days (Production) Payment Terms: L/C, T/T, etc Stock : Available MTC: Available |
| Delivery condition: Q+T |
2. Steel grades and chemical composition(MAX, %):
| C | SI | MN | P | S | CR | NI | MO | TI | B | ALS | |
| NM300 | 0.23 | 0.70 | 1.60 | 0.025 | 0.015 | 0.70 | 0.50 | 0.40 | 0.050 | 0.0005-0.006 | 0.10 |
NM360 | 0.25 | 0.70 | 1.60 | 0.025 | 0.015 | 0.80 | 0.50 | 0.50 | |||
| NM400 | 0.30 | 0.70 | 1.60 | 0.025 | 0.010 | 1.00 | 0.70 | 0.50 | |||
| NM450 | 0.35 | 0.70 | 1.70 | 0.020 | 0.010 | 1.10 | 0.80 | 0.55 | |||
| NM500 | 0.38 | 0.70 | 1.70 | 0.020 | 0.010 | 1.20 | 1.00 | 0.65 |
3. Mechanical properties:
| Tensile strength(MPa) | Elongation(%) | (-20)AKV(J) | Hardness(HB) | |
| NM300 | 1000(min) | 14(min) | 24(min) | 270-330 |
| NM360 | 1100(min) | 12(min) | 24(min) | 330-390 |
| NM400 | 1200(min) | 10(min) | 24(min) | 370-430 |
| NM450 | 1250(min) | 7(min) | 24(min) | 420-480 |
| NM500 | -- | -- | -- | 470(min) |
Wear resistant steel plate, NM400, NM500,
More Details please send us the email to us!

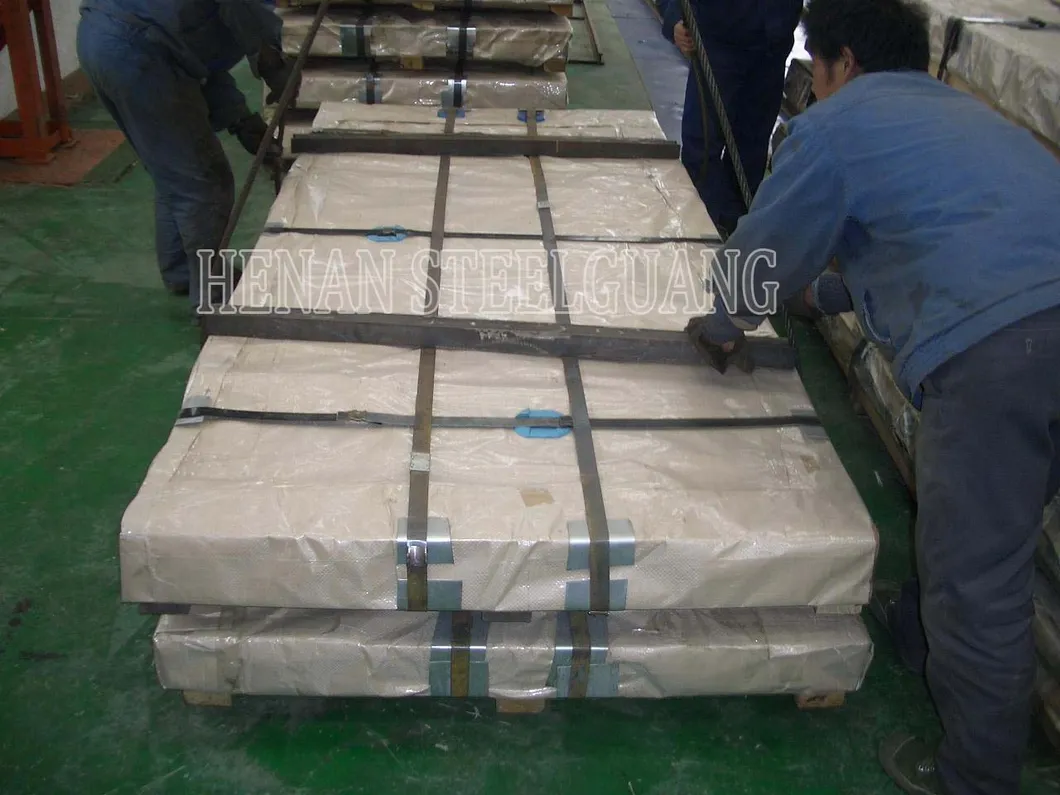

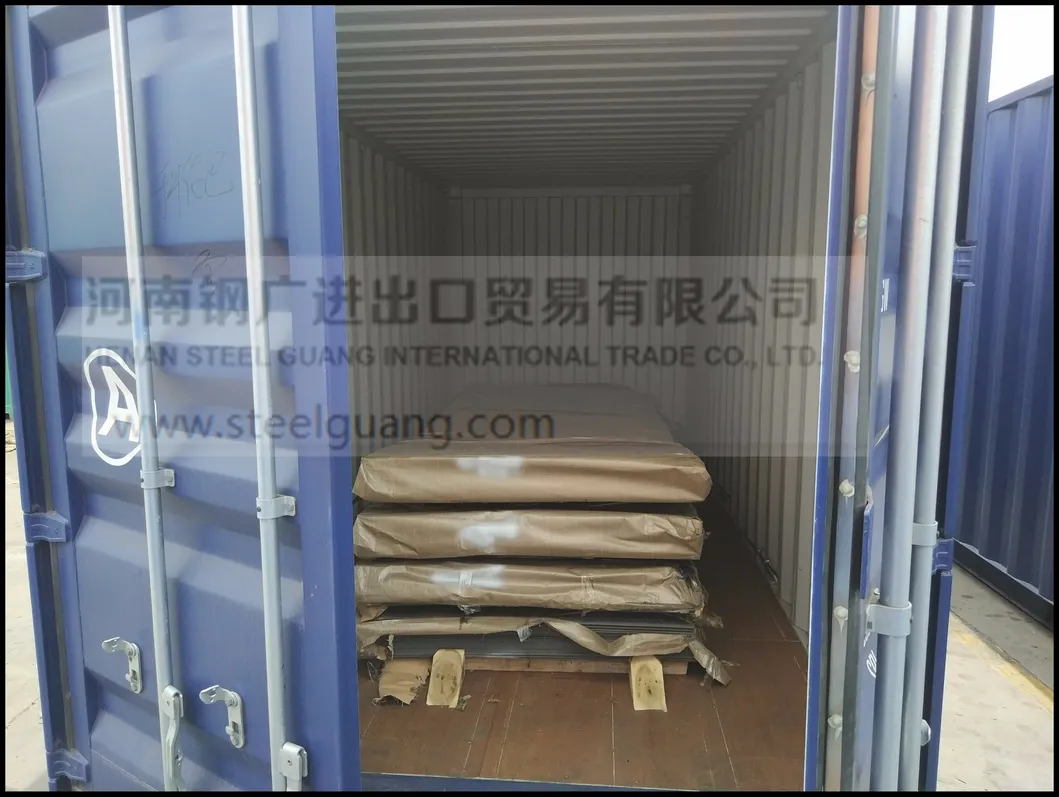

Packaging & Shipping
Packaging | Standard seaworthy export packing. |
|---|---|
Shipping packaging | Bundled with firm steel straps, easy for loading and unloading. |
Shipping time | 7-15 work days after delivery |
|---|---|
Shipping way | BY SEA,BY TRAIN |
Shipping port | CHINA MAIN PORT |

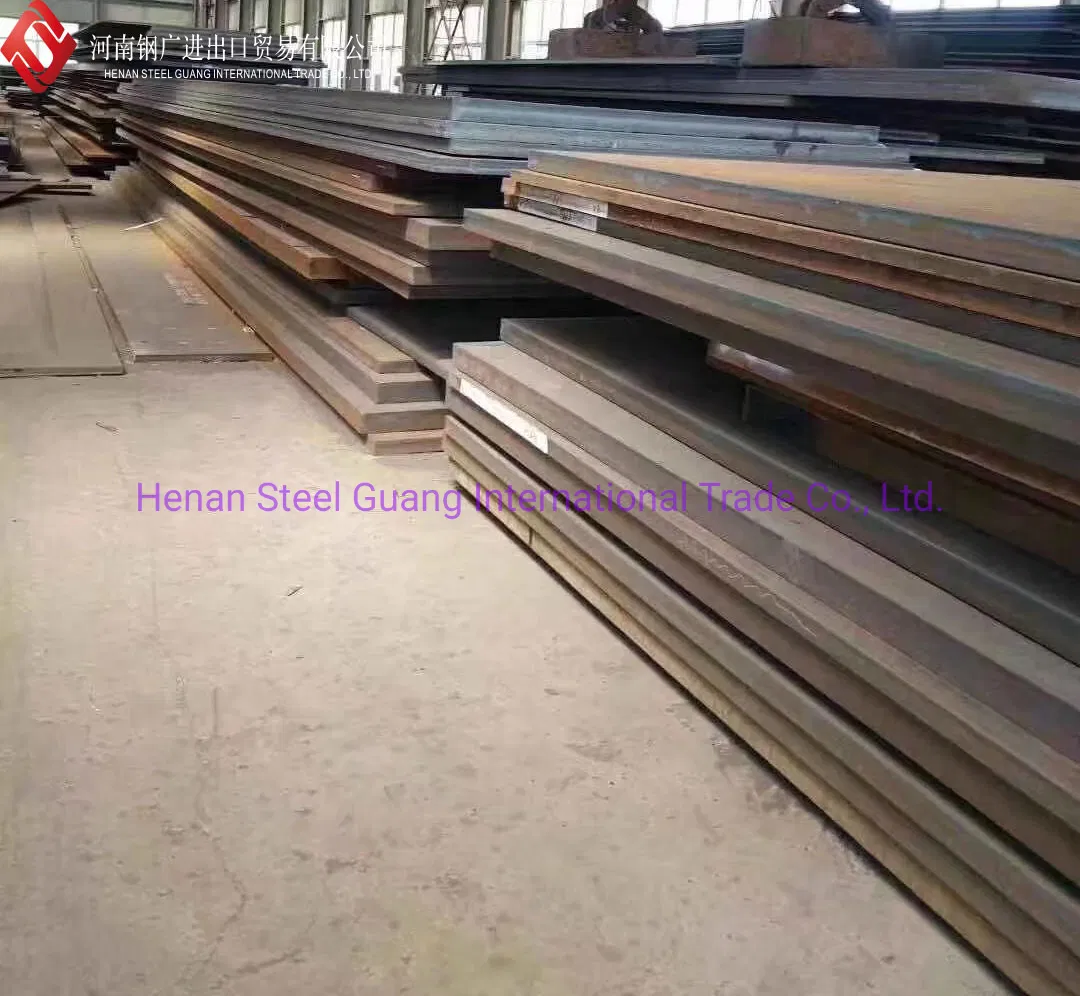

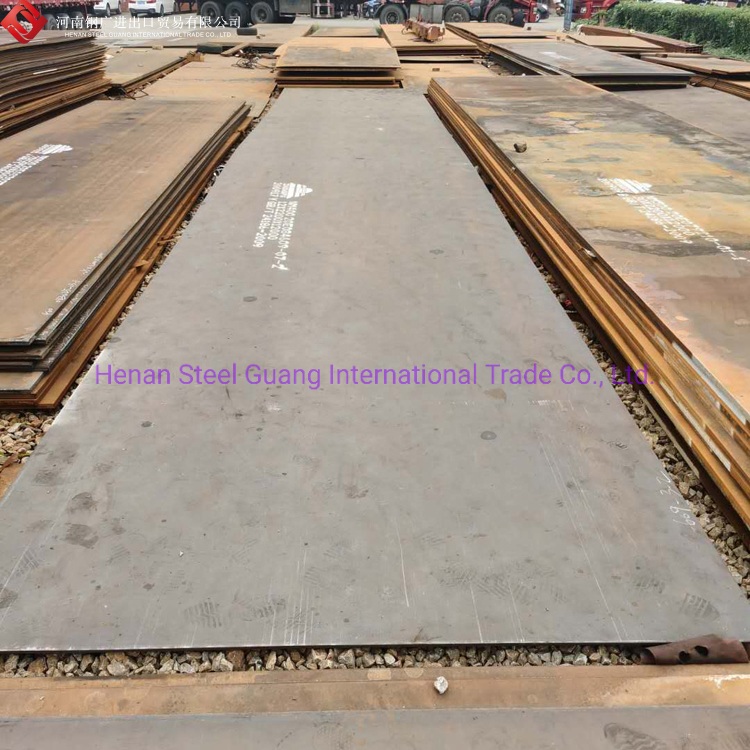

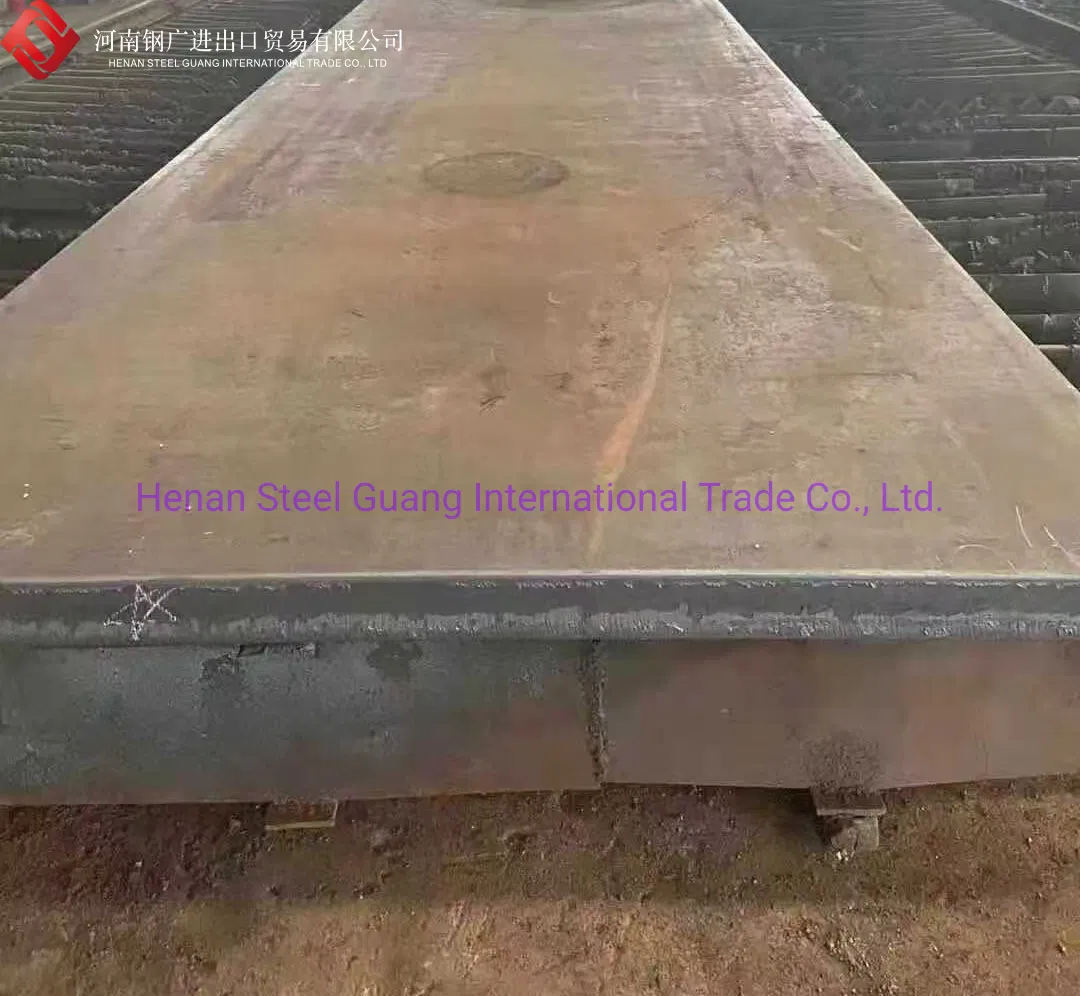

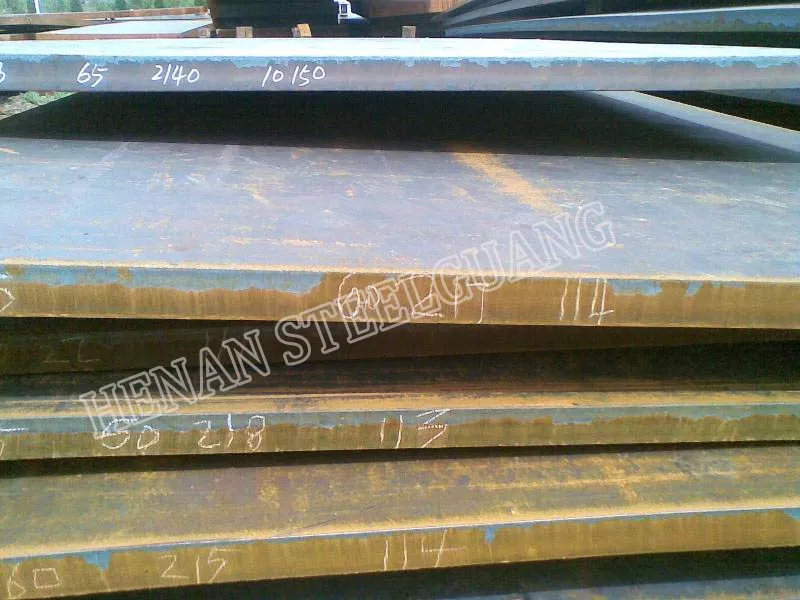

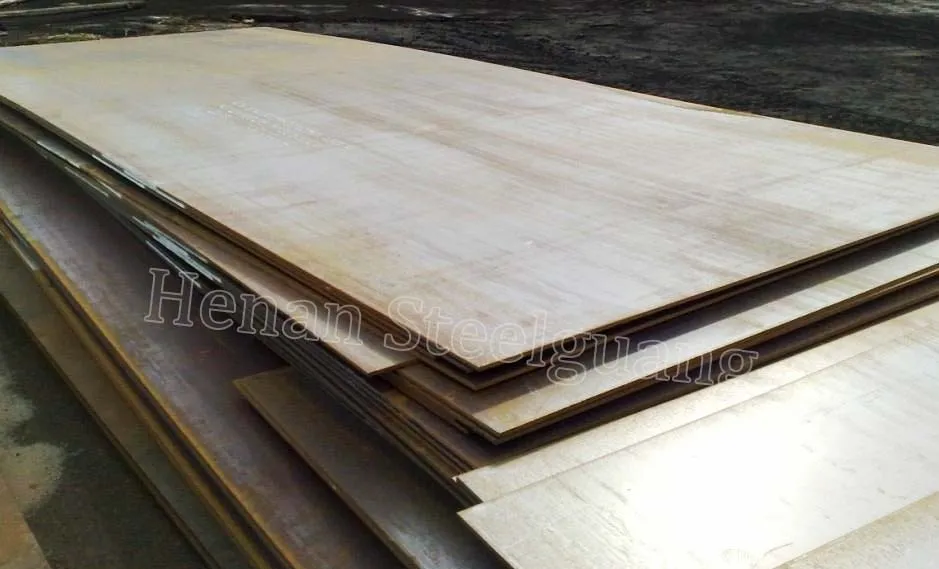

Details picture
Our advantages:
1. More than 10 years Professional steel export service. Have own production line.
2. Advanced CNC machine.
3. Low cost&Quick Delivery&High quality.
4. Integrity, strength and quality of products recognized by the industry.
5. Most of our clients are international, the domestic well-known enterprises.
6. Has a complete scientific quality management system.
7. Can meet any requirements for all kinds of sheet metal processing with advanced equipment.

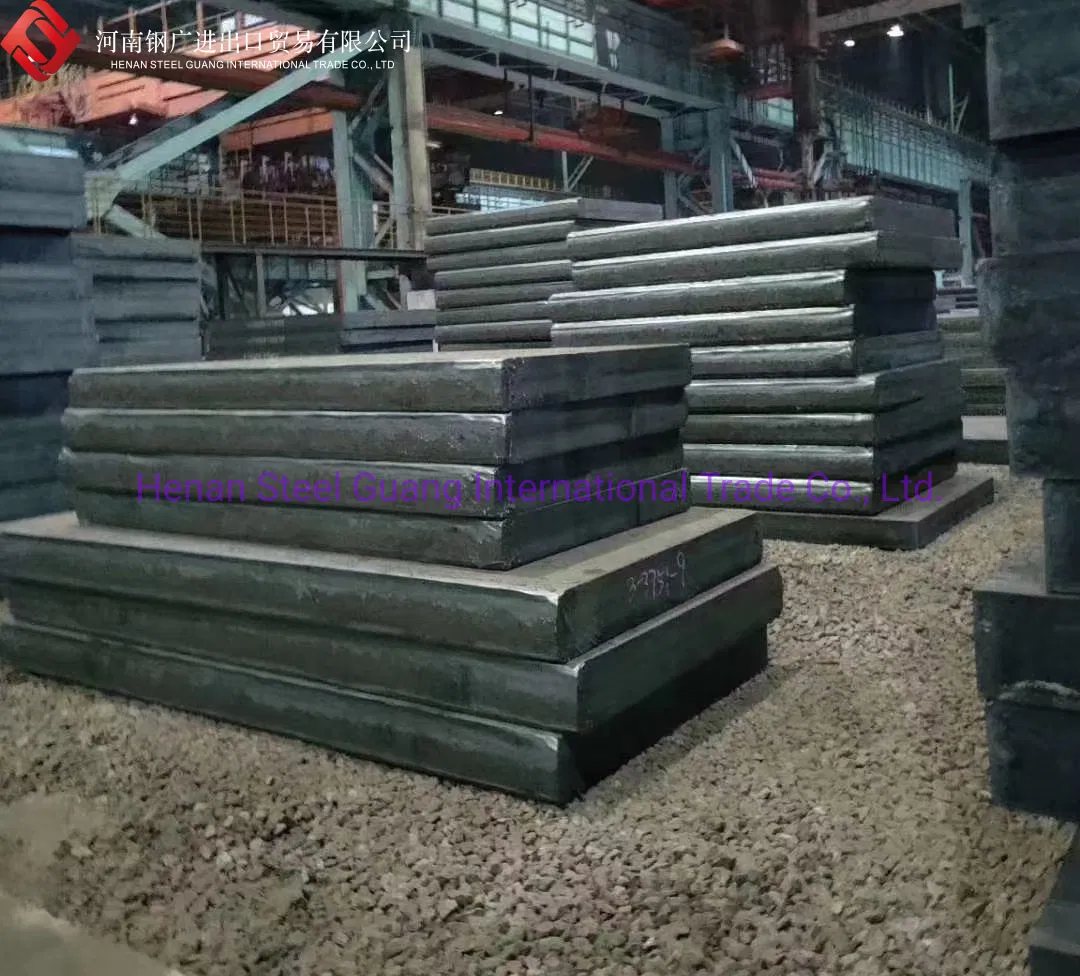

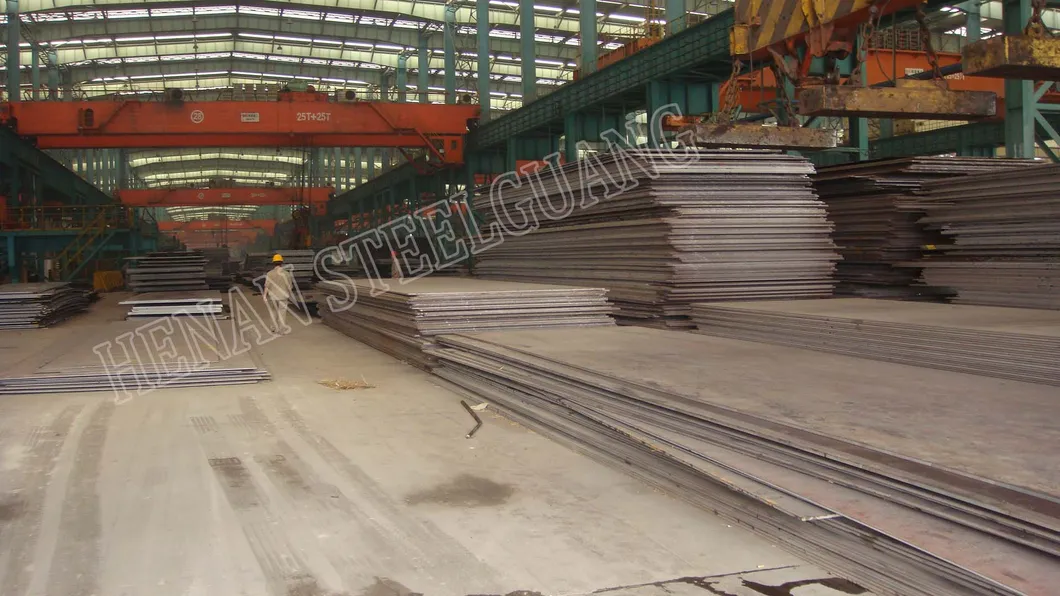

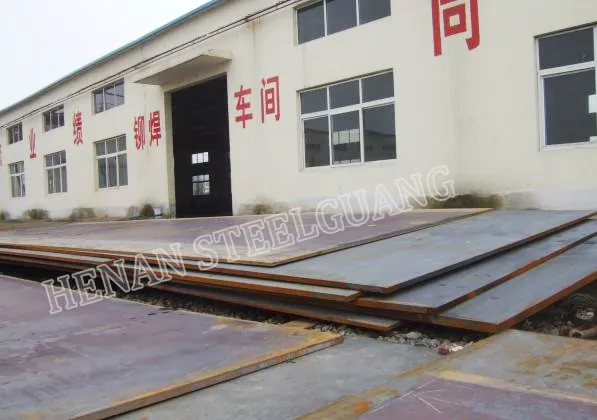

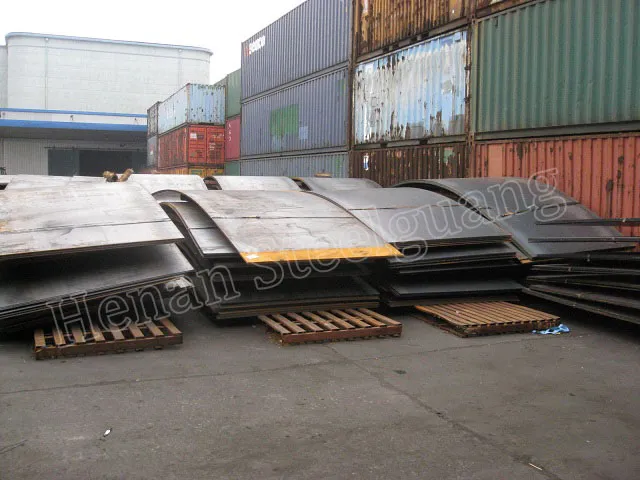

Workshop
FAQ
Q1: How can I get a sample to check your metal work quality?
Answer: After price confirmation, you can require for samples to check our quality. We will provide you sample for free (value under USD35), as long as you afford the express freight.
Q2: How long can I expect to get the metal work sample?
Answer: After you pay the sample charges(if there is) and send us confirmed drawings, the sample will be ready for delivery in 5-7 working days. The samples will be sent to you via DHL, FedEx,UPS,TNT or EMS. It should arrive in 3-5 workdays. You can use your own express account or prepay us if you don't have any account.
Q3: What about the leading time for metal work mass production?
Answer: Honestly, it depends on the order quantity. Normally, 15 workdays to 30 workdays after your deposit if no the samples are confirmed.
Q4: What will we do if the metal work quality is not ok ?
Answer: If the quality problem is caused by our mistake, we will make replacement order for free or pay the back product charge and handling charge back to you.
Application
