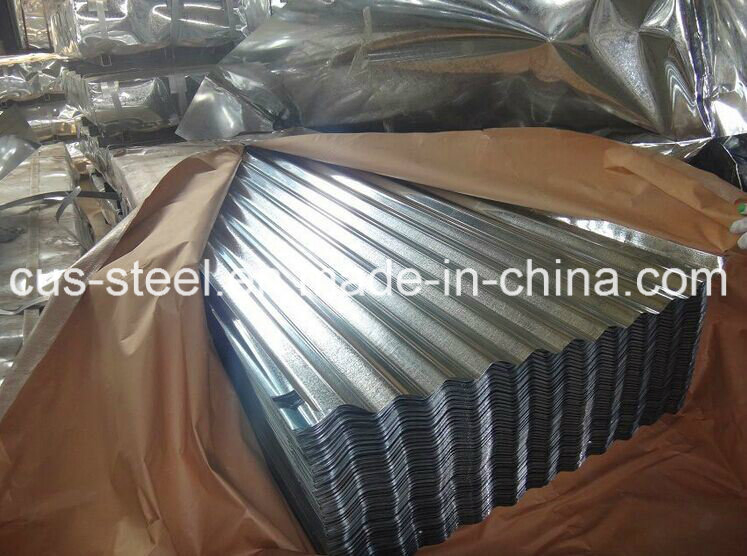

Ethiopia SGS Corrugated Galvanized Steel Coil for Roofing Sheet
Hot dip Galvanised corrugated roof sheets/ galvanized steel coil/Galvanized roofing tileSpecification:Gauge Thickness: 0.13mm and 0.8mmWeight: Such as 0.5mm thickness - 4.78kg/m2, 0.7mm thickness - 6.22kg/m2Zinc coating mass: 40g-180gNOTE: When used in roof applications, construction can be safely u......
Send Inquiry
Product Description

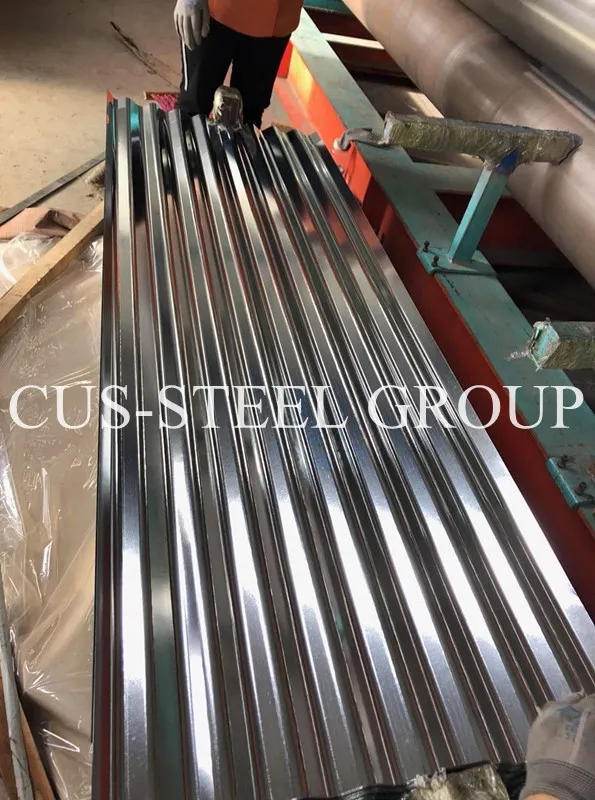

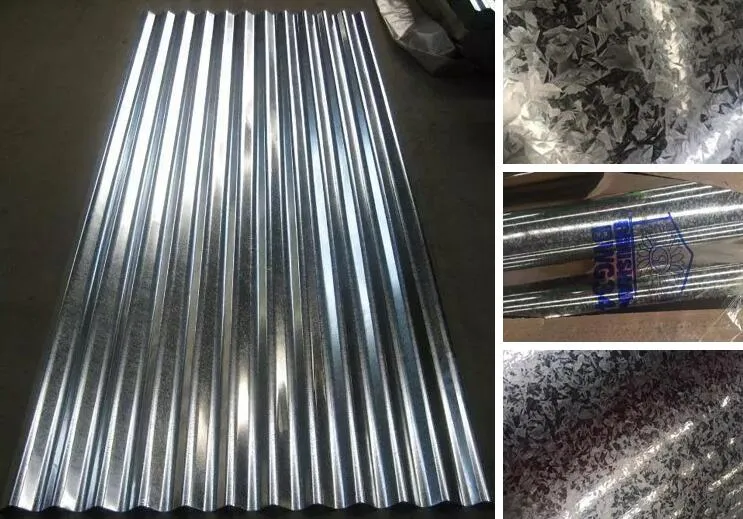

Hot dip Galvanised corrugated roof sheets/ galvanized steel coil/Galvanized roofing tile
Specification:
Gauge Thickness: 0.13mm and 0.8mm
Weight: Such as 0.5mm thickness - 4.78kg/m2, 0.7mm thickness - 6.22kg/m2
Zinc coating mass: 40g-180g
NOTE: When used in roof applications, construction can be safely undertaken down to a 10 degree pitch using conventional nail fasteners on top of profile.
Application: Roof or Wall (Horizontal or Vertical)
External Finish: Polyester paint or Galvanised
Internal Finish: Grey Polyester or Galvanised
External Face: Such as Corrugated 13/3 profile (13 profiles of 3 inches when lapped), 18mm profile height, 76mm pitch
Standard Width: Such as 820mm 825mm 900mm when lapped
Max Length: 8000mm
Minimum pitch: 10 degrees

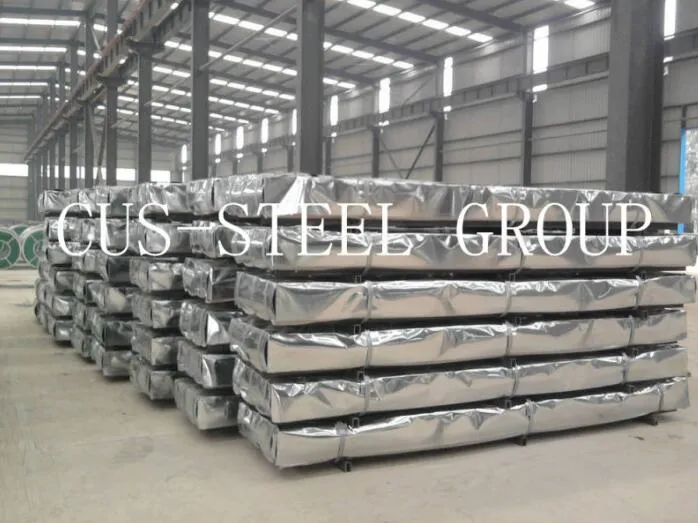

Packaging Details:
Standard sea worthy export packing:

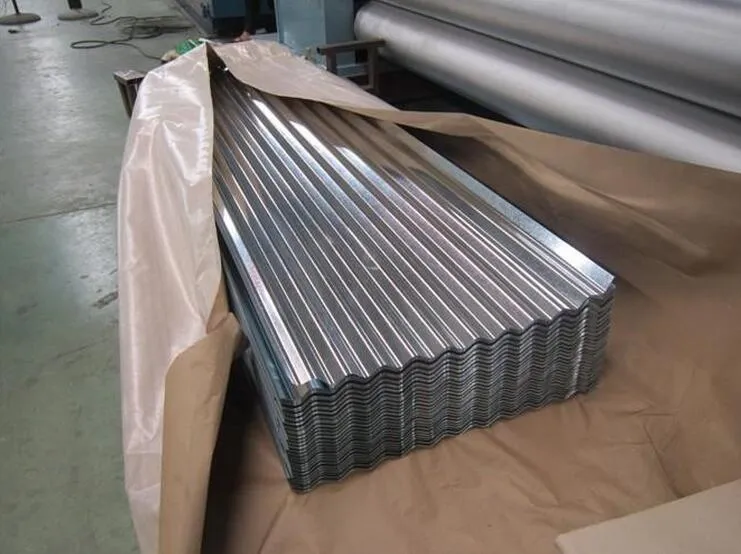

1)Water proof paper covered with steel sheet on the top of products;
2)Bundle by steel strip with iron pallet;
3)Water proof paper covered by whole steel sheet;
4)Bundel by steel strip with iron pallet.
Product Specifications
Benefits:
Robust cost effective sheeting giving a traditional look.
Light in weight
Fast and easy to fit

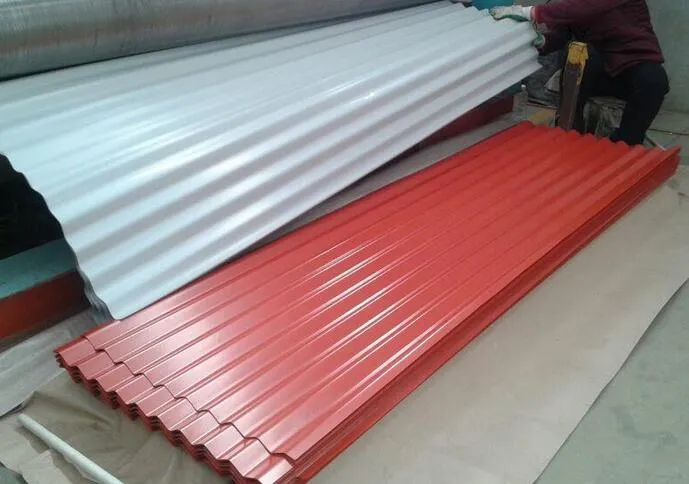

Available in range of traditional colours(( if need the color corrugated sheet))
Uses:
Industrial, agricultural, commercial and domestic roofing and cladding. Can be used as single skin sheeting and cladding, over clad of an existing roof or part of a built up, insulated system.
Iron and steel are not naturally durable.
They tend to corrode in the Presence of water and oxygen and revert to reddish iron oxide or rust. Rust is a porous material and provides no protection against continuingcorrosion. On the other hand, the corrosion of zinc produces a relatively
Non-porous and stable coating which protects the metal from further attack. Moreover, if the zinc coating is scratched, the increase in volume of the corrosion product tends to seal the scratch. Although zinc is a less noble (more chemically reactive) metal than iron or steel, it is effectively more durable because of the way it corrodes. Effectively more durable because of the way it corrodes.
Specification:
Gauge Thickness: 0.13mm and 0.8mm
Weight: Such as 0.5mm thickness - 4.78kg/m2, 0.7mm thickness - 6.22kg/m2
Zinc coating mass: 40g-180g
NOTE: When used in roof applications, construction can be safely undertaken down to a 10 degree pitch using conventional nail fasteners on top of profile.
Application: Roof or Wall (Horizontal or Vertical)
External Finish: Polyester paint or Galvanised
Internal Finish: Grey Polyester or Galvanised
External Face: Such as Corrugated 13/3 profile (13 profiles of 3 inches when lapped), 18mm profile height, 76mm pitch
Standard Width: Such as 820mm 825mm 900mm when lapped
Max Length: 8000mm
Minimum pitch: 10 degrees
Packaging Details:

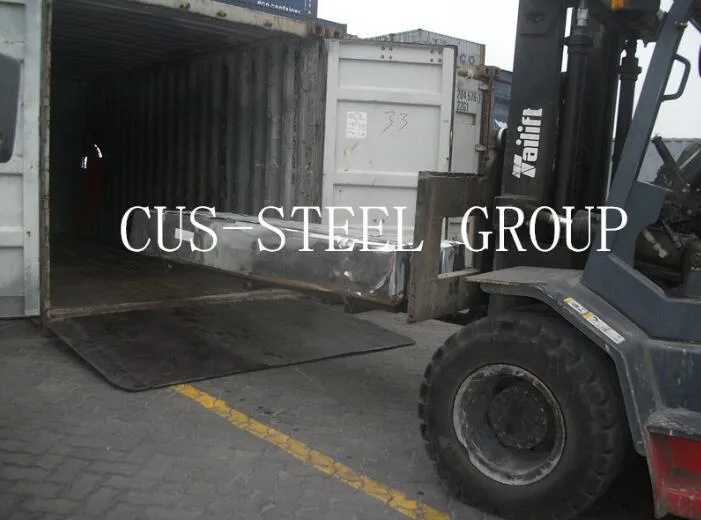

Standard sea worthy export packing:
1)Water proof paper covered with steel sheet on the top of products;
2)Bundle by steel strip with iron pallet;
3)Water proof paper covered by whole steel sheet;
4)Bundel by steel strip with iron pallet.
Product Specifications
Item | Corrugated Galvanized Steel Sheet |
Grade | SGCC SGCH HRB>85, SGLCC, DX51D+Z/AZ, |
Standard | ASTM A653M-04/JIS G3302/DIN EN10143/GBT 2518-2008 AS1397-2001, EN10215-1995, ASTM A792M-02, JIS G3321-1998 |
Basal plate | Cold rolled steel coil ,hot dipped galvanized/galvalume steel coil |
Zinc Coating | Z60-Z275G/m2, AZ30-150g/m2 |
Thickness | 0.13-0.8mm |
Width | 750-1250mm(before corrugation) 600-1000mm(after corrugation) |
Wave depth | 18(+/-2mm) |
Wave distance | 76(+/-2mm) |
Length | 1500-16000mm |
Number of corrugation | 7-12 |
Product feature | water resistance,light weight,easy installation,aesthetic,high tensile |
Packing | standard export water-proof package with steel strips fixed |
Delivery time | 10-25 days after confirmation |
Weight per Steel Pallet | 2-3 Metric Tons |
MOQ | 5 Metric Tons |
Application | exterior and interior wall,roofs,and soffits |
Qualification | ISO9001-2009 Certificate |
Advantages | 1.Design according to customers 'requirements 2.Production under ISO9001-2008 Quality System 3.Easy to be installed as light weight 4.Z60-275/AZ30-150 is suitable for many application 5.Our products are recyclable materials 6.The less construction period, the more using time. |
Benefits:
Robust cost effective sheeting giving a traditional look.
Light in weight
Fast and easy to fit
Available in range of traditional colours(( if need the color corrugated sheet))
Uses:
Industrial, agricultural, commercial and domestic roofing and cladding. Can be used as single skin sheeting and cladding, over clad of an existing roof or part of a built up, insulated system.
Iron and steel are not naturally durable.
They tend to corrode in the Presence of water and oxygen and revert to reddish iron oxide or rust. Rust is a porous material and provides no protection against continuingcorrosion. On the other hand, the corrosion of zinc produces a relatively
Non-porous and stable coating which protects the metal from further attack. Moreover, if the zinc coating is scratched, the increase in volume of the corrosion product tends to seal the scratch. Although zinc is a less noble (more chemically reactive) metal than iron or steel, it is effectively more durable because of the way it corrodes. Effectively more durable because of the way it corrodes.
