ASTM Tp430 304 201 316L Stainless Steel Sheet

Product Description

Stainless steels are a family of iron based alloys that contain a minimum of 10.5% chromium (CR). The presence of chromium creates an invisible surface film that resists oxidation and makes the material passive or corrosion resistant (stainless). There are multiple families of stainless steel which are designed for various applications and uses. Stainless grades can be further modified to meet various processing, corrosion, temperature and strength conditions.

Type 430 (UNS S43000)
Description
Type 430 is a ferritic stainless steel with corrosion resistance approaching that of 304/304L stainless steel. This grade does not work harden rapidly and can be formed using both mild stretch forming, bending, or drawing operations. This grade is used in a variety of interior and exterior cosmetic applications where corrosion resistance is more important than strength. Type 430 has poor weldability compared to most stainless steels due to the higher carbon content and lack of stabilizing elements for this grade, which requires post weld heat treatment to restore the corrosion resistance and ductility. Stabilized grades such as Type 439 and 441 should be considered for welded ferritic stainless steel applications.

Chemical Composition
Chemical Composition (wt%) limits as specified in ASTM A240 and ASME SA240** Maximum, unless range is indicated AISI430 SUS430 1.4016 stainless steel sheet factory price

Mechanical Properties
Mechanical property requirements for annealed product as specified in ASTM A240 and ASME SA240

Physical PropertiesASTM TP430 304 201 316L Stainless Steel Sheet

Other common 300 series grade.

300 Series stainless steels are classified as austenitic, and are hardenable only by cold working methods. These grades of stainless have chromium (approx. 18 to 30%) and nickel (approx. 6 to 20%) as their major alloying additions. Type 304 is the most widely used alloy of all stainless steels. 300 Series Stainless steel alloys resist corrosion, maintain their strength at high temperatures and are easy to maintain.

Stainless steel 304/304L Grade :

Type 304/304L is the modern version of "18-8" stainless steel containing approximately 18% chromium and 8% nickel and is the most commonly specified stainless steel used throughout the world. Type 304/304L is a versatile, general purpose stainless steel with good resistance to atmospheric corrosion, and to many chemicals and food and beverages. These grades can be specified in the annealed condition where they have very good formability. Higher nickel versions can be specified to enhance multi-stage deep drawing characteristics. Higher strength, cold-worked conditions can also be specified for Type 304/304L for spring type applications. Type 304/304L is non-magnetic in the annealed condition but may become slightly magnetic as a result of cold working.

Type 304L can be dual certified as 304 when the composition meets the lower carbon limit of 304L and the slightly higher strength levels of 304. Type 304L should be specified for welded applications as the low carbon version eliminates chromium carbide precipitation and enhances the corrosion resistance in the as-welded condition.

Another common material Stainless steel 316/316L Grade :

Alloy 316/316L is molybdenum-bearing austenitic stainless steel. The higher nickel and molybdenum content in this grade allows it to demonstrate better overall corrosion resistant properties than 304, especially with regard to pitting and crevice corrosion in chloride environments. In addition, Alloy 316/ 316L provides excellent elevated temperature tensile, creep and stress-rupture strengths, as well as outstanding formability and weldability. 316L is the lower carbon version of 316 and is immune from sensitization; therefore, it is very frequently used in heavy gauge welded components.
Specifications: UNS S31600 / S31603

ASTM TP430 304 201 316L Stainless Steel Sheet

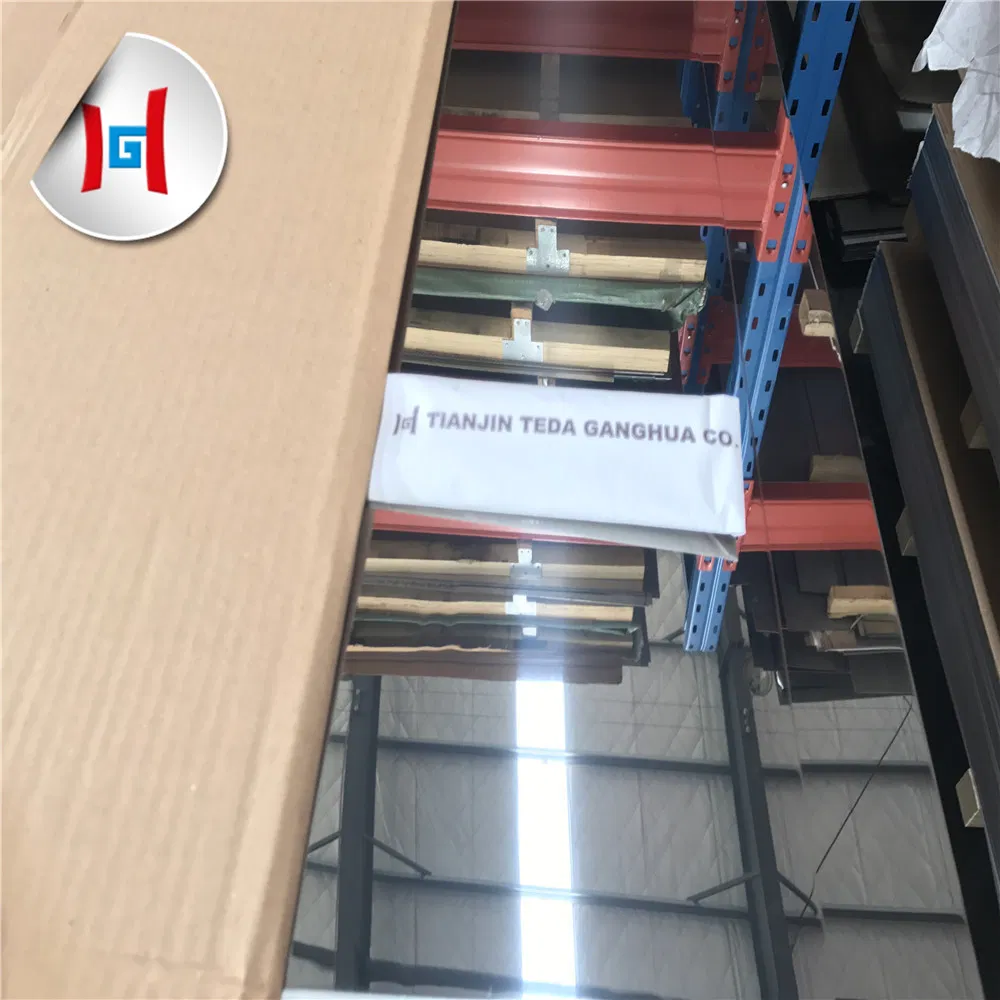

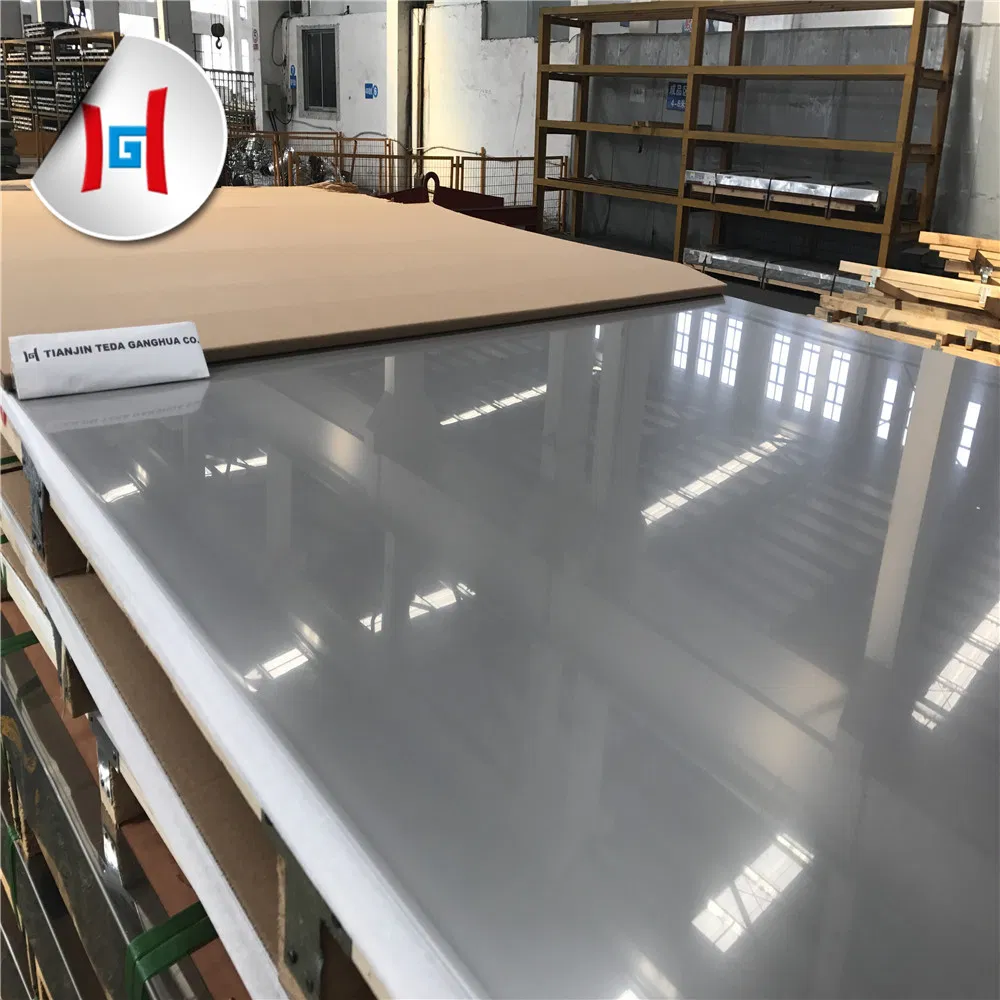

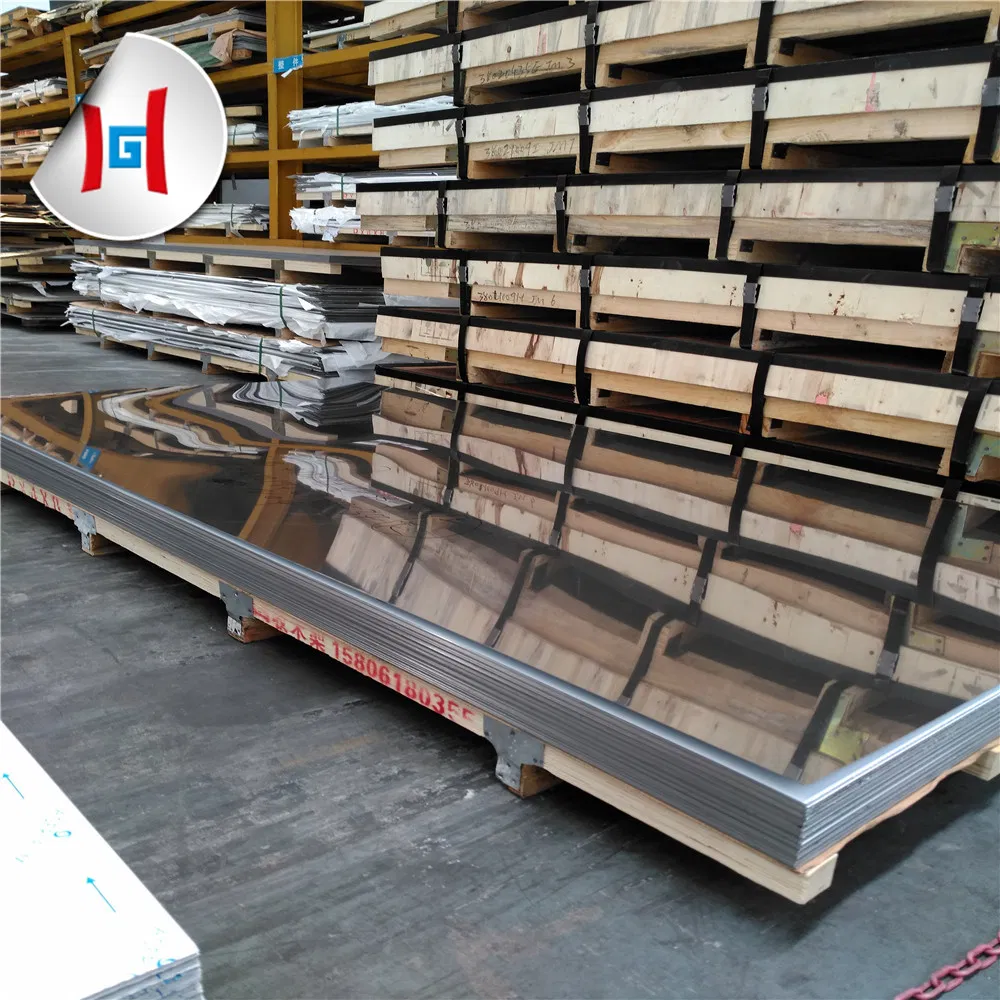

Products Show












ASTM TP430 304 201 316L Stainless Steel Sheet

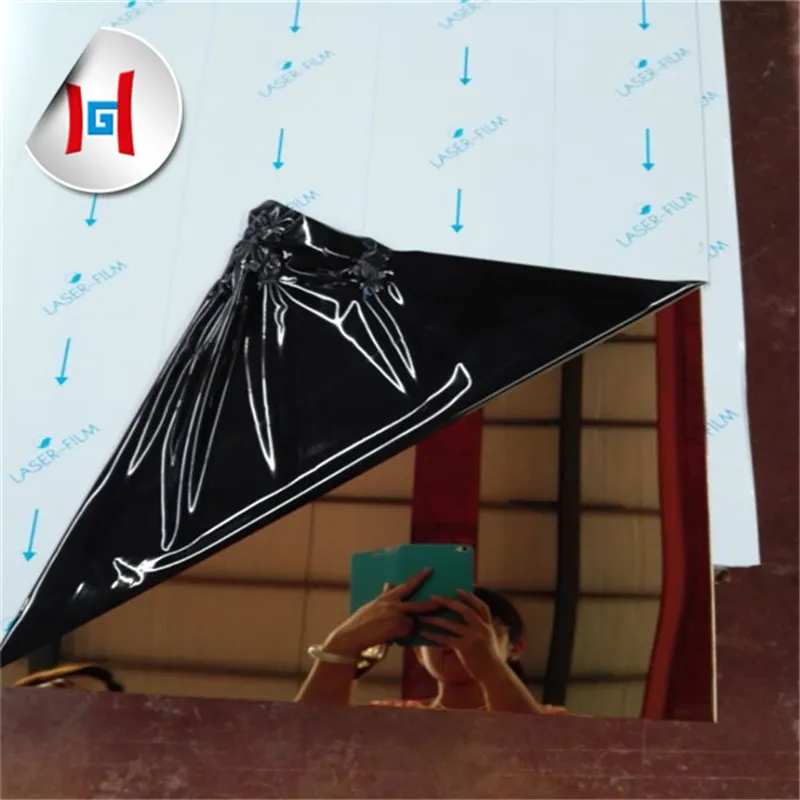

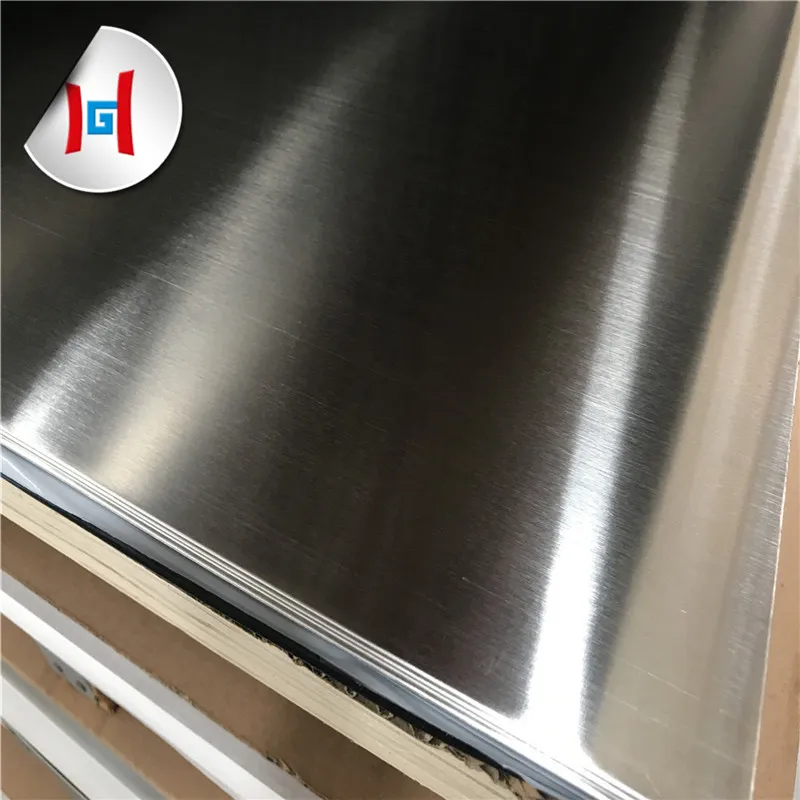

Other Common Surface finished Mirror, Golden mirror, Hairline, Bead Blast etc.







ASTM TP430 304 201 316L Stainless Steel Sheet
ASTM TP430 304 201 316L Stainless Steel Sheet
ASTM TP430 304 201 316L Stainless Steel Sheet

The reason why you choose Tianjin TEDA Ganghua
ISO&SGS&BV Audited company
Advanced production line and inspection equipment

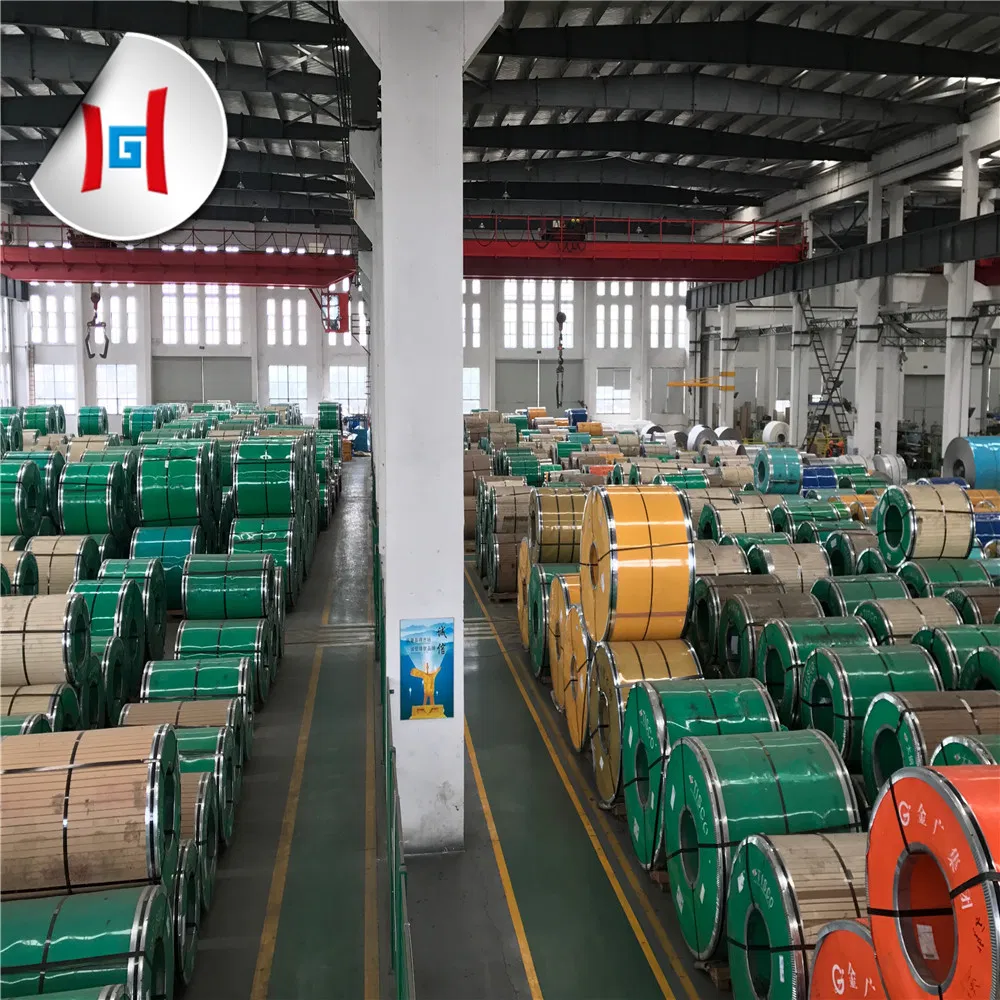

Finished Product Inventory: More Than 800 Tons.
Prompt delivery from stock.
Convenient transportation
We can offer competitive price with best quality&service
More than 10 years export experience
More than 20 years industry experience
More than 30 countries worldwide customers

If you are interested in our products, pls feel free to contact us, we will try our best to support Our business, expect our cooperation chance.
