Alloy Steel with Abrasion Resistant Chromium Carbide Overlay Wear Plate / Cco Plate
Alloy Steel with Abrasion Resistant Chromium Carbide Overlay Wear Plate /Cco Platesteel namewear resistant steel platesteel gradeNM360NM400NM450NM500NM550NM600thickness5-120mm5-140mm5-120mm5-100mm5-50mm6-50mmtensile strength/Mpa≥1100≥1200≥1250 enlongation/%≥12≥10......
Send Inquiry
Product Description
Alloy Steel with Abrasion Resistant Chromium Carbide Overlay Wear Plate /Cco Plate
| steel name | wear resistant steel plate | |||||
| steel grade | NM360 | NM400 | NM450 | NM500 | NM550 | NM600 |
| thickness | 5-120mm | 5-140mm | 5-120mm | 5-100mm | 5-50mm | 6-50mm |
| tensile strength/Mpa | ≥1100 | ≥1200 | ≥1250 | |||
| enlongation/% | ≥12 | ≥10 | ≥7 | |||
| -20ºC longitudinal impact value/J | ≥24 | ≥24 | ≥24 | ≥24 | ||
| hardness/HB | 330-390 | 370-430 | 420-480 | ≥470 | ≥530 | ≥570 |
2 Implementation of the standard: GB/T24186-2009 or technical agreement.
3 Delivery status: quenching or quenching+tempering
4 Chemicl Composition
| Grade | Thickness | C | Si | Mn | P | S | Cr | Ni | Mo | B | CEV | CET |
| Nm360 | 5-120mm | ≤0.26 | ≤0.70 | ≤1.60 | ≤0.025 | ≤0.010 | ≤1.40 | ≤1.50 | ≤0.60 | ≤0.004 | ||
| Nm400 | 5-140mm | ≤0.32 | ≤0.70 | ≤1.60 | ≤0.025 | ≤0.010 | ≤1.40 | ≤1.50 | ≤0.60 | ≤0.004 | ||
| Nm450 | 5-120mm | ≤0.32 | ≤0.70 | ≤1.60 | ≤0.025 | ≤0.010 | ≤1.40 | ≤1.50 | ≤0.60 | ≤0.004 | ||
| Nm500 | 5-100mm | ≤0.30 | ≤0.70 | ≤1.60 | ≤0.025 | ≤0.010 | ≤1.50 | ≤1.50 | ≤0.60 | ≤0.004 | ||
| Nm550 | 5-50mm | ≤0.37 | ≤0.70 | ≤1.60 | ≤0.025 | ≤0.010 | ≤1.50 | ≤1.50 | ≤0.60 | ≤0.004 | 0.71 | 0.48 |
| Nm600 | 6-(25)mm | ≤0.47 | ≤0.70 | ≤1.40 | ≤0.020 | ≤0.010 | ≤1.20 | ≤2.50 | ≤0.60 | ≤0.004 | ≤0.76 | ≤0.58 |
| 25-50mm | ≤0.47 | ≤0.70 | ≤1.40 | ≤0.020 | ≤0.010 | ≤1.20 | ≤2.50 | ≤0.60 | ≤0.004 | ≤0.87 | ≤0.61 |
5 Honor & Certificate
FAQ
Q: Are you trading company or manufacturer ?
A: We are Manufacturing and processing enterprises.Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment. Or 100% L/CAbout us :
Established in 2005, Fine Steel Share, the only listed company in steel industry, has built a powerful domestic steel supply chain in various fields, and is committed to pushing forward the transformation and upgrading of China's equipment industry.
Focusing on full varieties of high-strength steel, wear-resistant steel and the bulletproof steel.
We have established long-term and stable cooperative relations with leading domestic and global enterprises in the fields of construction machinery, heavy vehicle manufacturing, agricultural machinery, mining machinery, environmental protection equipment machinery and etc.

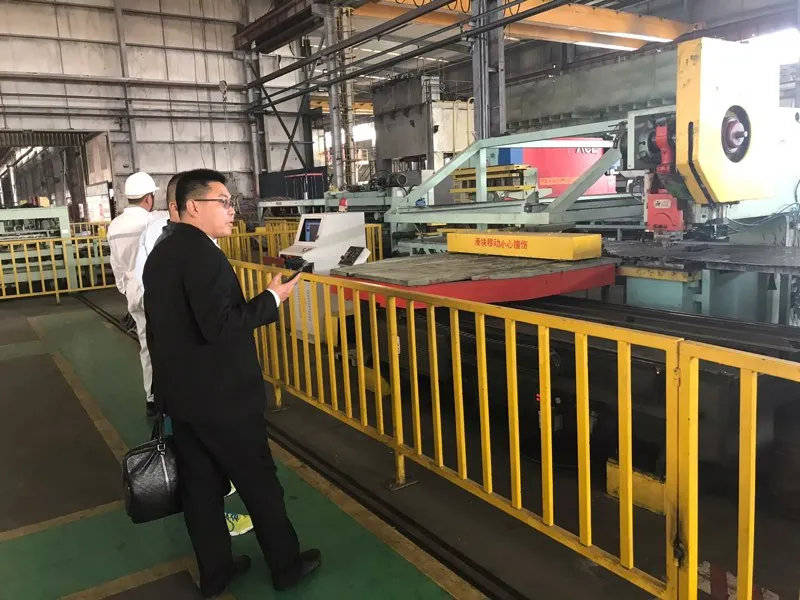

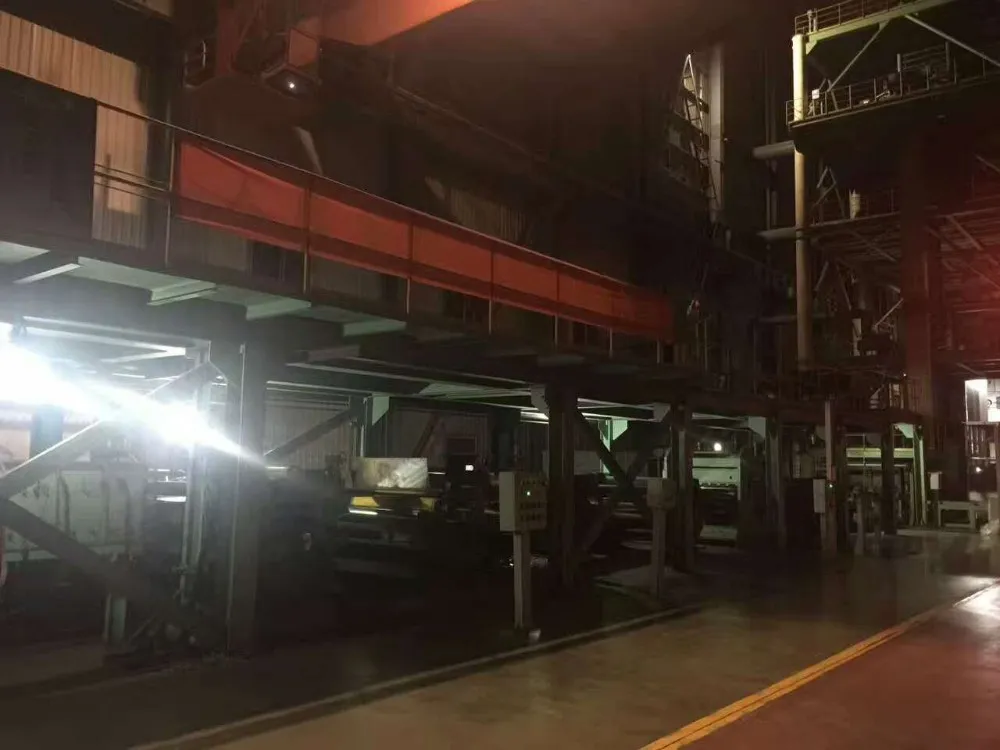

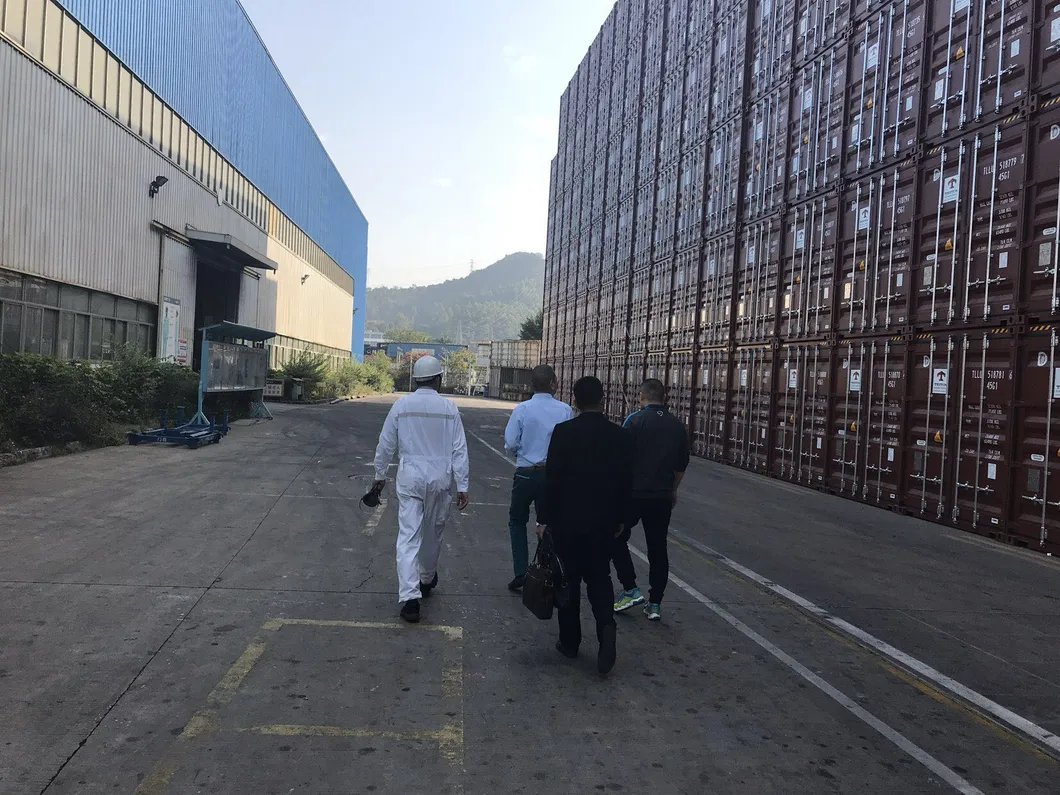

Factory Display
FAQ
Q1:What's your terms of payment?
A: 30% T/T in advance, 70% before delivery, We will show you the photos and package before you pay the balance.Q3: Do you provide samples ? is it free or extra ?
Q4: Can you provide Ceritificates for matericals?
A:Yes, we can supply MTC-Material Test Certificate.
Q5: Which port will the goods be shipped from ?
A: Qingdao,Shanghai,Tianjin according to principle of proximity.
Q6: How much experience do you have ?
A: FINE STEEL was established in 2005 and went public successfully in 2016, with more than 16 years full experience and a professional sales team.
Q7: Which market do you mainly deal in ?
A: Australia , Middle East , Southeast Asia , EU , South America
Q8: Do your company needs agencies ?
A: Yes, we are looking for agencies everywhere.
Q10: Can you produce the products as required ?
A: Yes, customized products are accepted. You need note us what you need on size, steel name, steel number, MOQ..
Application: Be highly used for the construction machinery, coal Machinery, Mining Machinery, Engineering Machinery, Scraper Conveyor
Corporate values: Integrity, pragmatism, innovation and win-winA: 30% T/T in advance, 70% before delivery, We will show you the photos and package before you pay the balance.
Q2: How long is your delivery time?
A: Generally it is 3-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4: Can you provide Ceritificates for matericals?A:Yes, we can supply MTC-Material Test Certificate.
Q5: Which port will the goods be shipped from ?
A: Qingdao,Shanghai,Tianjin according to principle of proximity.
Q6: How much experience do you have ?
A: FINE STEEL was established in 2005 and went public successfully in 2016, with more than 16 years full experience and a professional sales team.
Q7: Which market do you mainly deal in ?
A: Australia , Middle East , Southeast Asia , EU , South America
Q8: Do your company needs agencies ?
A: Yes, we are looking for agencies everywhere.
Q9: Are you trading company or manufacturer ?
A: We are Manufacturing and processing enterprises.Q10: Can you produce the products as required ?
A: Yes, customized products are accepted. You need note us what you need on size, steel name, steel number, MOQ..
Application: Be highly used for the construction machinery, coal Machinery, Mining Machinery, Engineering Machinery, Scraper Conveyor
