Non Rotational Wire Rope Steel 18X7
Product Details 18X7 AISI316 stainless steel wire rope is a non-rotating construction used where low rotation is required. Popular applications include davit and crane rope applications. Available in diameters from 1.5mm through to 16mm.ApplicationsMarine crane rope applicationsMarine/Saltwater env......
Send Inquiry
Product Description
Product Details

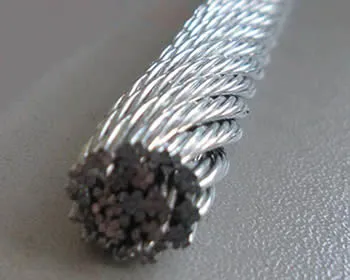

18X7 AISI316 stainless steel wire rope is a non-rotating construction used where low rotation is required. Popular applications include davit and crane rope applications. Available in diameters from 1.5mm through to 16mm.
Applications- Marine crane rope applications
- Marine/Saltwater environment
- Sewage treatment works
- Wire rope slings
- Davit ropes
| Breaking Loads | |||
|---|---|---|---|
| Nominal Diameter | Approximate Mass | Minimum breaking loads - 1570 Mpa | |
| [mm] | [kg/m] | [kN] | [Kg] |
| 6 | 0.144 | 18.5 | 1,887 |
| 8 | 0.256 | 33.0 | 3,366 |
| 9 | 0.324 | 41.7 | 4,253 |
| 10 | 0.400 | 51.5 | 5,253 |
| 11 | 0.502 | 62.3 | 6,354 |
| 12 | 0.576 | 74.2 | 7,568 |
| 13 | 0.676 | 87.1 | 8,884 |
| 14 | 0.796 | 101 | 10,302 |
| 16 | 1.04 | 132 | 13,464 |
| 18 | 1.32 | 167 | 17,034 |
| 19 | 1.44 | 186 | 18,972 |
| 20 | 1.62 | 206 | 21,012 |
| 22 | 2.04 | 249 | 25,398 |

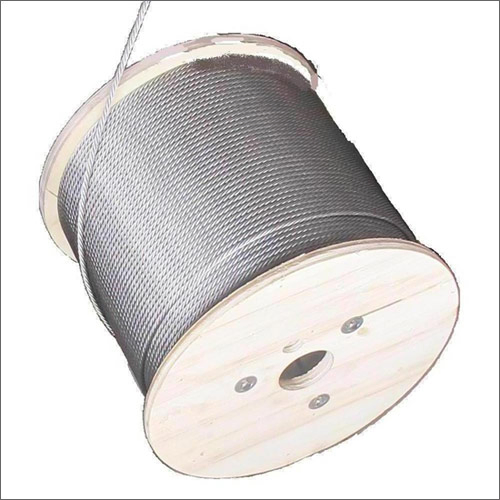

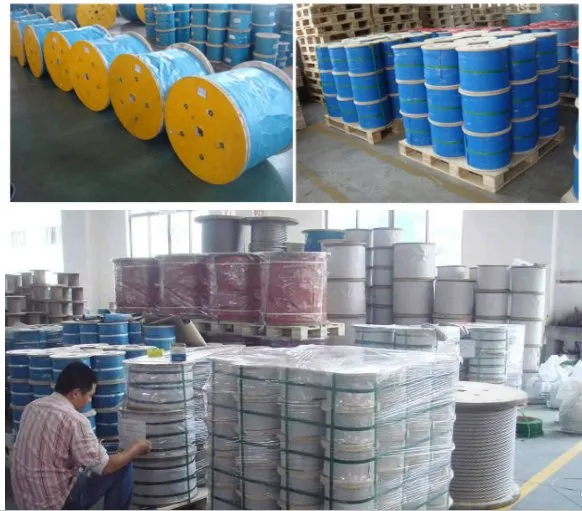

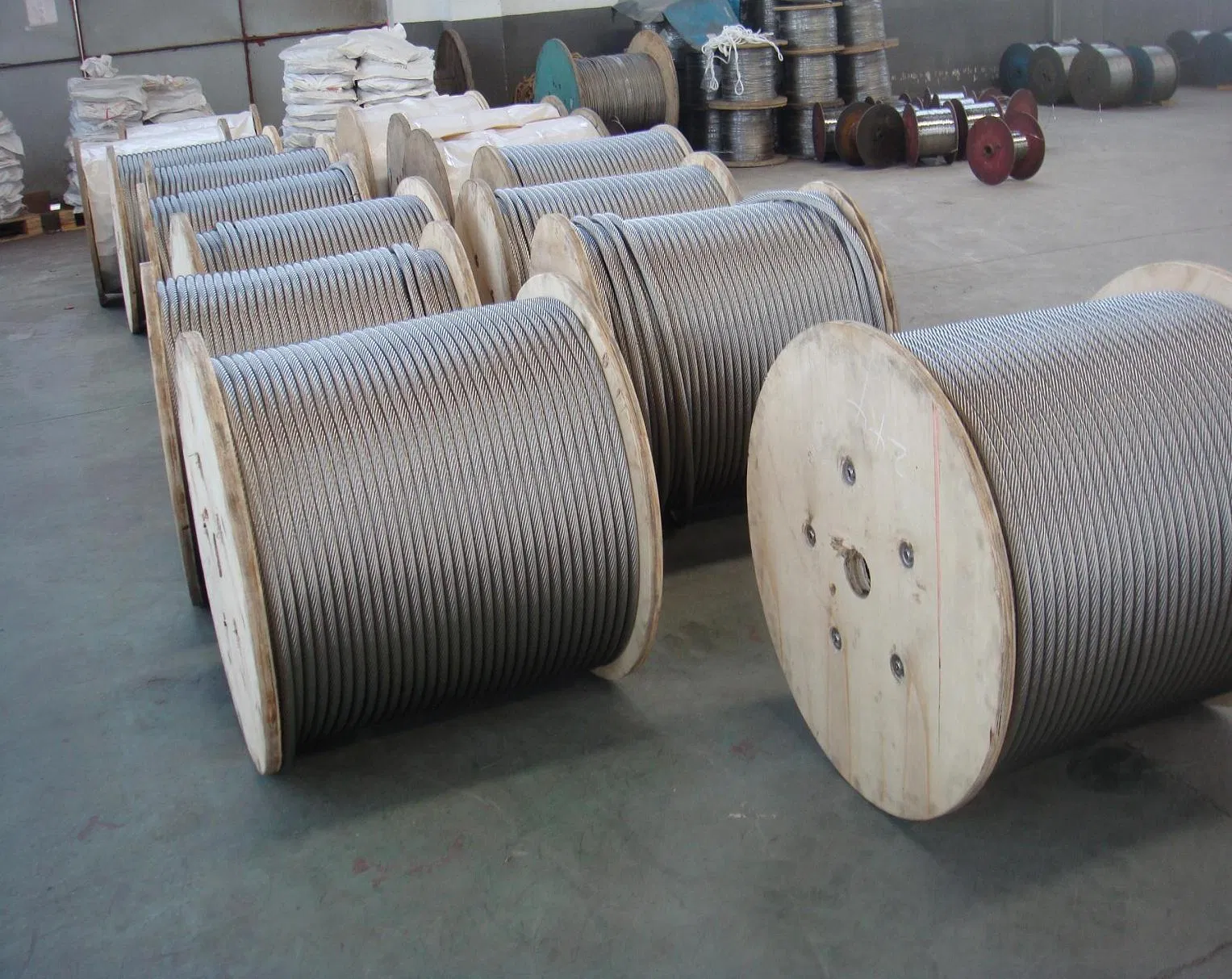

Packaging: Export packaging
500m/reel, 1000m/reel, 2000m/reel, 5000m/reel, etc.
Inner packing:
Wooden reel and craft paper
Outer packing:
Wooden pallet or according to requests
Company information

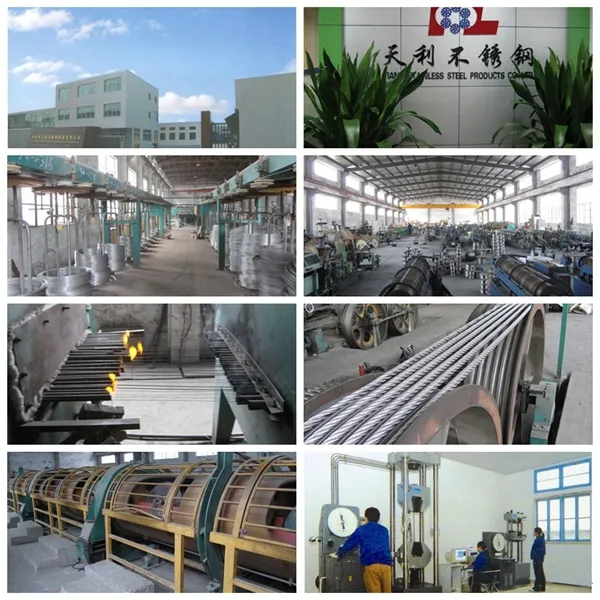

Xinhua City Tianli Steel Product Co., Ltd is founded in 1997.We are a large-scale production plant which specialized in producing high quality stainless steel wire, stainless steel wire rope, and PVC/Nylon/PE coated stainless steel wire products.
Our company serves both domestic and international market.Our products are with hith quality and competitive price.We are the official supplier for Chinese high speed train project.Moreover,our products are widely exported to worldwide market,such as US,Europe,Asian market
