China 8*19W 8X19W Fibre Core Steel Wire Rope Cable Cord 1620MPa Manufacturer for Mitsubishi Elevator

Product Description

Why us
Jiangsu Safety Wire Rope Co., Ltd. was established in June 2005, with a registered capital of 34 million USD, and 582 employees. We went public on Shanghai Stock Exchange in China on March 31, 2016 with the stock code: 603028. The factory covers an area of 102,000 square meters and has an annual output of 60,000 tons of steel wire ropes. Our market share & industry rankings for elevator wire ropes are among the top 3 in China.

With over 60 years of experience in manufacturing wire ropes, we offer the best performing wire ropes solutions for different application around the world maintaining the highest quality and safety standards. We are the first domestic enterprise to develop elevator wire ropes and now became the leading supplier of special steel wire ropes in China.

For more information

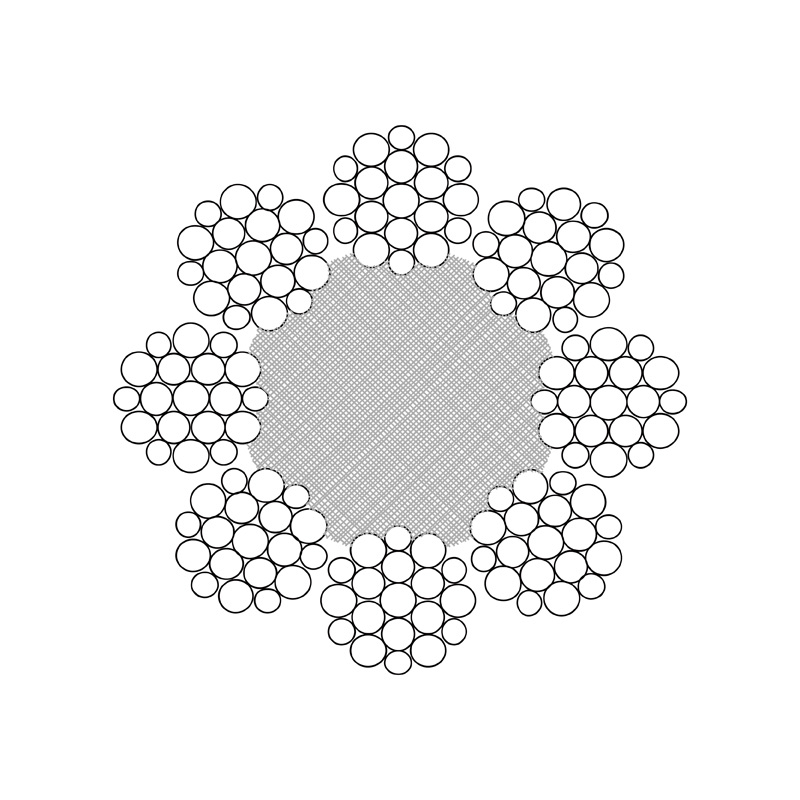

8*19W 8X19W Fibre Core Steel Wire Rope Cable Cord 1620MPa Manufacturer for Mitsubishi Elevator

8*19W 8X19W Fibre Core Steel Wire Rope Cable Cord 1620MPa Manufacturer for Mitsubishi Elevator

Specification (Standard: GB/T 8903)
For specification of other standards such as ANSI, BS, DIN, EN, JIS, ISO 4346 and so on please contact us.

Nominal diameter (mm)	Approx. weight (kg/100m)	Minimum breaking load (kN)
		Dual tensile (MPa)			Single tensile (MPa)
		1320/1620 1320/1770	1370/1770	1570/1770 1620/1770	1570	1620	1770
6.3	13.5	16.4	17.4	19.1	18.3	18.8	20.6
8	21.8	26.5	28.1	30.8	29.4	30.4	33.2
9	27.5	-	35.6	38.9	37.3	-	42
9.5	30.7	37.3	39.7	43.6	41.5	42.8	46.8
10	34.0	41.3	44.0	48.1	46.0	47.5	51.9
11	41.1	50.0	53.2	58.1	55.7	57.4	62.8
12	49.0	59.5	63.3	69.2	66.2	68.4	74.7
12.7	54.8	66.6	70.9	77.5	74.2	76.6	83.6
13	57.5	69.8	74.3	81.2	77.7	80.2	87.6
14	66.6	81	86.1	94.2	90.2	93.0	102
14.3	69.5	-	-	98.3	-	-	-
15	76.5	-	98.9	108	104	-	117
16	87.0	106	113	123	118	122	133
17.5	104	-	-	147	-	-	-
18	110	134	142	156	149	154	168
19	123	149	159	173	166	171	187
20	136	165	176	192	184	190	207
20.6	144	-	-	204	-	-	-
22	165	200	213	233	223	230	251

Overview of SAFETY

8*19W 8X19W Fibre Core Steel Wire Rope Cable Cord 1620MPa Manufacturer for Mitsubishi Elevator

FAQ
1. Quality?
We focus on the manufacture of steel wire ropes for over 60 years and participated in the formulation of several important steel rope standards in China, such as GB/T 31979-2015, GB/T 29086-2012, GB/T 20118-2017, GB/T8903-2018. SAFETY's market share & industry rankings for elevator wire ropes are among the top 3 in the world. There is no need to worry about quality.

2. Price?
We provide high-quality products with moderate prices. A little higher prices bring you the better quality and service.

3. Customized?
Customizing products for special requirements is available, for example: strength/tensile, twist direction, diameter, material, surface coating, etc.

4. Delivery time?
seven days will be ok if wire ropes are in stock. If not, we need additional 30 days to produce your wire ropes.

5. Service
Our professional service team can provide installation guidance services and basic technical training on wire ropes if you need.
