Product Description

S45C/C45/1045 Cold Drawn Steel

Equivalent material for AISI 1045
DIN C45,DIN 1.0503,UNI C45,SAE 1045,JIS S45C,GB 45,GB U20452,SS 1650,SS 1672

45# is a grade of steel, a high-quality carbon structural steel, corresponding to Japanese standard S45C, American standard: 1045, and German standard C45. Its characteristic is that it has higher strength and resistance to deformation than ordinary A3 steel.

It is a high-strength medium-carbon high-quality steel. Because of its poor hardenability, it is generally used in a normalized state. When the mechanical properties are required, it is quenched and tempered. The cold deformation has medium plasticity, and the cutting workability of annealing and normalizing is better than quenched and tempered.

Used to manufacture parts with high strength requirements, such as gears, shafts, piston pins, etc. and machined parts, forgings, stamping parts and bolts, nuts, and pipe connections that are not very stressed.

Density

7.8 - 7.9

g/cm³

Mechanical

Elastic modulus	200.0 - 215.0	GPa
Elongation A5	16.0	%
Poisson's ratio	0.29	[-]
Reduction of area	40.0	%
Shear modulus	75.0 - 80.0	GPa
Tensile strength	600.0	MPa
Yield strength	355.0	MPa

Thermal

Coefficient of thermal expansion	1.32e-05	1/K
Max service temperature	500.0	°C
Melting point	1380.0 - 1514.0	°C
Specific heat capacity	465.0 - 483.0	J/(kg·K)
Thermal conductivity	36.0 - 54.0	W/(m·K)

Electrical

Electrical resistivity

1.43e-07 - 1.74e-07

Ω·m

Chemical

Carbon	0.42 - 0.5	%
Chromium	0.0 - 0.25	%
Copper	0.0 - 0.25	%
Manganese	0.5 - 0.8	%
Nickel	0.0 - 0.3	%
Phosphorus	0.0 - 0.035	%
Silicon	0.17 - 0.37	%
Sulfur	0.0 - 0.035	%

Cold drawn steel types, shapes and sizes we can offer
besides the below shapes and sizes,we can also manufacture it based on customer's requests and customize different shapes and sizes.

Shapes	Sizes	Processing
Steel Round Bar	5mm to 63.5mm	Cold Drawn
Steel flat Bar	63.5mm-120mm	smooth-turned and polished.
Cold drawn steel square bar	55mm to120120mm	Cold Drawn

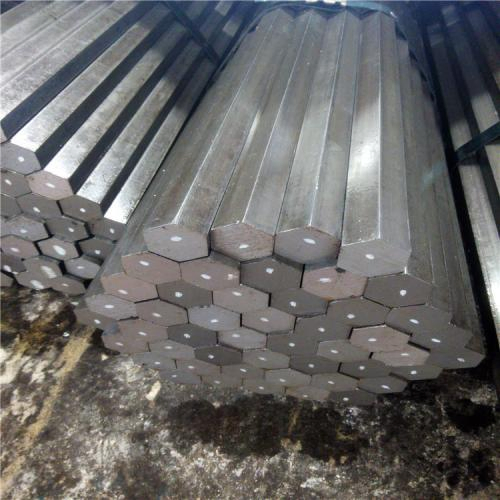

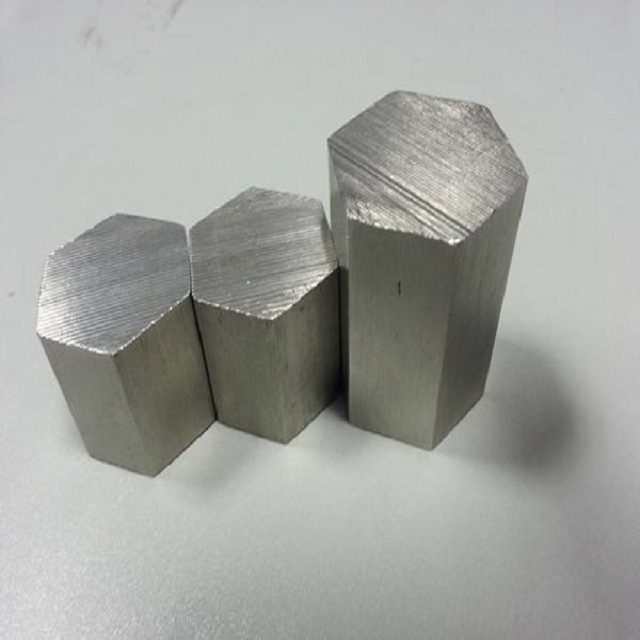

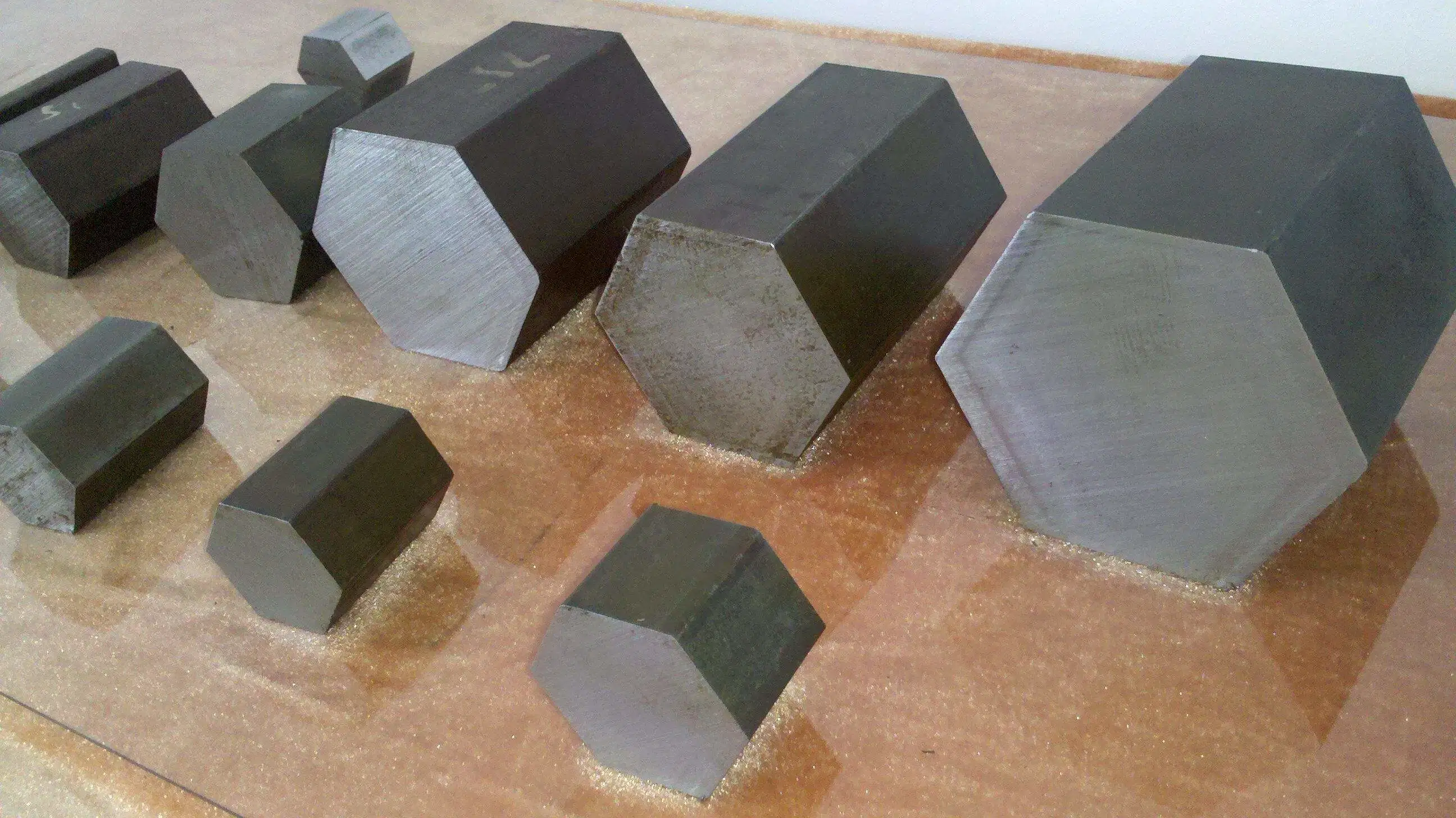

Cold drawn steel hex bar	5mm to120mm	Cold Drawn
Cold drawn steel hexagonal bar	5mm to 120mm (side to side)	Cold Drawn
Straightness	Max 1mm/m
Tolerance	h9 h10 h11 or as required

Type of steel	GB	ASTM(SAE)	JIS
Carbon steel Low alloy steel	Q195,Q215, Q235,Q345	A285MGr.B A570MGr.A	SS330 SS400,SS490...
Quality carbon steel	10,20,35,40,60 20Mn,25Mn, 35Mn,40Mn	1010,1020,1035, 1045,1060,1022, 1026,1037,1039	S10C,S20C, S35C,S45C...
Alloy structure steel	20Mn2,40Mn2,20Cr,40Cr, 20CrMo,35CrMo,42CrMo, 20CrMnTi,20Cr2Ni4, 40CrNiMo	1320,1345,5120, 5140,4118,4135, 4140,3316,4340	SMn420,SMn438, SCr420,SCr440 SCM430,SCM435 SCM440,SCN815 SNCM439
Cold heading steel	ML10,ML20,ML30, ML35,ML35CrMo, ML42CrMo,ML15MnB	1012,1020,1030 1034,4135,4140, 1518	SWRCH10R SWRCH20K SWARCH35K SNB7
Spring steel	65Mn,60Si2Mn,50CrVA	1066,6150	SCP6,SCP10
Bearing steel	GCr15	E52100	SUJ2
Stainless steel	1Cr13,2Cr13	412,420	SUS410,SUS420
Tooling steel	T8,T10 W6Mo5Cr4V2	W1A-8, W1A-9.5,M2	SK7,SK4,SKH9
Free cutting steel	Y12,Y12Pb,Y15, Y15Pb,Y40Mn	1212,11L08,1215 12L13,12L14,1141	SUM21,SUM32, SUM22L,SUM42...


Round steel	Square steel	Flat steel

hexagonal steel	Irregular steel	Steel pipe

Company Profile

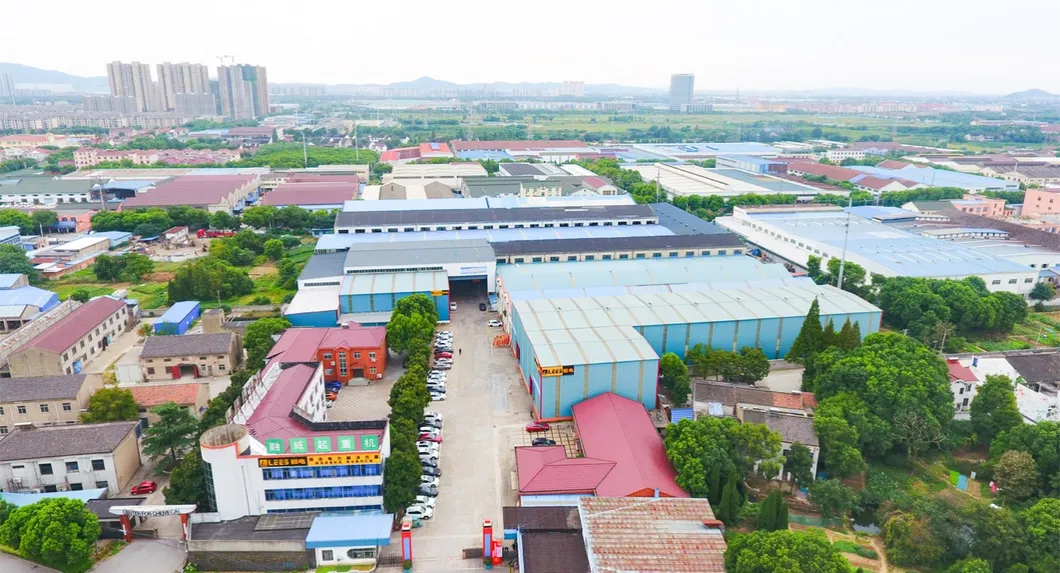

Founded in 2012, Junxiong Metal is located in Jiulong Metallurgical Industrial Park, an important upgrade project base of Jiangsu Sha Gang Group, one of the world's top 300 key projects in the "Twelfth Five-Year Plan" period of Jiangsu Province.Relying on the unique manufacturing, consumption, economic and trade, investment, transportation and industrial policies of the Yangtze River Delta and strong government support, Junxiong stands on the shoulders of the giant Sha Gang Group to create value for you.

The main production and processing of cold-drawn round steel, square steel, flat steel, hexagonal steel, special-shaped steel, tooth steel, easy-to-chip steel, special-shaped drawn pipe steel, cold forging steel spheroidization, austenitic martensitic stainless steel, according to customers Mechanical properties, appearance and appearance require professional customized production. Products are widely used in standard parts, hardware tools, textile machinery, motorcycles, loaders, forklift parts, sports equipment, furniture and iron crafts, auto parts and other industries. Some products are indirectly exported to foreign countries, creating value for customers.
Low Price JIS S45c, GB 45, GB U20452, Ss 1650, Ss 1672 Carbon Alloy Structural Steel Hexagon Bar

Low Price JIS S45c, GB 45, GB U20452, Ss 1650, Ss 1672 Carbon Alloy Structural Steel Hexagon Bar

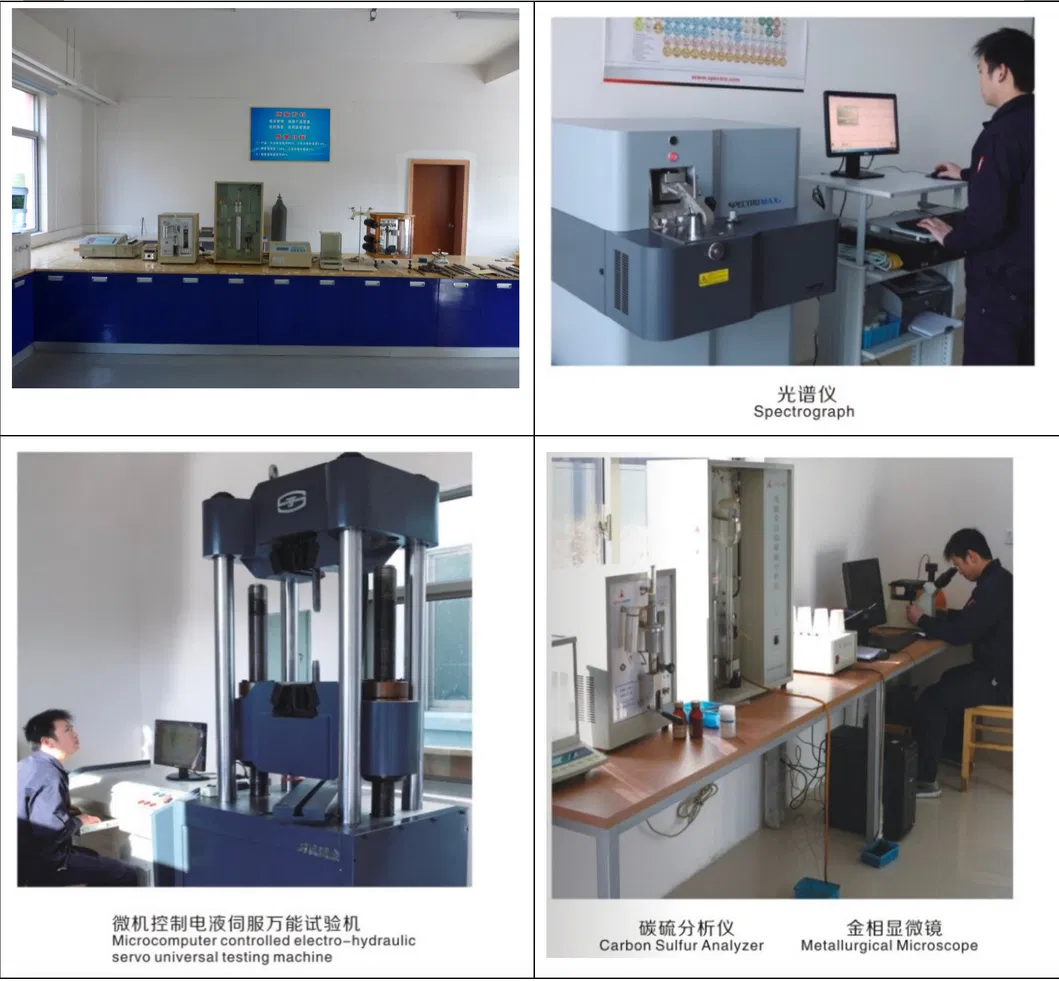

Lab Inspection Equipment
We have professional equipment and technical engineers for your service, according to your requirements (material, shape, mechanical properties) customized production.Our company has automatic production line to produce round steel Good straightness, after chamfer, it can be machined by the longitudinal cutting machine Customization (length) Customization (heat treatment hardness) Customization (Grinding machine polishing)

Low Price JIS S45c, GB 45, GB U20452, Ss 1650, Ss 1672 Carbon Alloy Structural Steel Hexagon Bar

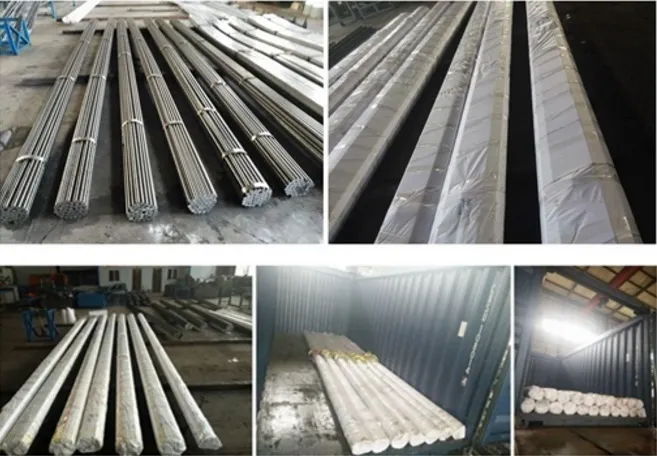

Finished Products Warehouse and Package

Low Price JIS S45c, GB 45, GB U20452, Ss 1650, Ss 1672 Carbon Alloy Structural Steel Hexagon Bar

FAQ
Q: Are you trading company or manufacturer?
A: Both
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 30 ~40days if the goods are not in stock, it is according to quantity. The more the quantity is, the shorter the delivery will be.
Q: Do you provide samples? Is it free or extra?
A: Yes, we The inventory can be provided free of charge, but the freight will need to be borne by you
Q: What is your terms of payment?
A: T/T or L/C according to real order.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.

If you have another question, pls feel free to contact us as below
