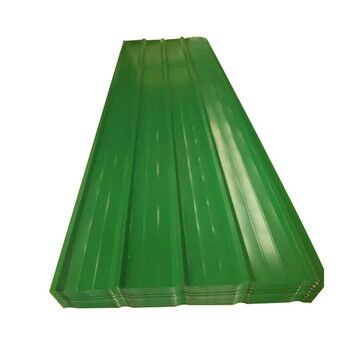

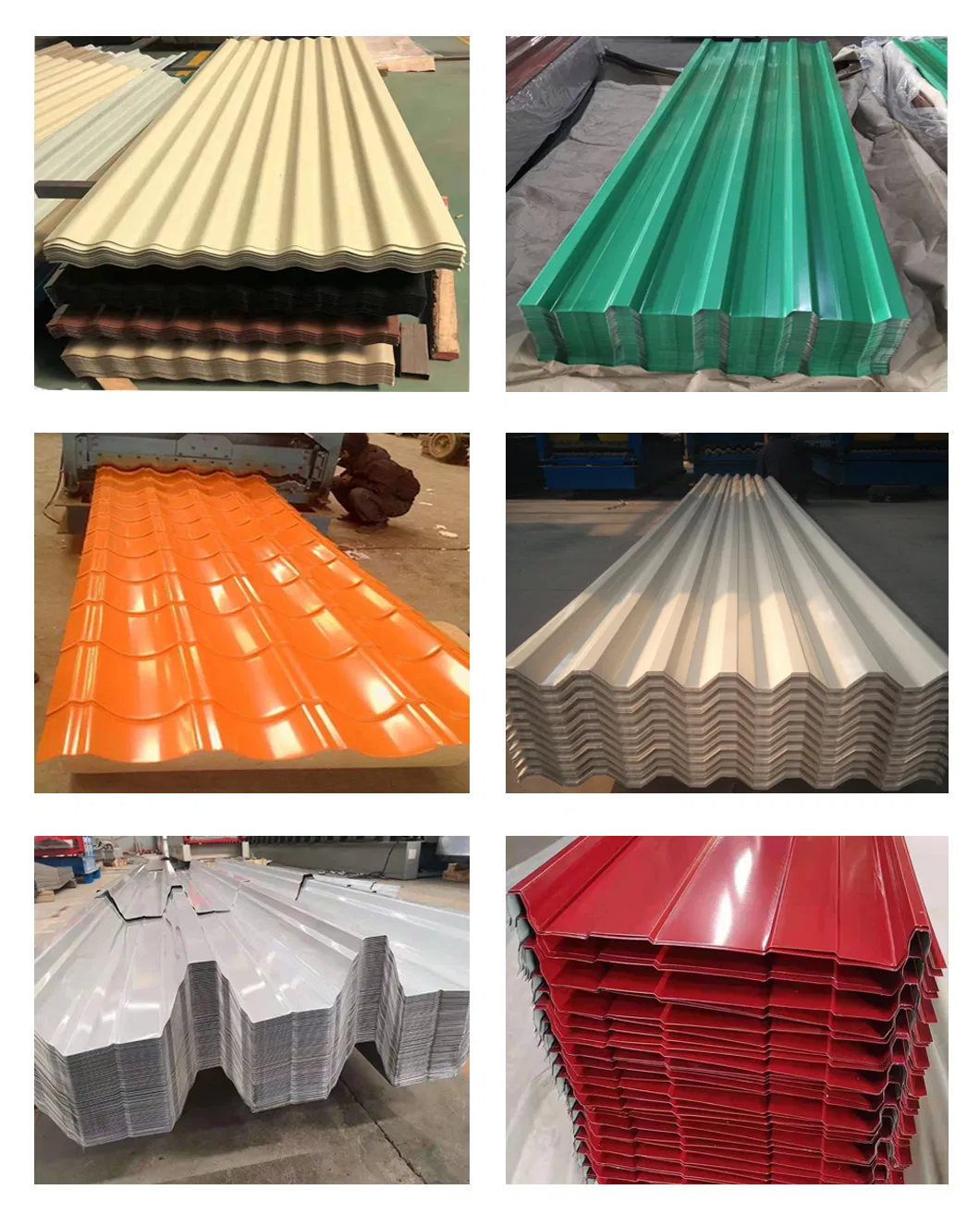

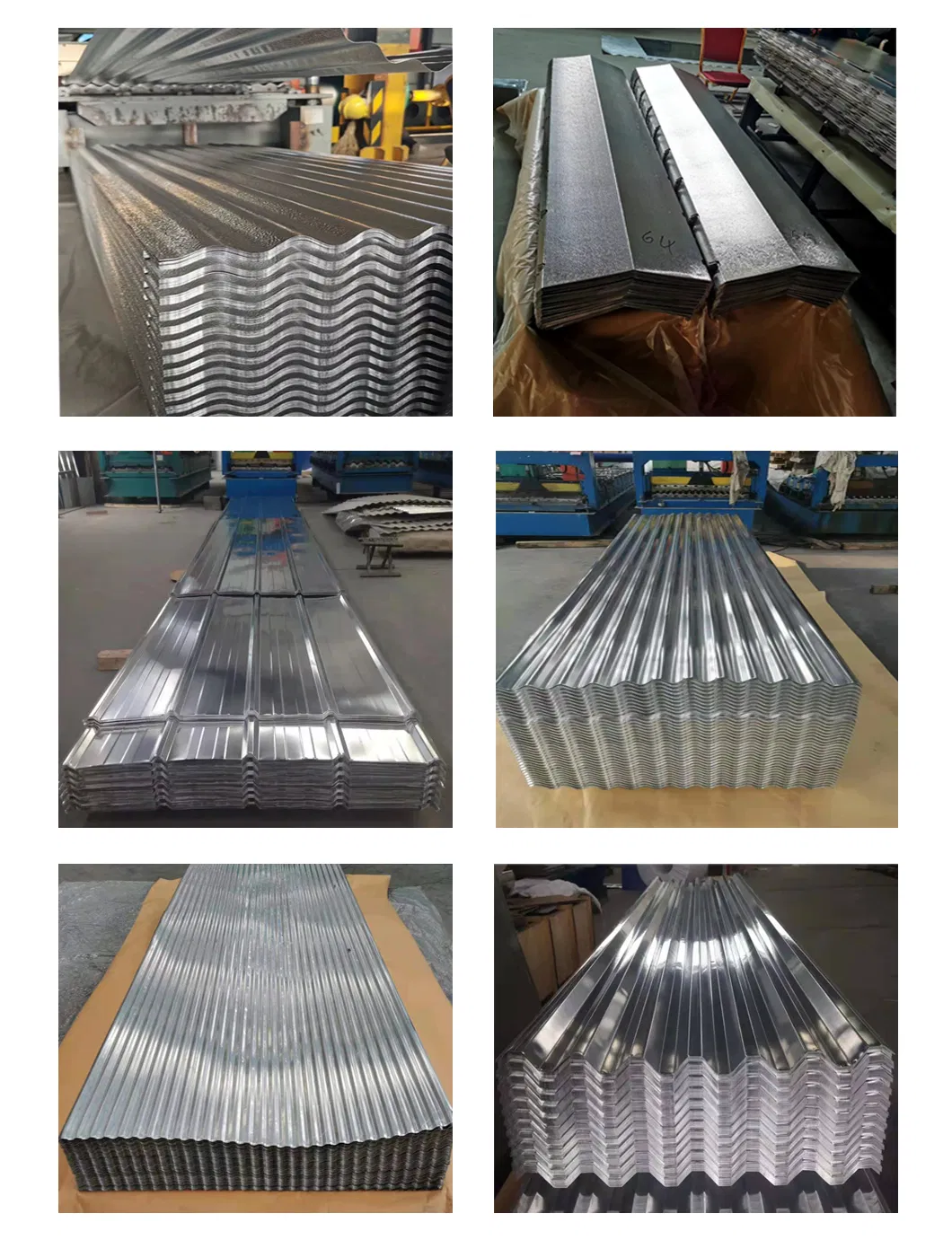

Tiles 1050 1060 1070 1100 Color Corrugated Aluminium Sheet
Heng Steel Group Established in 2005, is a large steel enterprise in the North of China . Hengjia have a modern factory covering an area of 400,000 square meters, with over 800 employees and a fixed asset of 180 million USD, annual output capacity is up to 800,000 Tons. We can quickly fulfill all of......
Send Inquiry
Product Description
Detailed description:

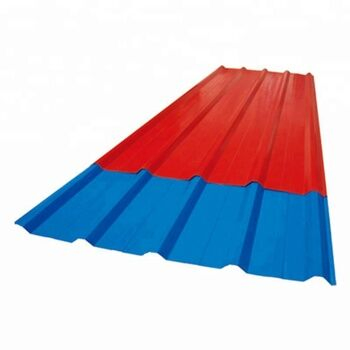

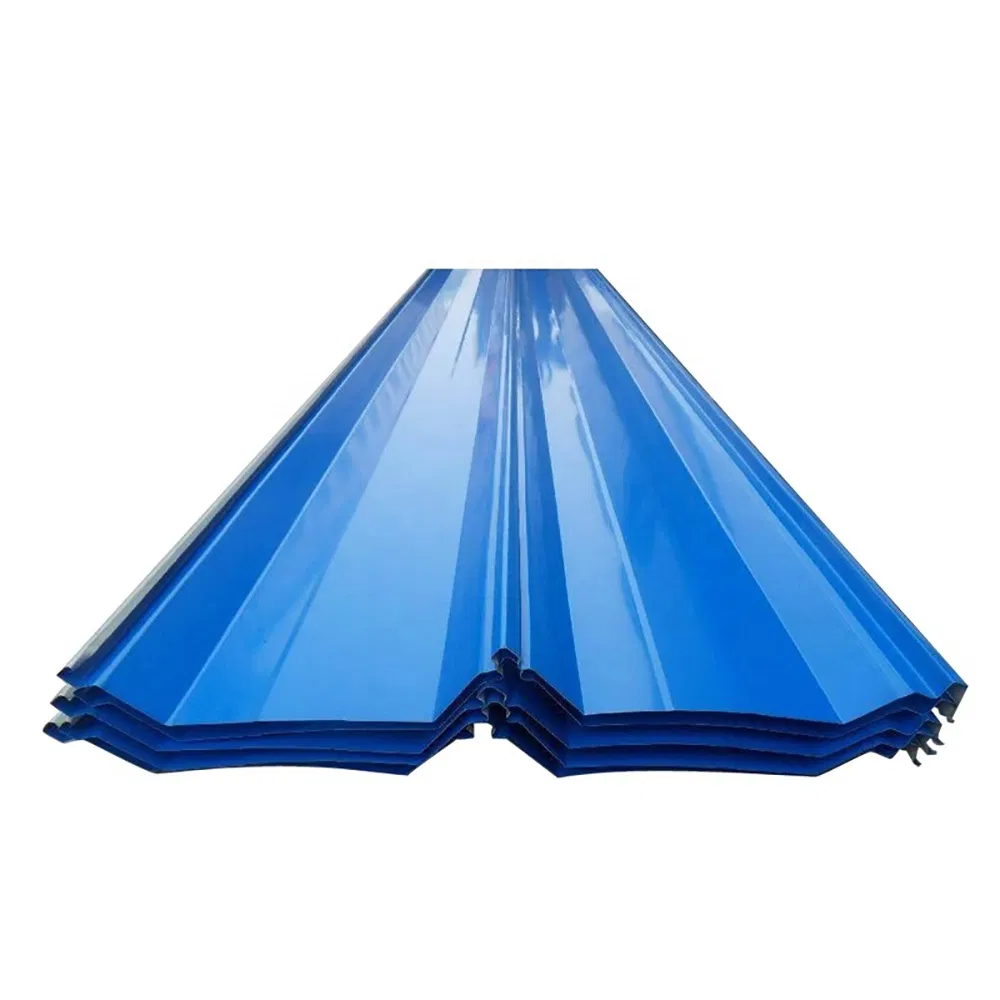

| Product Name | Color Coated Aluminium Roofing Sheet |
| Size | Thickness: 0.2-1.5MM Width: 650-1050 MM Length: 1000-11800 MM |
| Tolerance | Thickness: +/-0.02mm, Width:+/-2mm |
| Steel Grade | 1050,1060,1100,2024,2240,3003,5052,5754... |
| Standard | ASTM,DIN,JIS,BS,GB/T |
| Certificate | ISO, SGS, BV.... |

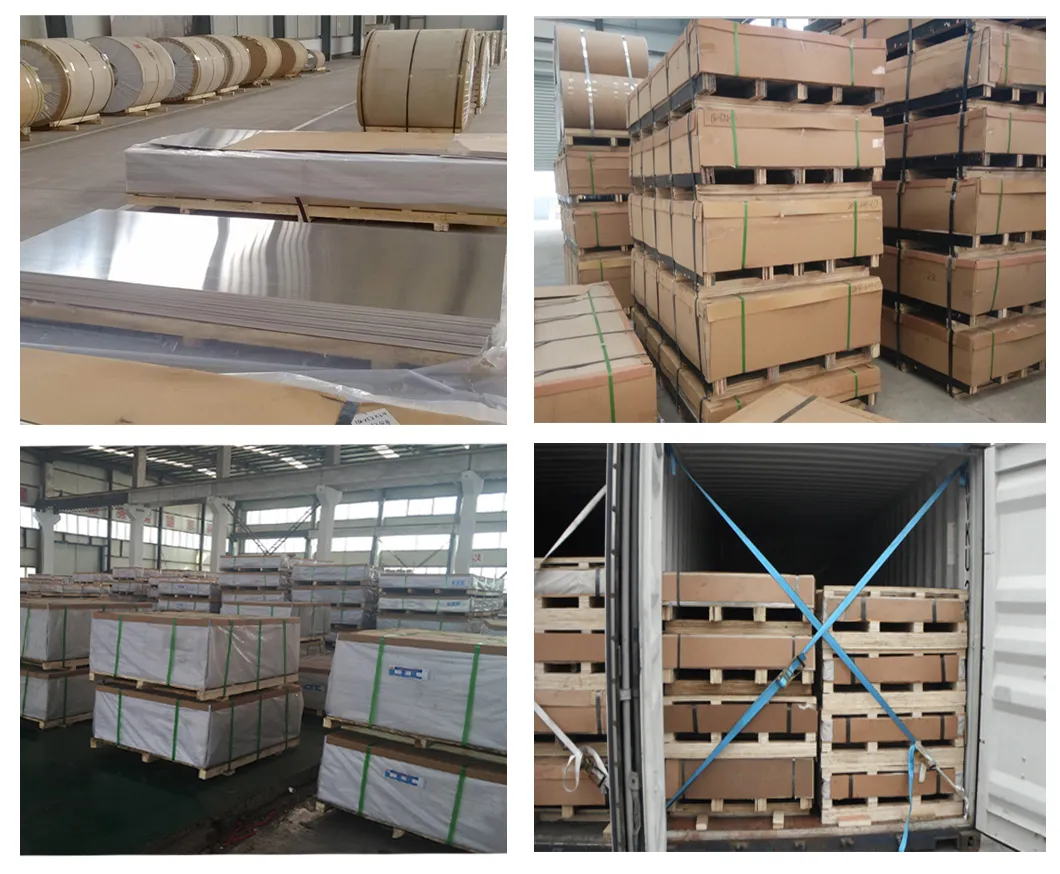

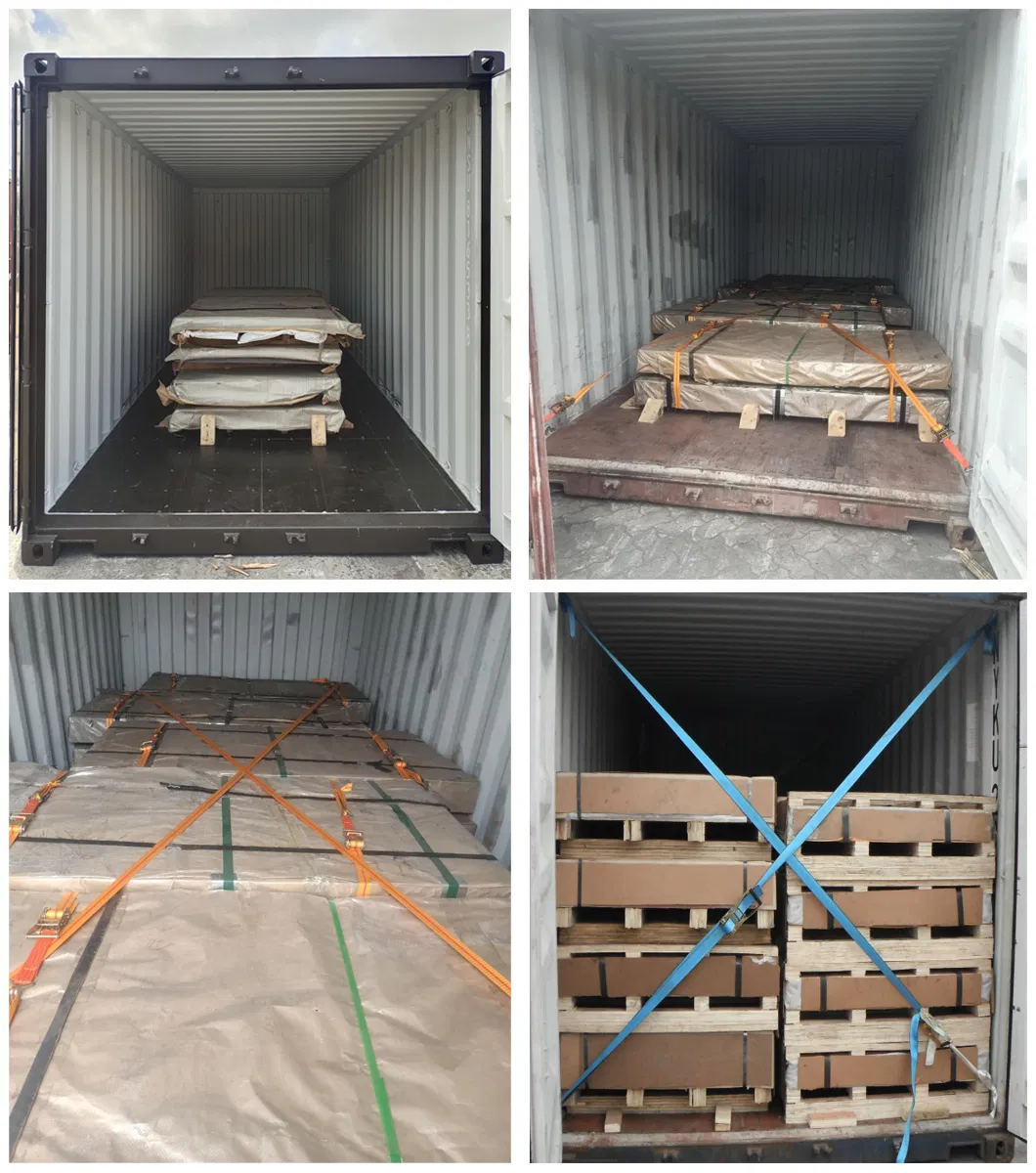

| Packing | standard export package (waterproof kraft paper+galvanized steel sheet) |

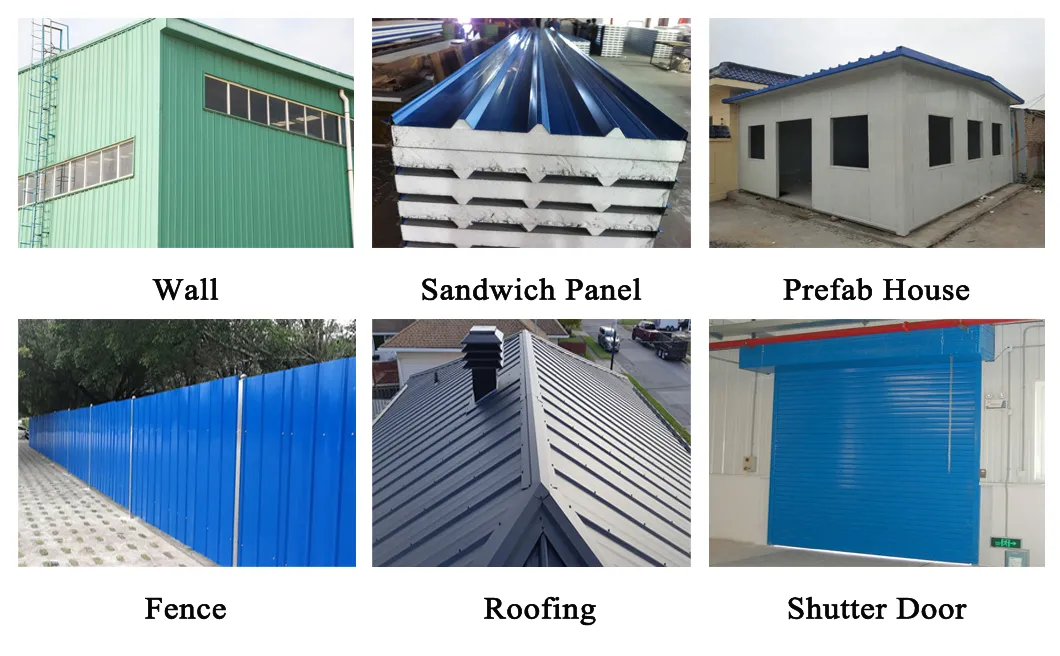

| Application | - Chemical industry equipment,Industrial Tanks -Medical equioment,Food industry,Construction,Kitchen utensils - Electricequipment,Building Material - Reflector,Mirror,Interior-Exterior decoration for building |
Production Standard :
as per international standard ASTM OR EN standard ,
all chemical composition ,mechanical property ,size tolerance ,flat tolerance ,
etc strictly as per ASTM OR EN standard
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Other | Al | ||
| Single | Total | ||||||||||||
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | _ | _ | 0.05 | V:0.05 | 0.03 | 0.03 | _ | 99.6 |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | _ | _ | 0.05 | V:0.05 | 0.03 | 0.03 | _ | 99.5 |
| 1100 | Si+Fe:0.95 | 0.05~0.40 | 0.05 | _ | _ | _ | 0.1 | _ | _ | 0.05 | 0.15 | 99 | |
| 1200 | Si+Fe:1.00 | 0.05 | 0.05 | _ | _ | 0.1 | _ | 0.05 | 0.05 | 0.15 | 99 | ||
| 3003 | 0.6 | 0.7 | 0.05~0.20 | 1.0~1.5 | _ | _ | _ | 0.1 | _ | 0.05 | 0.15 | R | |
| 3004 | 0.3 | 0.7 | 0.25 | 1.0~1.5 | 0.8~1.3 | _ | _ | 0.25 | _ | 0.05 | 0.15 | R | |
| 3005 | 0.6 | 0.7 | 0.3 | 1.0~1.5 | 0.20~0.6 | 0.1 | _ | 0.25 | 0.1 | 0.05 | 0.15 | R | |
| 3105 | 0.6 | 0.7 | 0.3 | 0.30~0.8 | 0.20~0.8 | 0.2 | _ | 0.4 | 0.1 | 0.05 | 0.15 | R | |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.50~1.1 | 0.1 | _ | 0.25 | _ | _ | 0.05 | 0.15 | R |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2~2.8 | 0.15~0.35 | _ | 0.1 | _ | _ | 0.05 | 0.15 | R |
| 5083 | 0.4 | 0.4 | 0.1 | 0.40~1.0 | 4.0~4.9 | 0.05~0.25 | _ | 0.25 | _ | 0.15 | 0.05 | 0.15 | R |
| 5086 | 0.4 | 0.5 | 0.1 | 0.20~0.7 | 3.5~4.5 | 0.05~0.25 | _ | 0.25 | _ | 0.15 | 0.05 | 0.15 | R |
Our Service
Pre-Sale Service:
Sample:Samples can be offered with Samples` charges and courier fee by you . But Samples` charges will be return to you after you place an order .
Production Line:We having own three factories with more than 10 production lines . Many styles for you choice.
OEM/ODM and logo stamp:OEM/ODM order are accepted . Any logo printing or design are free of charges.
Transport:We have own international Logistics company . Is Class-One agent of MSC/MSK/APL/CMA/COSCO/OOCL/MOL . Can supple the best transport plan and charges for you .Also ensure delivery the goods within short time .
During Sale Service:
Quality Control: IQC IPQC FQC
Material Inspection,Drawing and Samples` Inspection,Correction of Machine and Equipment,Trial production,Finished Production Testing,The Third inspect department
Transportation safety guarantee:Our logistics having good-tracked system. Will inform you the goods transport status message at any time , until you pick up the goods.
After-Sale Service:
We are glad to supply the better suggestion of the price and products . Including the goods` stockpile and application .
Will supply the latest market price information for you at any time.
Welcome to visit our company . Insure you will have a good time in China.
