Rail Transportation Aluminium Plate with The Usage of High-Speed Rail

Product Description

Rail Transportation Aluminium with the usage of high-speed rail

Rail Transportation Aluminium
Aluminium alloys have been widely applied in light rail, metro and high-speed rail. The features of light weight, corrosion resistance and good performance can be obtained by largely using aluminium in railway transportations. Aluminium plates are mainly used as outer body sheet, inner decorative sheet, roof and floor plank. Furthermore, some aluminum tubes with small size are used for ventilation and transmission devices within the trains as well.

The aluminium plates manufactured by Signi Aluminium possess various advantages, such as high strength, superior extrusion performance, good weldability and good corrosion resistance etc. These plates are especially suitable for body structure, solebar and frame.

Signi Aluminium are capable of providing various aluminium products for railway transportation, such as floor plank, solebar, side wall, cantrail, roof and bolster etc.

Classic alloy: 5052, 5754, 5083, 5A06
6101, 6005, 6005A, 6082, 6063, 6N01, 6061, 6106
7003, 7N01, 7005, 7020

Product characters: High strength, stress corrosion resistance and good weldability.

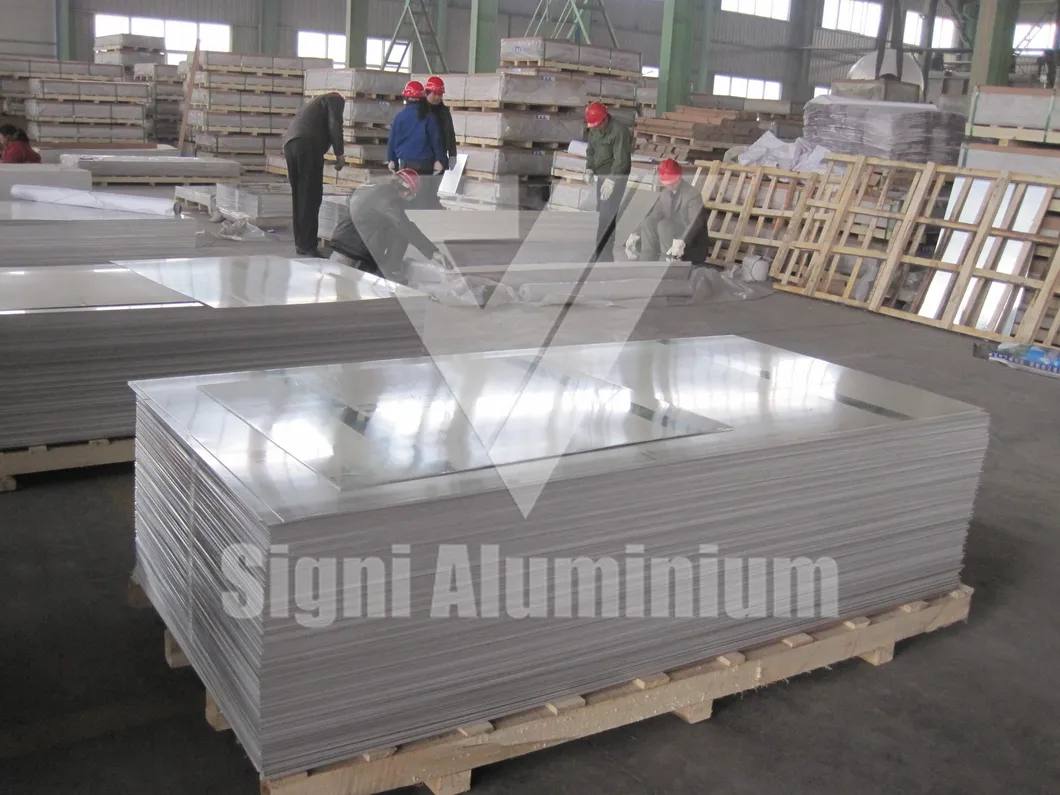

Hot rolled plate

As one of China' s leading producers of flat rolled products, Signi' s aluminium sheet is produced from its own cast slabs or continuous cast coils, rolled down to customised thickness, gauge and tolerances. Our hot rolled plates are durable and deliver long lasting performance. Application areas: Electrical busbars and ducting, ships, boates, tanks, defence and industrial uses, aircrafts.

Specifications
Alloys (AA)	Temper	Thickness range (mm)	Length range (mm)	Width range (mm)
1050, 1060, 1070, 1080, 1100, 1200, 3003, 3105 and 8011	F and O	6 _ 300	1000 _ 10000	500 _ 2700
5052, 5A02, 5A03, 5A05, 5251, 5182, , 5083, 5086, 6061, 6082, 6063, 7075, 2024	F and O H111, H112, T4, T6 (For 6061, 6063), T651(Stretched plates)	6 _ 300	1000 _ 10000	500 _ 2700

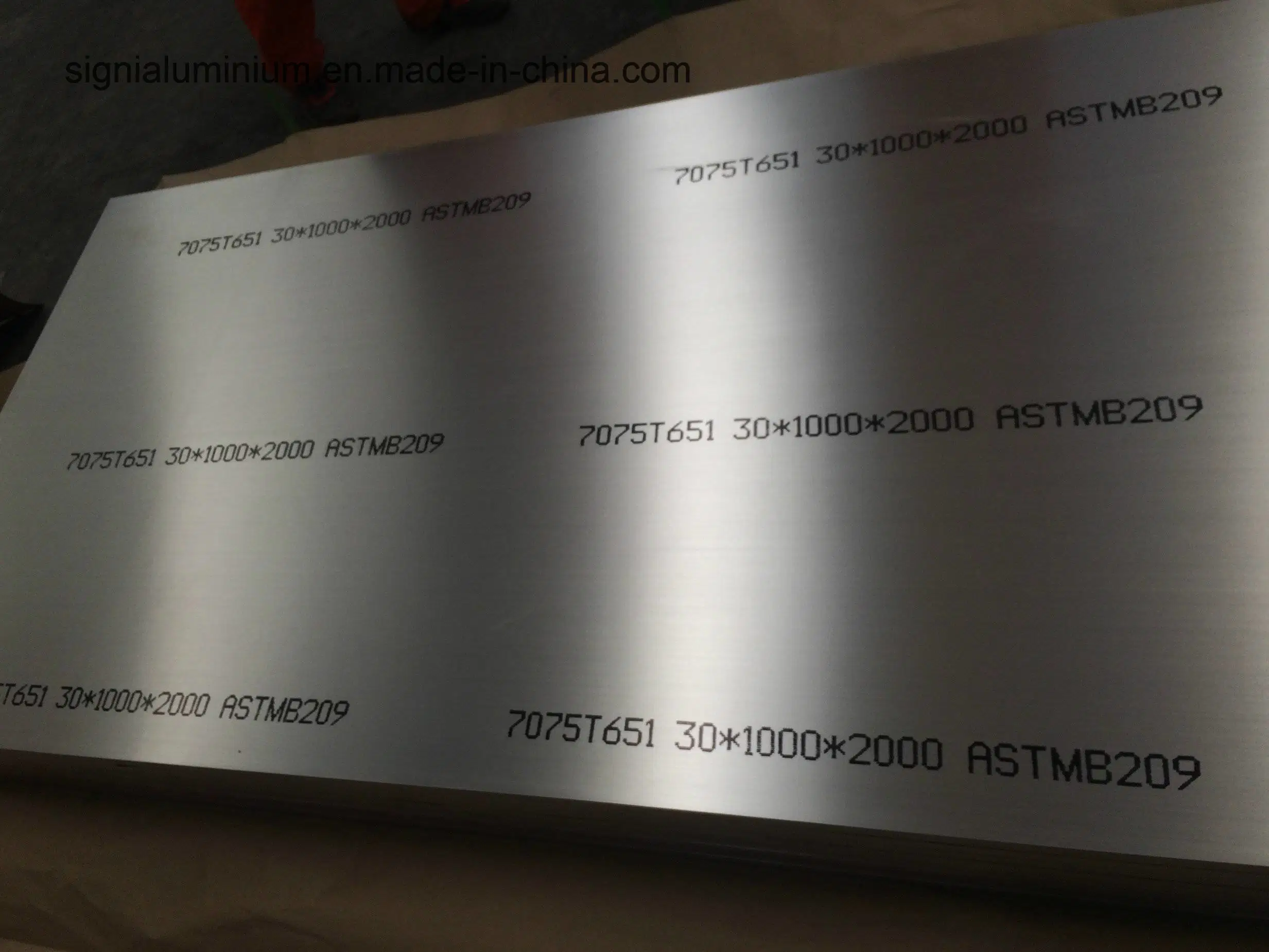

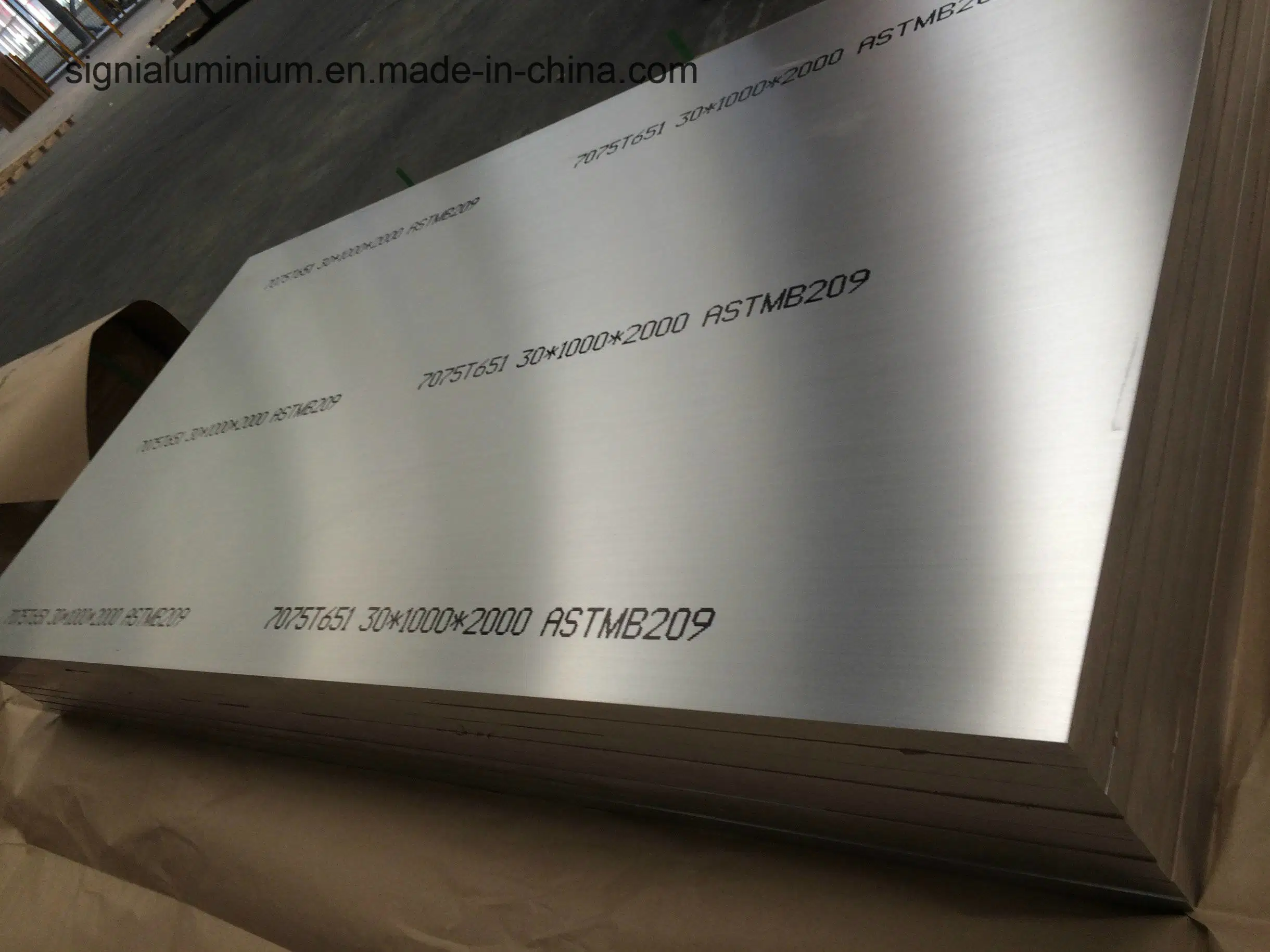

Stretched plates
Thickness limit	6 _ 70 mm
Length limit	2000 _ 10000 mm

Chemical composition
Alloy (%)	5052	5083	5086	5754	6061	7075
Si	0.25	0.40	0.40	0.40	0.40_ 0.80	0.40
Fe	0.40	0.40	0.50	0.40	0.70	0.50
Cu	0.10	0.10	0.10	0.10	0.15_ 0.40	1.2_ 2.0
Mn	0.10	0.40_ 1.0	0.20_ 0.7	0.50	0.15	0.30
Mg	2.2_ 2.8	4.0_ 4.9	3.5_ 4.5	2.6_ 3.6	0.8_ 1.2	2.1_ 2.9
Cr	0.15_ 0.35	0.05_ 0.25	0.05_ 0.25	0.30	0.04_ 0.35	0.18_ 0.28
Ni	_	_	_	_	_	_
Zn	0.10	0.25	0.25	0.20	0.25	5.1_ 6.1
Ti	_	0.15	0.15	0.15	0.15	0.20
Each (Others)	0.05	0.05	0.05	0.05	0.05	0.05
Total (Others)	0.15	0.10	0.10	0.15	0.15	0.15
Al	Remaining	Remaining	Remaining	Remaining	Remaining	Remaining
Single number indicates maximum content.

Packing

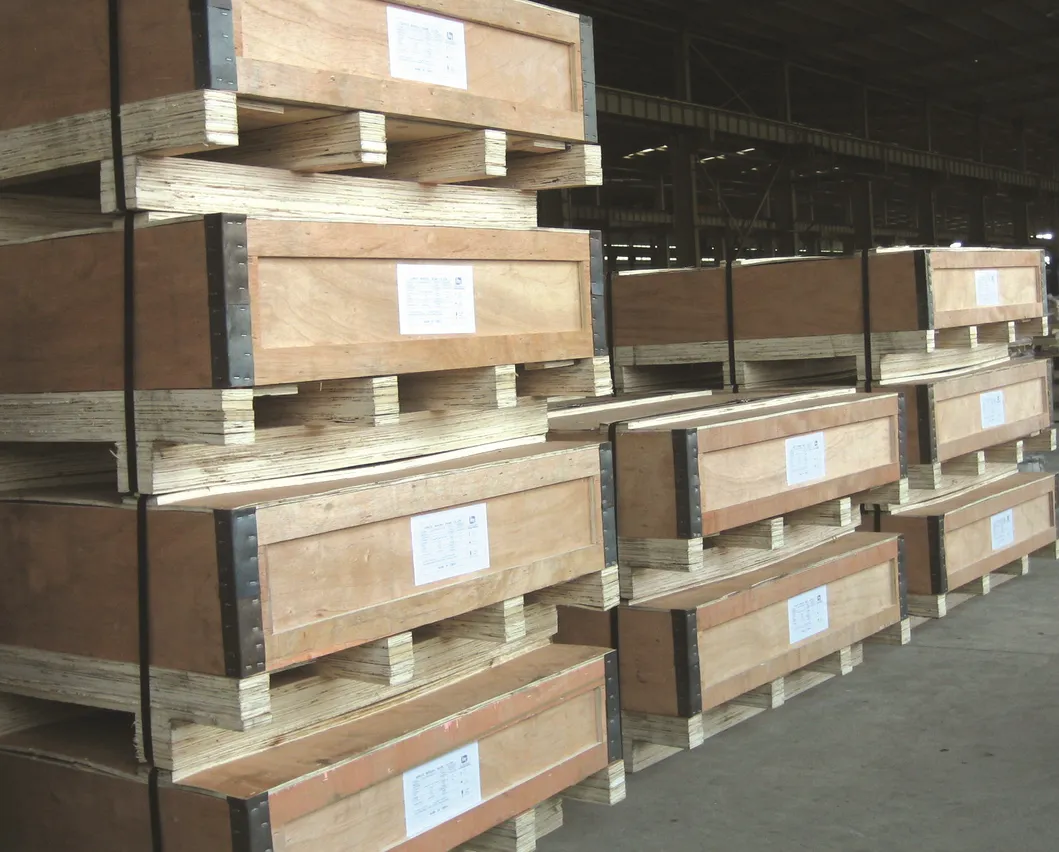

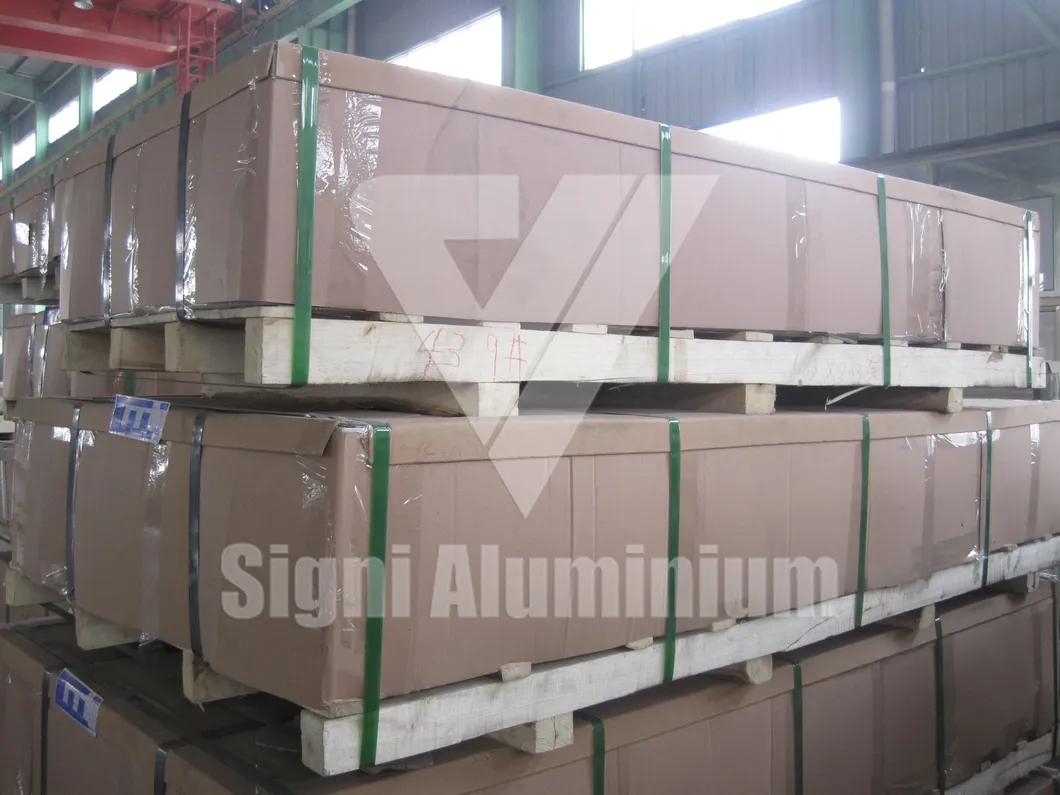

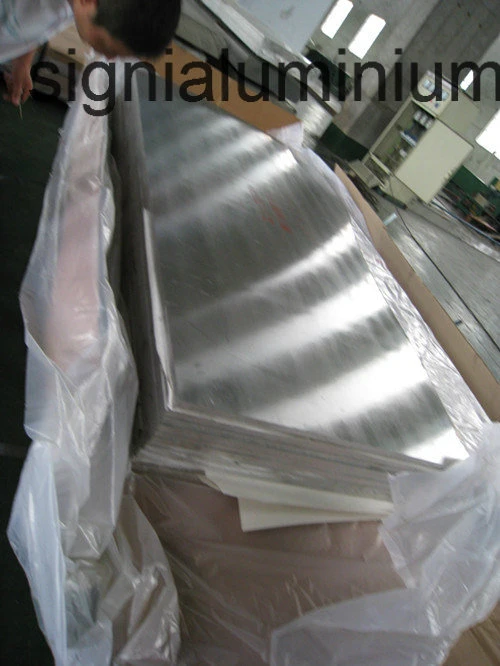

Sheet: Sheets are placed in wooden boxes on wooden skids with runners along the length of the sheet. They are wrapped in HDPE with hardboard on top and bottom of the stack. Hoop iron strapping runs along the length of the sheets. Silica gel packets are put in the boxes for moisture protection.
