Nickel Manganese Alloys NiMn2 /Ni212 Wire

Product Description

Nickel Manganese Alloys NiMn2/Ni212 Wire/Strip

Nickel Grade	Ni+Co	Cu	Si	Mn	C	Cr	S	Fe	Mg
Nickel Grade	≥	≤
Ni201	Bal.	.25	.3	.35	.02	.2	.01	.3	-
Ni200	Bal.	.25	.3	.35	.15	.2	.01	.3	-

Characteristics and Applications of Nickel Strip
1) High degree of electrical conductivity
2) Low electrical resistivity
3) Excellent surface and slit edge conditions
4) Enhanced solderability as a result of low surface oxides
5) Excellent formability with deep draw characteristics with reduced die wear
6) Resistance to grain growth
7)Rechargeable Batteries (Nickel Metal Hydride, Lithium Ion), Metal Stamping, 8)Lead Frames, Gaskets and Seals, Lighting Applications, Superconductor Applications

Nickel Strip Dimension Tolerance

Thickness (mm)	Thickness Tolerance	Burr height	Width Tolerance (mm)
			2≤w<10	10≤w<50	50≤w<100	100≤w<150	150≤w<200	200≤w≤500
0.02≤t<0.05	+0.002, -0.003	≤0.005	±0.05	±0.10	±0.15	±0.20	±0.30	±0.50
0.05≤t<0.1	±0.005	≤0.01
0.1≤t<0.2	±0.008	≤0.015
0.2≤t<0.3	±0.012	≤0.02
0.3≤t<0.4	±0.015	≤0.03	±0.10	±0.15	±0.25	±0.50	±0.80	±1.00
0.4≤t<0.6	±0.025	≤0.05
0.6≤t<0.8	±0.030	≤0.06	±0.30	±0.40	±0.50	±0.50	±0.80	±1.00
0.8≤t<1.0	±0.040
1.0≤t<1.2	±0.050	≤0.08	±0.50	±0.50	±0.80	±1.00	±1.00	±1.50
1.2≤t<1.4	±0.060
1.4≤t<1.7	±0.070	≤0.10
1.7≤t<2.0	±0.080

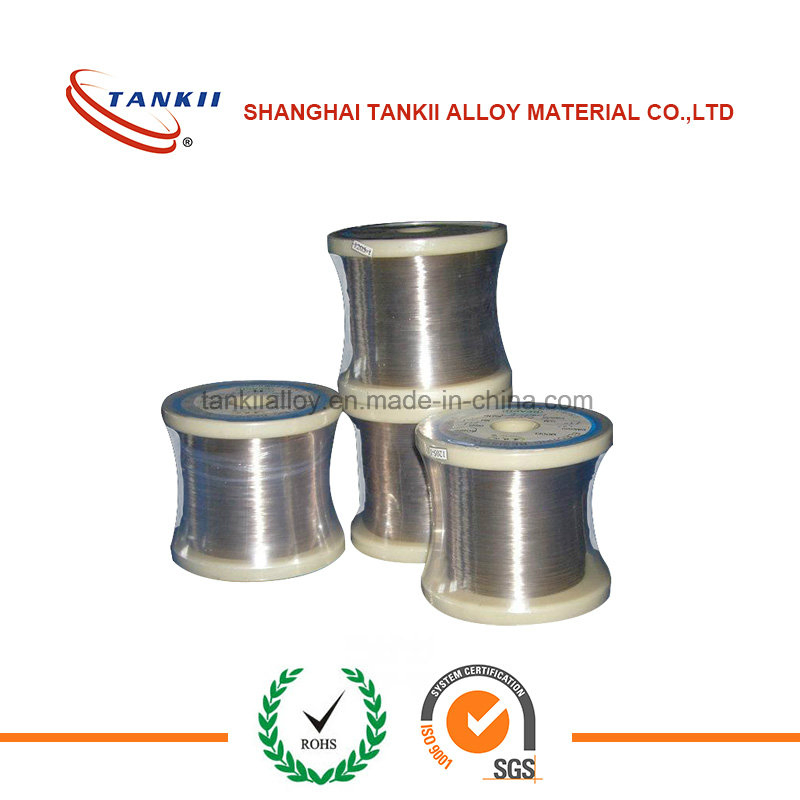

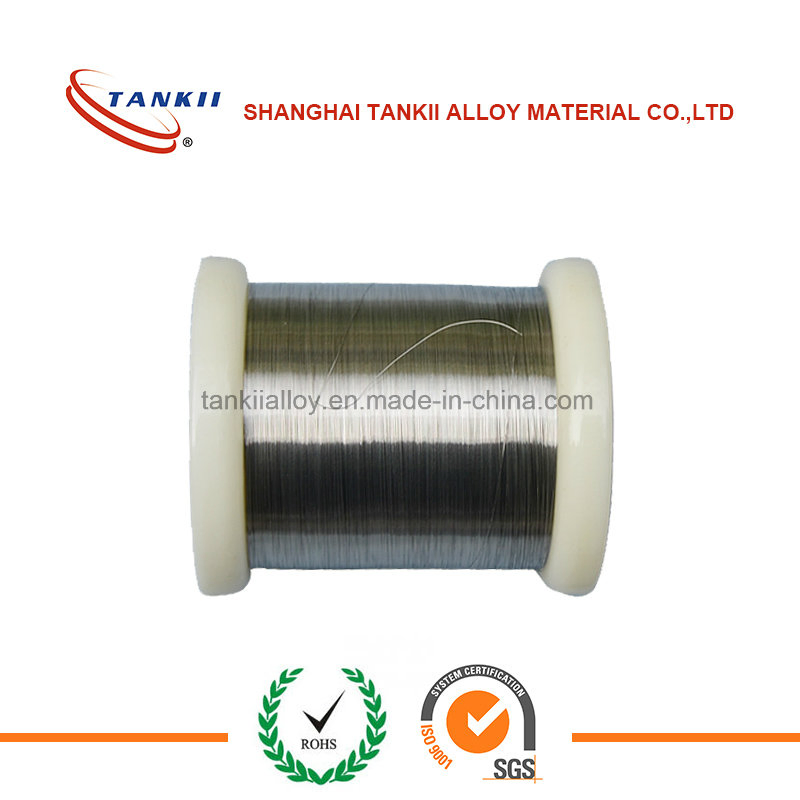

Nickel Wire

Applications of Nickel Wire
Eectric apparatus and chemical machinery,strong base of the filter ,valves grid, inner components of vacuum valves, components insides the electron tubes, lead
wire, supporting wire, battery production, vacuum coating, sparking electrodes, and heat exchangers
Shanghai Tankii Alloy Material Co., Ltd. is specialized in production of Ni-Cr Alloy, Cu-Ni Alloy, Fechral, thermocouple wire, pure nickel and other precision alloy materials in the form of wire, strip, rod, bar and plate.

Dimension and Tolerance (mm)
