Product Description

Forging Steel Round Bar C40 4130 1045-China LaiWu XinCheng

1.42crmo forged steel bar sizes we can offer;
Round bar: 200-1000mm

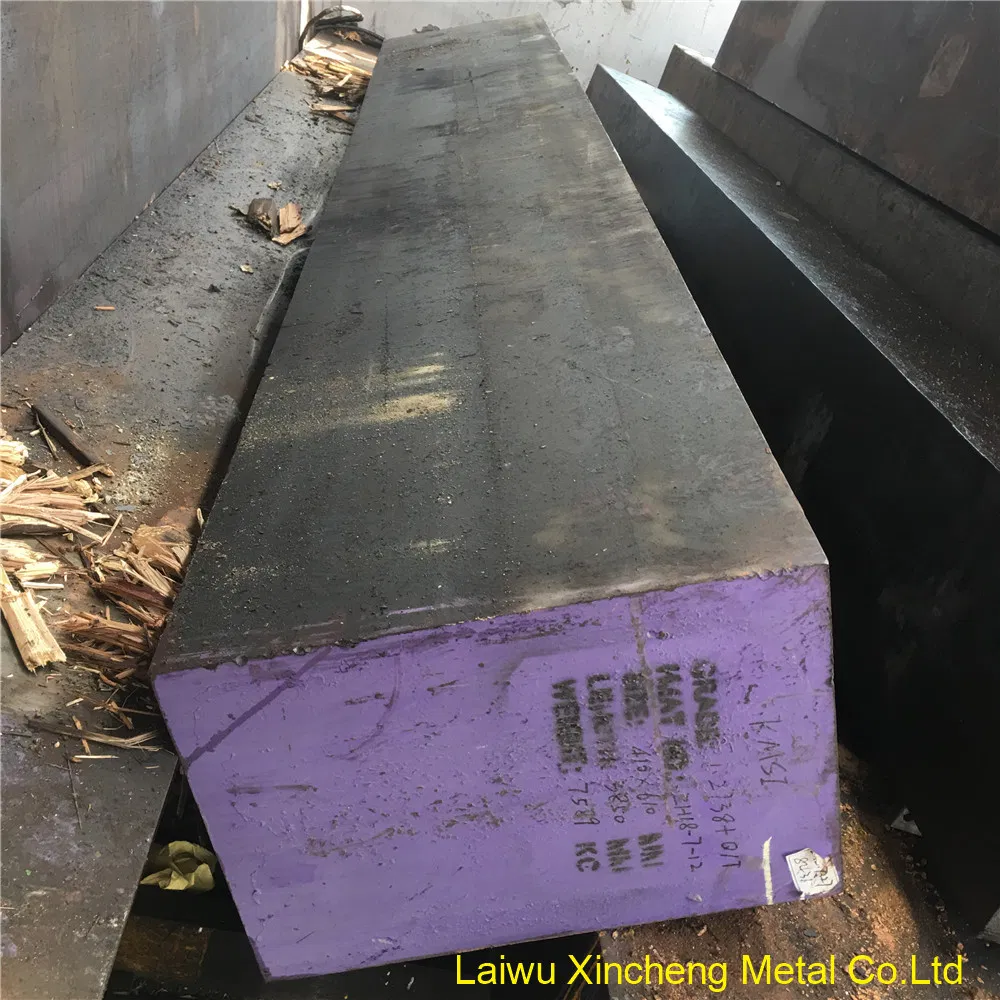

Square bar:150×150-600×600mm

2.Supply condition for 42crmo Forged steel bars:Black /Rough Machined /Rough turned

3.Futhur heat treatment for 42crmo forged steel :
Normalized
Annealed
Q&T(Quenched&Tempered)

4.42crmo Forged Steel round bar tolerance:
Black surface
Forged sizes up to 500mm (-0/+5mm)
Forged sizes above 500mm in diameter (-0/+8mm)
Machined surface to all sizes (-0/+3mm)

5.42crmo Steel Equivalent

Standard	AISI / SAE 4140
UNS	-
WERKSTOFF NR.	41CrMo4, 42CrMo4, 42CrMoS4, 43CrMo4
BS 970	708M40, 708A42, 709M40, En19, En19C
UNI	41CrMo4, 38CrMo4 (KB), G40 CrMo4, 42CrMo4
JIS	SCM 440, SCM 440H, SNB 7, SCM 4M, SCM 4
EN name	42CrMo4
EN #	1.7223, 1.7225, 1.7227, 1.3563

6.42crmo Forged steel chemical composition

Standard	Grade	C	Si	Mn	P	S	Cr	Mo
ASTM A29	4140	0.38-0.43	0.15-0.35	0.75-1.00	≤ 0.035	≤ 0.04	0.8-1.1	0.15-0.25
	42CrMo4	0.38-0.45	≤ 0.4	0.6-0.90	≤ 0.025	≤ 0.035	0.9-1.2	0.15-0.30
EN10083	1.7225	0.38-0.45	≤ 0.4	0.6-0.90	≤ 0.025	≤ 0.035	0.9-1.2	0.15-0.30
JIS G4105	SCM440	0.38-0.43	0.15-0.35	0.6-0.85	≤ 0.035	≤ 0.04	0.9-1.2	0.15-0.30
GB 3077	42CrMo	0.38-0.45	0.17-0.37	0.5-0.80	≤ 0.035	≤ 0.035	0.9-1.2	0.15-0.25
BS 970	EN19	0.35-0.45	0.15-0.35	0.5-0.80	≤ 0.035	≤ 0.035	0.9-1.5	0.2-0.40

7.42crmoSteel Application
42crmo steel finds many applications as forgings for the aerospace,oil and gas,automotive, agricultural and defense industries etc.
Typical applications for 42crmo steel uses include:forged gears,spindles,fixtures,jigs,collars,Axles,conveyor parts,crow bars,logging parts,shafts,sprockets,studs,pinions,pump shafts, rams, and ring gears etc

8.Quality control:
1. Melting Process: EAF/BOF+LF+VD resulting in ingots
2. Both ends cut by saw
3. Ratio of forging:minimum 3:1
4. Grain size of final product: according to ASTM E112 more than 5,preferred more than 8
5. Ultrasonic test: As per SEP1921 Class C/c or D/d

9.Heat treatment of 42crmo Steel
Quenched and Tempered (+QT) of EN19 Steel
1. Heat 42crmo steel slowly to 840-875°C;
2. Soak at this temperature then quench in oil;
3. Temper as soon as 42crmo reach room temperature (20°C);
4. Heat uniformly to the suitable temperature of 560°C;
5. Withdraw the material from the furnace and cool in the air.
Annealing of 42crmo Alloy Steel
1. Heat the 42crmoslowly to 800-850°C and allow enough time.
2. Cool slowly in the furnace to 480°C followed by air cooling

10.MOQ: one piece per size/grade

11.Payment term: FOB CIF CFR EXW and so on

12.Delivery time : 7 to 30 days after deposit received.
