Product Description

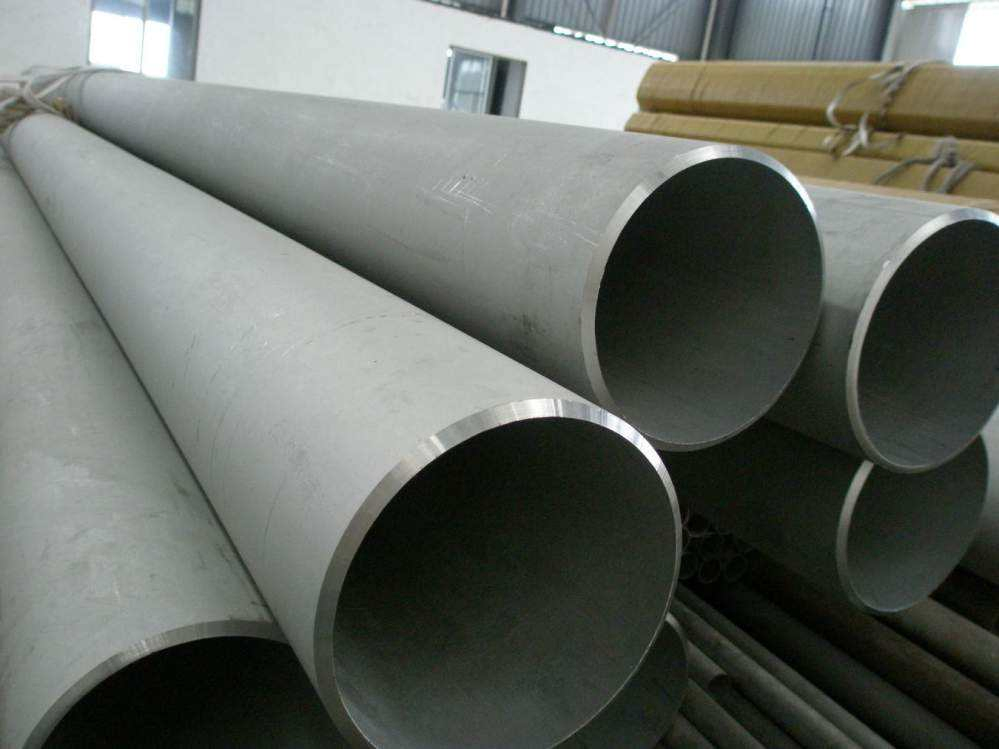

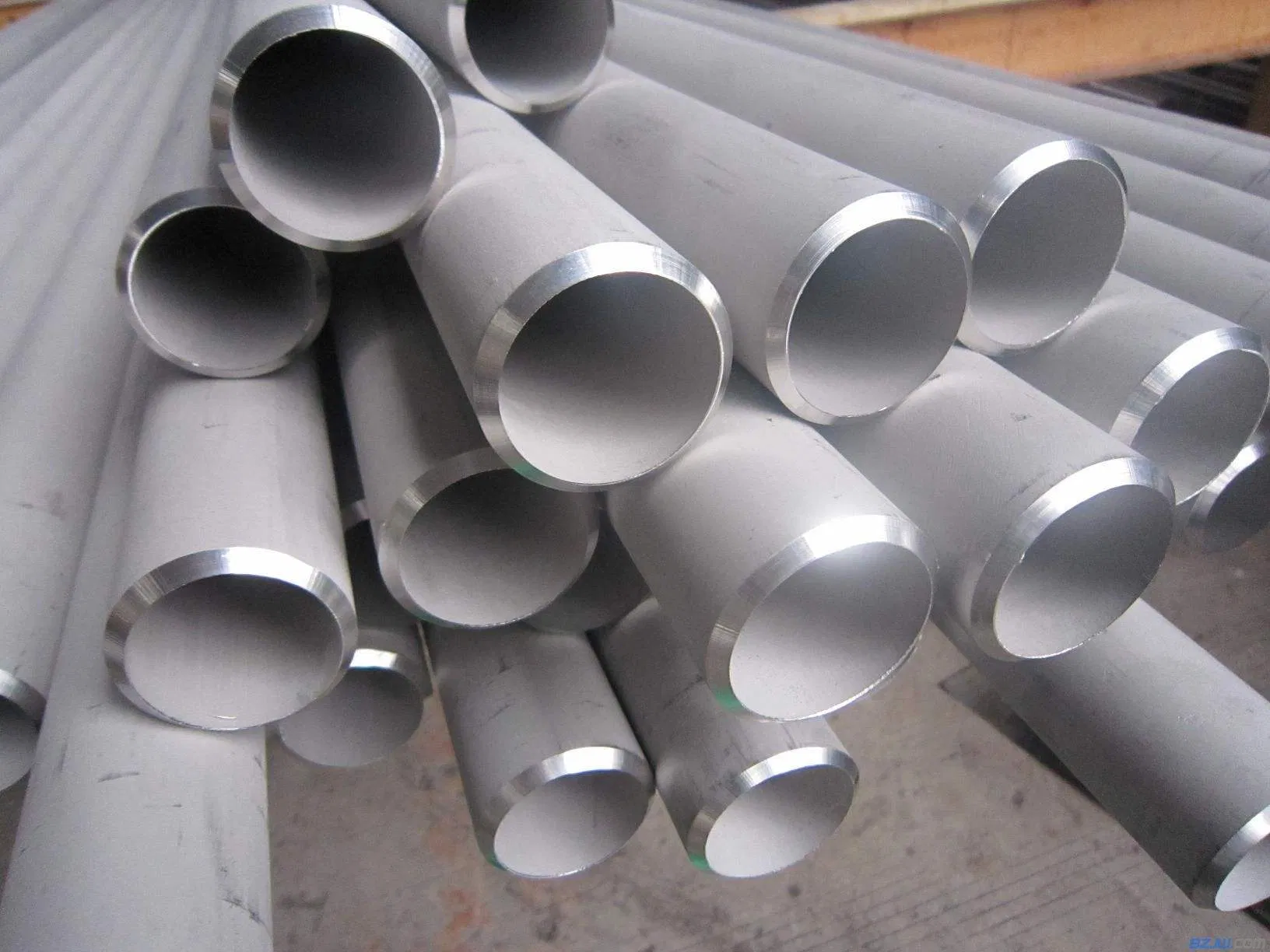

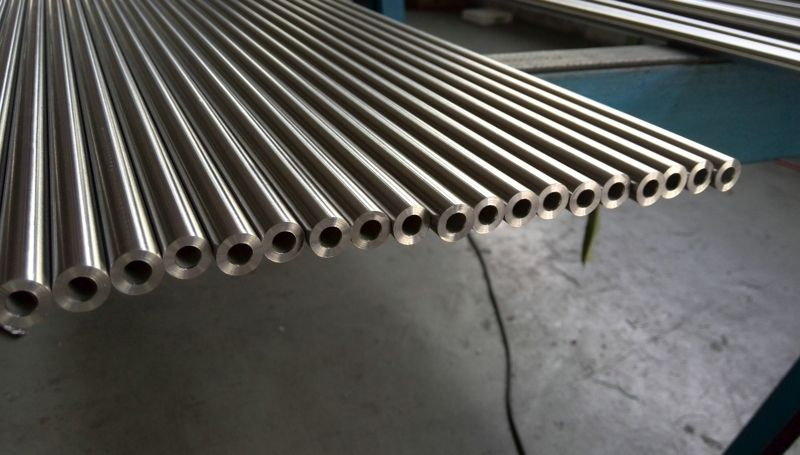

Product Name:Cold Rolled SUS304 Seamless Stainless Steel Tube/Pipe

Specification: ASTM A312/A312M-2015

Grade: SUS304

Chemical Composition(%):

C	Mn	P	S	Si	Cr	Ni	Mo
≤0.08	≤2.00	≤0.045	≤0.030	≤1.00	18.0-20.0	8.0-11.0	-

Size:ASME B36.19M/ASME B36.10M or Customized

From OD DN6 [NPS1/8"] TO DN500 [NPS20"], THICKNESS SCH 5/5S 10/10S 20 30 40/40S 60 80/80S 120 140 160 STD XS XXS, LENGTH 0.5M-11.8M

Dimension Tolerance: as per ASTM A999/A999M

Producing Process: Cold Pilger, Cold Rolled, Cold Drawn

Heat Treatment: Solution Annealing with Temperature 1040ºC Min.

Tension Properties: Tensile Strength ≥ 485MPa [70ksi], Yield Strength ≥ 170MPa [25ksi], Longitudinal Elongation ≥ 35%

Surface Finish: Pickled, Passivated, Mechanical Polished

Pipe End Preparation: Plain End [PE], Bevel End [BE], Square Cut

Package Style: Bundle with fabric film, Plywood Case
