Cold Drawn Seamless Stam 290 Ga JIS G3472 Carbon Steel Tube Automotie Tube
Cold Drawn Seamless STAM 290 ga JIS G3472 Carbon Steel Tube Automotie TubeAutomotive steel pipeOD: 6mm - 610mmWT: 1mm-25mmSAE 1006~1026 / JIS G 4051K / KS D 3752STAM 290GA~440G (G type) / STAM 470G~540G (H type)STKM 11~20Applications1. Automotive- Couplings- Suspension- Mount- Compressor- Chassis Bu......
Send Inquiry
Product Description
Cold Drawn Seamless STAM 290 ga JIS G3472 Carbon Steel Tube Automotie Tube
Automotive steel pipe
OD: 6mm - 610mm
WT: 1mm-25mm
SAE 1006~1026 / JIS G 4051K / KS D 3752
STAM 290GA~440G (G type) / STAM 470G~540G (H type)
STKM 11~20

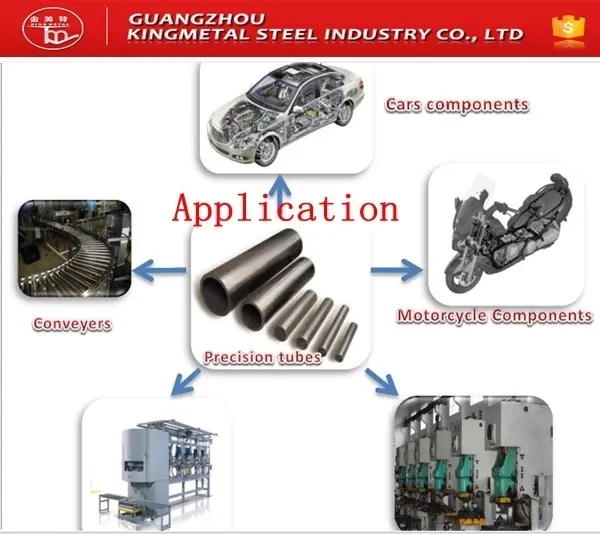

Applications
1. Automotive
- Couplings
- Suspension
- Mount
- Compressor
- Chassis Bushing
- Shock absorber
2. Engineering machine Purpose
- Locker arm Shaft
- Tie Rod
- Fuel Pump Housing Tube
3. Hydraulic, Pneumatic Pressure Purpose
- Cylinder for Heavy construction vehicle and Engineering machine
- Mother Tube
Product Show:
Application:
Automotive steel pipe
OD: 6mm - 610mm
WT: 1mm-25mm
SAE 1006~1026 / JIS G 4051K / KS D 3752
STAM 290GA~440G (G type) / STAM 470G~540G (H type)
STKM 11~20
Applications
1. Automotive
- Couplings
- Suspension
- Mount
- Compressor
- Chassis Bushing
- Shock absorber
2. Engineering machine Purpose
- Locker arm Shaft
- Tie Rod
- Fuel Pump Housing Tube
3. Hydraulic, Pneumatic Pressure Purpose
- Cylinder for Heavy construction vehicle and Engineering machine
- Mother Tube
| MECHANICAL PROPERTIES | |||||
| 1 | Hardness | : - | |||
| 2 | Elongation | : Min 40% | |||
| 3 | Tensile Streng | : Min 30 kgf/mm2 (290 N/mm2) | |||
| 4 | Yeild Strength | : Min 18 kgf/mm2 (175 N/mm2) | |||
| 5 | Test Bending. | : | |||
| CHEMICAL COMPOSITION | |||||
| 1 | Carbon | : 0,12 max | |||
| 2 | Mangan | : 0,60 max | |||
| 3 | Silicon | : 0,35 max | |||
| 4 | Phosfor | : 0,035 max | |||
| 5 | Sulfur | : 0,035 max | |||
