Product Description

* Usage:

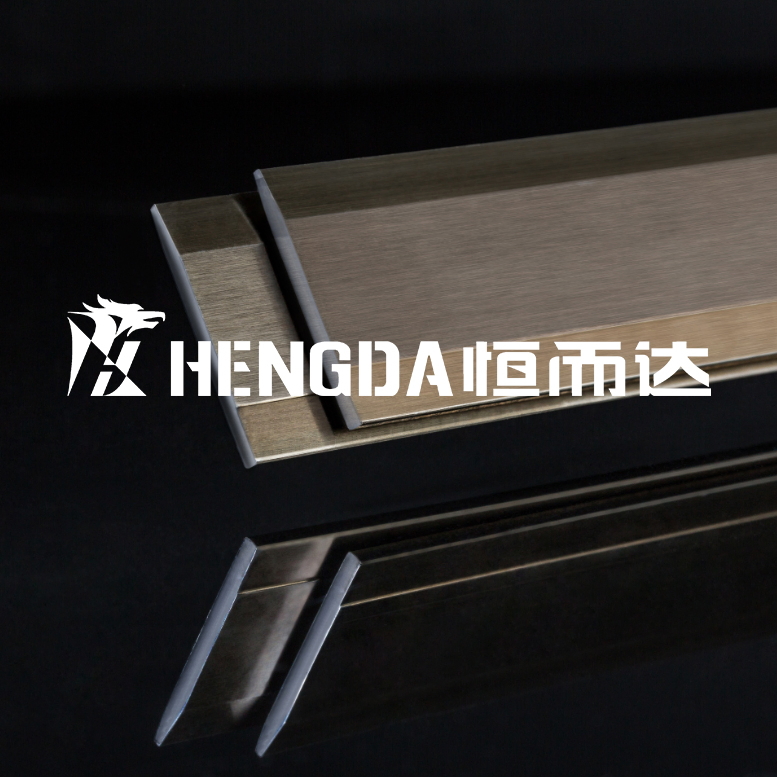

- Clicking/cutting die steel is specially designed & developed for Die Cutting, and it can be formed into different shapes according to user's pattern designs.

- Applicable to cut: plywood, insole, sole material, textiles, leather goods, lining fabrics, insulating material, plush, upholstery fabrics, mats, upper leather, cardboard/boxes, rubbers, gaskets, etc.

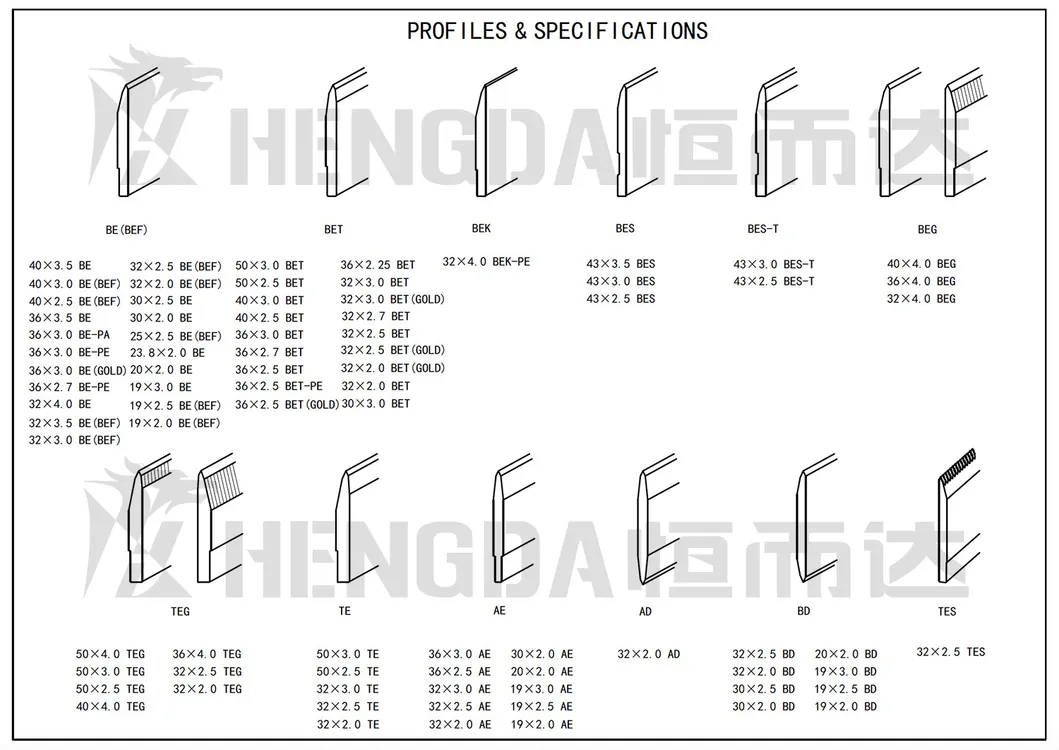

* Series: BE, BD, BEF, AE, AD, TEG, TE, BES, TES, ZIGZAG, etc....Please contact us for customized types.

** Popular Series: BD, BE, AE, TEG

*** SELF-OWNED BRANDS: LING YING, HAI SHARK

Rule Die Steel, Cutting Die Steel, Rule Steel for Making Steel Rule Die, Cutting Dies, Cookie-Cutter Dies, Flatbed Steel Rule Die, Rotary Die, Textiles,

Rule Die Steel, Cutting Die Steel, Rule Steel for Making Steel Rule Die, Cutting Dies, Cookie-Cutter Dies, Flatbed Steel Rule Die, Rotary Die, Textiles,

Product Tolerance
Height ≤36mm	±0.20mm
Height >36mm	±0.25mm
Straightness	±1.0mm/1m L
Flatness	≤3.0‰*H
Cross camber	piece:±10mm/1m L coil:±20mm/1m L
Twist	2°/1m L
Thickness Tolerance
Thickness (mm)	Tolerance
2.0	±0.05
2.3	±0.05
2.5	±0.06
2.7	±0.06
3.0	±0.07
3.5	±0.07
4.0	±0.07

Other dimension and profile available as per customers requests

COMPANY HIGHLIGHTS:

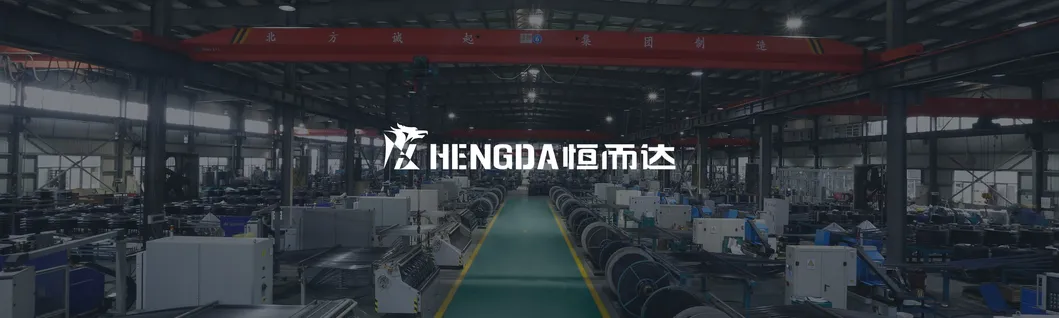

1. Hengda was established in 1995, headquartered in Fujian Province, China with 5 branch plants at present. The total occupied area is close to 1,779,504.74 sq.ft and the building area is close to 430,556 sq.ft.
2. More than 550 employees, specializing in the cutting fields of new materials.
3. The company was honored as National Hi-Tech Enterprise.
4. Hengda's main products: rule die steel, bi-metal band saw blade, steel rule, rotary cutting rules, utility knife
5. The production capacity for rule die steel is 60million meters/year, bi-metal band saw blade 10million meters/year, steel rules (flatbed) 30million meters/year, rotary cutting rules 2million meters/year at present.

6. It has the most advanced latest production facility, imported superior raw materials, imported equipment, and production lines.
7. Strong professional R & D team, leading by more than 30 senior engineers.
8. Self-innovated and self-designed products, self-owned brands.
9. 100% strict Q & A control and 100% inspection pre-delivery.
10. ISO:9001 certified company, patents owned company.
11. ON-TIME delivery.
12. Ingenious craftsmanship, sincere services.

* Product Highlight:

- The scientific and technological achievement in RULE DIE STEEL stands at the world-leading level, acknowledged by China Light Industry Council
- Combination of perfect bendability & excellent hardness
- High-frequency treated cutting edge ensures itself with extra long-duration life
- The sharp and clean finish of cutting edge accomplished by the fine grinding process
- A mirror-like finish of the back edge
- Self-owned brands: LING YING, HAI SHARK, best prices in the market !
