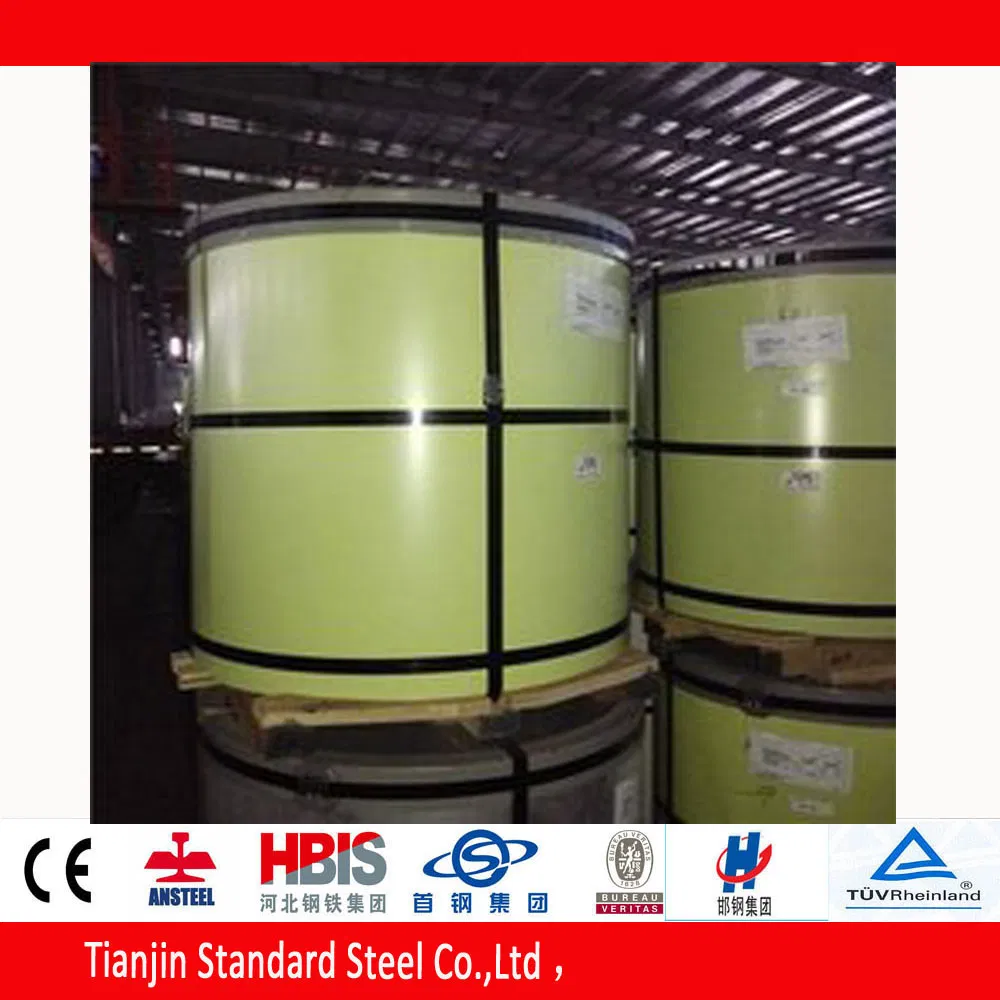

Prepaited Steel Coil Ral 9001 9002 9003 5050

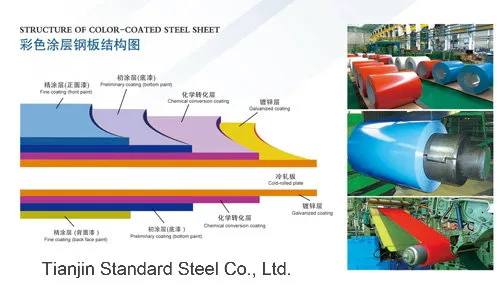

Description: Pre-painted Galvanized Steel-ASTM653Zinc Coating120 gsm to 275 gsm (LFQ)Thickness Range0.30 mm to 0.80 mmWidth1220 mm or any combination of slit widthCoil WeightUp to 6 MTCoil ID508 mmCoating5 micron of primer and 20 micron of top coat on top side. 5 micron of service coat on back side ......
Send Inquiry
Product Description
Description:
Packaging Details:
How to make an order?
· Sample approval
· Client make 30% deposit or open LC after confirming the PI
· Client visit our workshop to check quality or arrange Third-party to inspect the cargos.
· After passed Inspection, then we arrange shipment with shipping agent.
· Supplier arrange necessary documents and send copy of these documents
· Client remit balance payment
· Supplier send original documents or telex release the goods
· Quality warranty for 2year after shipment
After sales service
· After receive the goods, We hope to get your feedback at first time.
· We could provide installation guide, if you need, we could give you global service.
· Our Sales are 24-hours online for your request.
Professional sales
· We value every inquiry sent to us, ensure quick competitive offer.
· We cooperate with customer to bid tenders. Provide all necessory document.
· We are a sales team, with all techinical support from engineer team.
Welcome to contact with us!
| ||||||||||||||||
| |||||||
| Quality Testing Specifications | ||
| Test Undertaken | Standard Data | Remarks |
| Organic Coating Thickness | ||
| Top Coat | 20-25 micron | |
| Back Coat | 5-10 micron | |
| Specular Gloss @ 60 deg | 20-95% | |
| Pencil Hardness | 2 | |
| Scratch Resistance | 1500 gms | |
| Flexibility | ||
| Reverse Impact | 40"/lbs | No cracks |
| Bend Test | 2 T | Can go up to 1 T |
| Erichsen Test | >5 mm | No tape off |
| Cross Hatch | Pass | No tape off |
| Corrosion Resistance | ||
| Salt Spray | 500 hrs | Polyester |
| Salt Spray | 1000 hrs | PVDF |
| Humidity | 1000 hrs | |
| QUV Weatherometer | 1000 hrs | |
| Acid Resistance | 24 hrs | 5% HCL Solution for Steel |
| Alkali Resistance | 24 hrs | 5% NaOH Solution |
| Doublr Rub Test | 50 Double Rub of MEK | |
| Boiling Water | 1 h | |

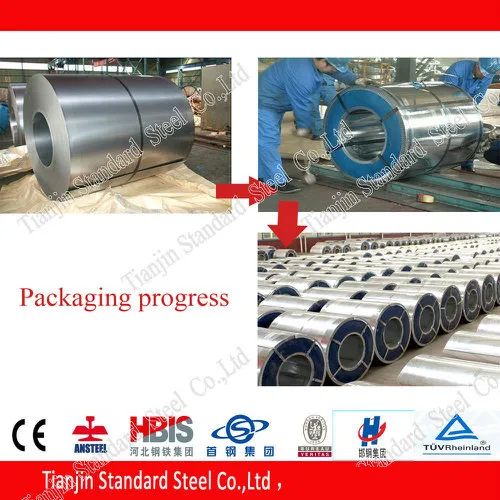

Packaging Details:
How to make an order?
· Sample approval
· Client make 30% deposit or open LC after confirming the PI
· Client visit our workshop to check quality or arrange Third-party to inspect the cargos.
· After passed Inspection, then we arrange shipment with shipping agent.
· Supplier arrange necessary documents and send copy of these documents
· Client remit balance payment
· Supplier send original documents or telex release the goods
· Quality warranty for 2year after shipment
After sales service
· After receive the goods, We hope to get your feedback at first time.
· We could provide installation guide, if you need, we could give you global service.
· Our Sales are 24-hours online for your request.
Professional sales
· We value every inquiry sent to us, ensure quick competitive offer.
· We cooperate with customer to bid tenders. Provide all necessory document.
· We are a sales team, with all techinical support from engineer team.
Welcome to contact with us!
