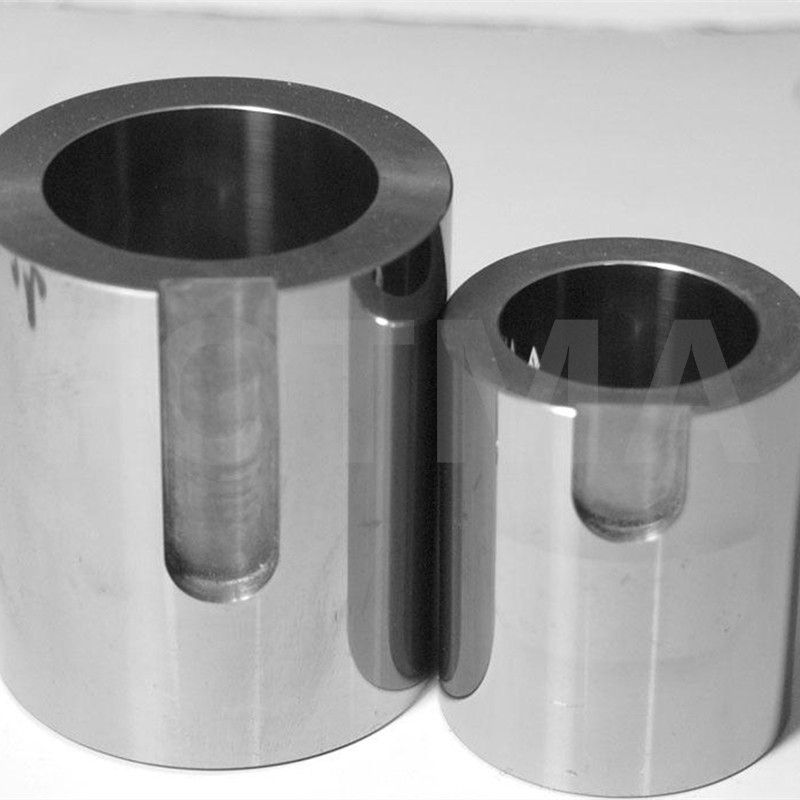

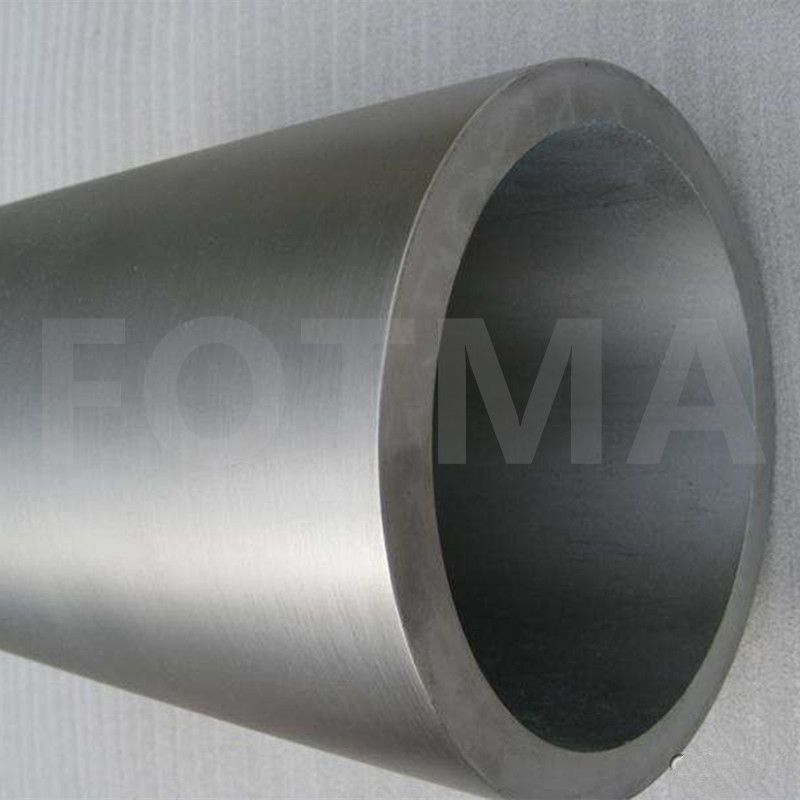

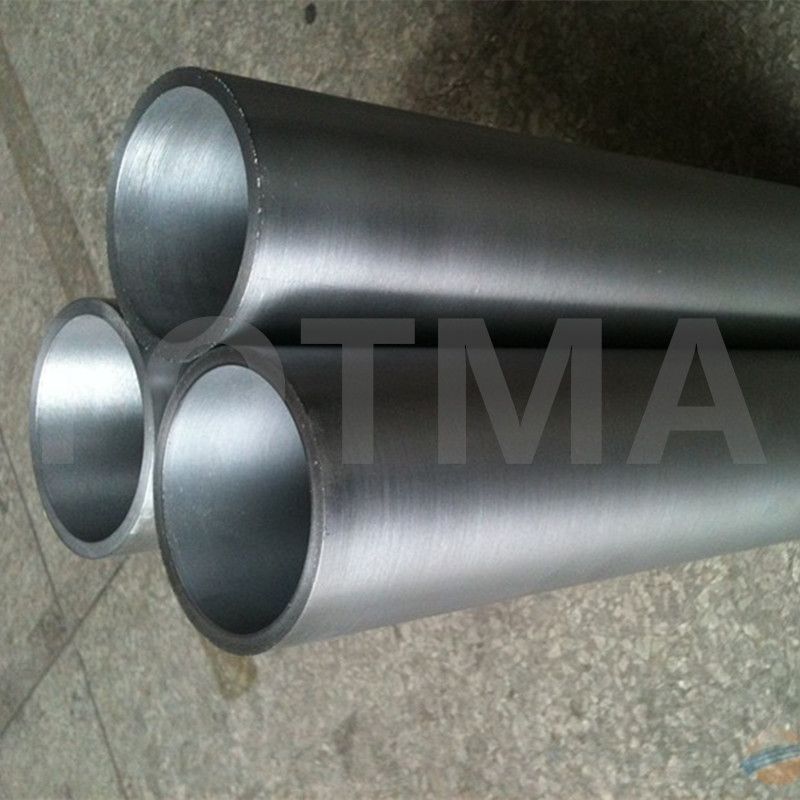

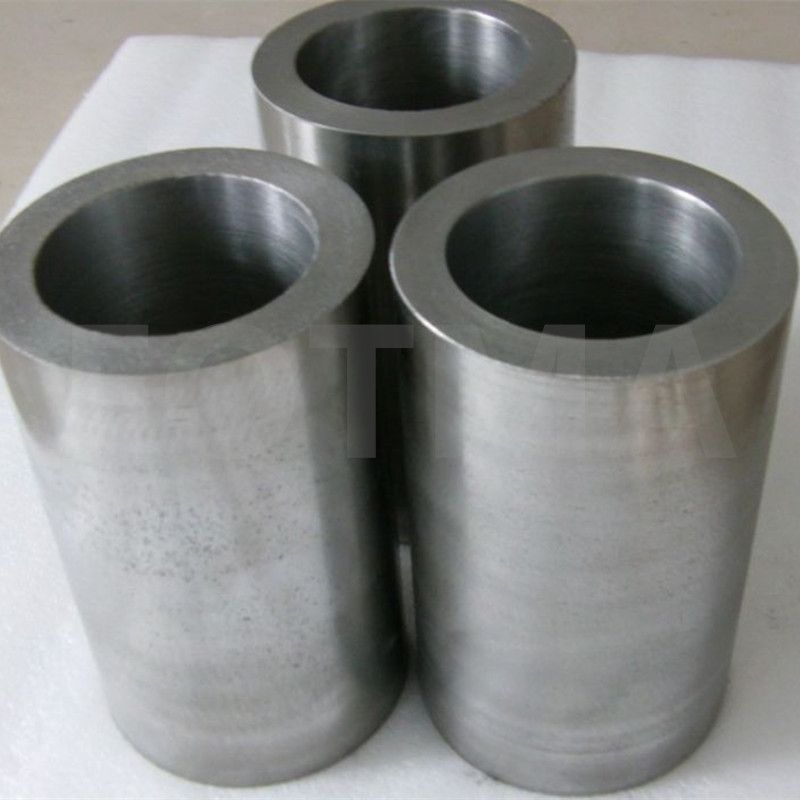

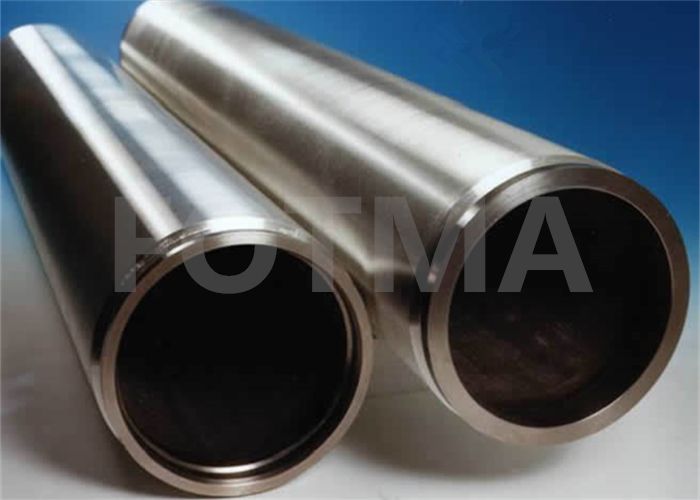

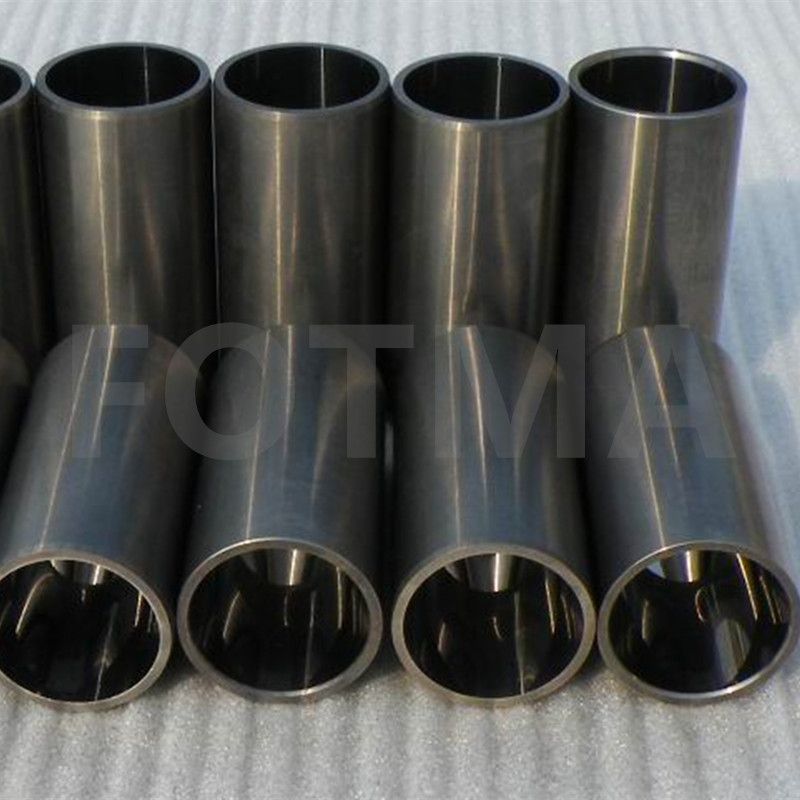

Molybdenum Tube for Sputtering Target 99.95% Pure Molybdenum Pipe

Molybdenum Pipe SpecificationsGrade: Mo1,TZM,MoLAPurity :> =99.95% quick delivery:within 15daysMelting Point: 2610 °CBoiling Point: 5560 °CDensity: 10.22 g/cm3 Size Chart of Molybdenum Pipes: Diameter(mm)Wall thickness(mm)Length(mm)30-502~10 <100050-1003~15100-1503~15150-200......

Send Inquiry

Product Description

Molybdenum Pipe Specifications

Grade: Mo1,TZM,MoLA
Purity :> =99.95%
quick delivery:within 15days
Melting Point: 2610 °C
Boiling Point: 5560 °C
Density: 10.22 g/cm3

Size Chart of Molybdenum Pipes:

Diameter(mm)	Wall thickness(mm)	Length(mm)
30-50	2~10	<1000
50-100	3~15
100-150	3~15
150-200	5~20
200-300	8~20
300-400	8~30
400-450	8~30
450-500	8~30

Application of Molybdenum Pipe

  1) Molybdenum pipes are widely used as the contact materials in silicon controlled rectifier diodes, transistors and thyristors.
  2) Molybdenum pipes are used as mounting material for power semiconductor devices.
  3) Molybdenum plate are used as heat sink bases etc.

Furthermore we can supply other Molybdenum Products, like Molybdenum Sheets, Molybdenum Plates, Molybdenum Rods, Molybdenum Electrodes, TZM Molybdenum Alloy Boats, Molybdenum Boats, Molybdenum Wires, Molybdenum cutting wires, Molybdenum Bars, Molybdenum Foils, Molybdenum discs, Molybdenum target etc.

Testing Report of Pure Molybdenum Material:

Commodity			Molybdenum Target
Grade			Mo-1
Size			Customized
Log No
Quantity
Density			≥10.18g/cm3
Hardness			HB170
Standard			GB, ASTM
Chemical Composition(%)
Mo(%)	Fe	Ni		Si	Al	Ca	Mg
Balance	<0.010	<0.005		<0.010	<0.002	<0.002	<0.002
	C	O		N
	<0.010	<0.008		<0.003
