Why Is Zoom Lens Assembly Revolutionizing Optical Precision and Imaging Performance?

The Zoom Lens Assembly has become an essential cornerstone in modern optical and imaging systems, driving innovation across industries such as surveillance, medical diagnostics, consumer electronics, automotive vision, and industrial automation.

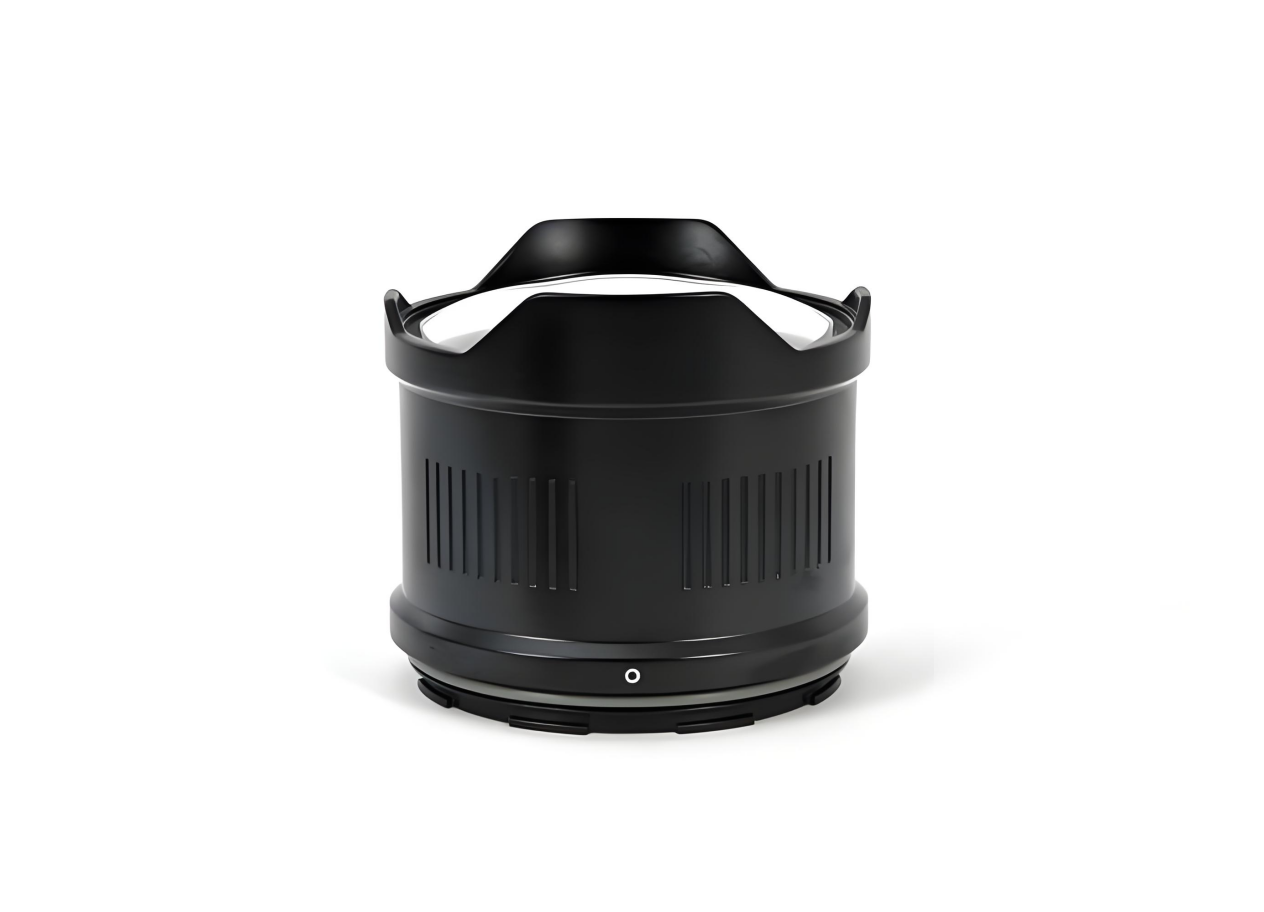

A zoom lens assembly is a multi-component optical system designed to provide variable focal lengths while maintaining a clear, focused image throughout the range of magnification. It integrates lenses, mechanical housings, and sometimes actuators or electronic controls to allow smooth transitions between wide-angle and telephoto perspectives. This flexibility enables precise control over field of view and image detail without physically changing lenses, a feature critical for systems requiring both versatility and compactness.

What Defines the Engineering Excellence Behind Zoom Lens Assembly?

The engineering of a zoom lens assembly lies at the intersection of optics, mechanics, and precision manufacturing. The system’s complexity arises from the need to achieve high image fidelity across a variable focal range while minimizing optical aberrations, distortion, and mechanical play. Each assembly is designed through precise alignment and calibration processes to ensure smooth zoom transitions and consistent image performance.

Key Technical Specifications of a Professional Zoom Lens Assembly

Each parameter contributes directly to image quality and operational performance. For example, a multi-layer anti-reflection (AR) coating minimizes light loss and ghosting, while a precision mechanical housing ensures the lens maintains exact alignment even under vibration or temperature changes.

Why Is Zoom Lens Assembly Becoming Central to Next-Generation Optics?

1. Enhanced Optical Adaptability

Zoom lens assemblies empower devices to adapt dynamically to various imaging scenarios. In security surveillance, they allow for both panoramic monitoring and long-range identification without manual lens swapping. In medical imaging, they enable precise magnification adjustments during live procedures, improving diagnostic accuracy and surgical visualization.

2. Miniaturization and Integration

With the advancement of micro-optics and CNC manufacturing, compact zoom lens assemblies now achieve performance previously limited to larger systems. This evolution supports integration into smartphones, drones, and compact industrial cameras, making high-performance imaging accessible across multiple sectors.

3. Automation and AI Synergy

Modern zoom lens assemblies are being integrated with AI-driven auto-focus algorithms and motorized control systems, allowing real-time image optimization. This intelligent automation reduces latency and human error, essential for applications such as automated inspection, machine learning vision, and robotics.

4. Durability and Environmental Stability

High-end zoom assemblies employ ruggedized designs capable of withstanding dust, humidity, and thermal stress. With precision seals and low-expansion materials, these assemblies maintain optical alignment and performance stability under challenging environmental conditions.

5. Future Trend: Adaptive and Hybrid Optics

The future of zoom lens assembly is shifting toward adaptive optical systems that incorporate electronically tunable elements, liquid lenses, or variable refractive index materials. These innovations promise faster zooming, lighter designs, and improved energy efficiency.

As industries demand sharper, faster, and smarter imaging systems, zoom lens assemblies are set to remain at the forefront of optical evolution.

How Are Zoom Lens Assemblies Manufactured and Calibrated for Precision?

The precision manufacturing of a zoom lens assembly involves a sequence of high-accuracy processes that blend optical engineering, surface polishing, CNC machining, and robotic alignment. The ultimate goal is to produce a lens system that offers consistent zooming, low distortion, and minimal chromatic aberration.

1. Optical Design and Simulation – Advanced ray-tracing software models how light passes through each element, optimizing curvature, thickness, and spacing.

2. Lens Element Fabrication – High-precision grinding and polishing machines achieve nanometer-level surface accuracy.

3. Coating Application – Multi-layer AR and hard coatings are applied in vacuum chambers to improve light transmission and durability.

4. Mechanical Housing Assembly – Aluminum or brass housings are machined to precise tolerances to maintain coaxial alignment.

5. Optical Centering and Alignment – Automated alignment systems adjust lenses to sub-micron accuracy using laser measurement tools.

6. Functional Testing and Quality Control – Every unit undergoes modulation transfer function (MTF) testing, focus consistency checks, and thermal stress evaluations.

Typical Performance Tests Include:

• MTF Measurement for resolution and contrast

• Vibration Endurance to ensure focus stability

• Temperature Cycle Testing to confirm environmental reliability

• Zoom Smoothness Test for mechanical fluidity

This meticulous process ensures that each zoom lens assembly meets international optical standards (such as ISO 10110 or MIL-STD-810) and performs reliably over its operational lifespan.

Common Questions About Zoom Lens Assembly

Q1: What are the main differences between a zoom lens assembly and a fixed focal lens assembly?
A: A zoom lens assembly provides variable focal lengths within one optical unit, allowing continuous magnification without refocusing or changing lenses. In contrast, a fixed focal lens assembly offers only one focal length but may deliver slightly higher image clarity due to fewer optical elements. Zoom lenses prioritize versatility and adaptability, whereas fixed lenses emphasize optical purity and simplicity.

Q2: How does the optical zoom ratio affect image quality in a zoom lens assembly?
A: The optical zoom ratio determines the range of magnification achievable by the lens. A higher zoom ratio provides greater flexibility but also increases design complexity. Engineers must carefully balance lens curvature, refractive index, and optical coating to ensure consistent resolution across the entire zoom range. High-quality zoom assemblies maintain sharpness and minimal aberration even at maximum magnification due to superior optical alignment and calibration.

The Future Outlook: Where Zoom Lens Assembly Is Heading

The next decade will mark a transformative era for zoom lens technology, driven by artificial intelligence, nanofabrication, and optical computing. Emerging materials such as liquid crystal lenses and MEMS-based actuators will make optical zoom faster, thinner, and more energy-efficient. In tandem, AI-assisted imaging will refine auto-focus and exposure adjustments in real time, enhancing both consumer and industrial applications.

In the realm of autonomous systems, the integration of zoom lens assemblies with LiDAR and hyperspectral sensors will elevate object recognition accuracy, contributing to safer navigation and intelligent decision-making. Similarly, in medical and laboratory imaging, enhanced zoom precision will accelerate breakthroughs in minimally invasive procedures and biomedical research.

Zoom lens assembly is no longer just a component—it is a bridge between optical innovation and applied intelligence. As industries seek sharper perspectives, higher speed, and smarter vision systems, the demand for superior optical assemblies will continue to rise.

Precision Meets Innovation — Powered by Tranchil

The evolution of zoom lens assembly embodies a perfect balance between precision, functionality, and adaptability. Companies seeking reliable optical solutions can benefit from customized designs, durable components, and performance consistency engineered by professionals in the field.

Tranchil is dedicated to advancing optical assembly technology with precision manufacturing expertise and rigorous quality assurance standards. With continuous innovation and a focus on customer-oriented design, Tranchil delivers zoom lens assemblies that meet the needs of diverse industries—from industrial automation to intelligent surveillance.

For organizations aiming to enhance imaging clarity and system performance, contact us to explore how Tranchil’s zoom lens assemblies can transform your optical capabilities and support your next-generation vision systems.
