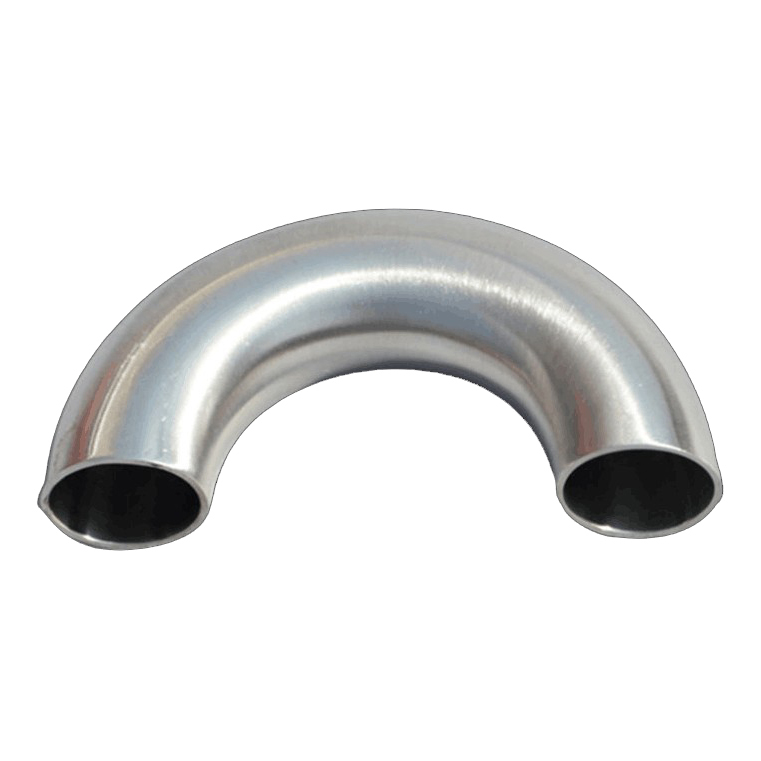

A Stainless Steel 180° Elbow is a precision-engineered pipe fitting designed to reverse the flow direction by forming a complete U-shaped turn. Widely used in chemical processing, petrochemical transport, HVAC lines, marine systems, water treatment plants, and industrial fluid networks, this elbow ensures stable flow redirection without turbulence or structural compromise.

What Is a Stainless Steel 180° Elbow and What Functions Does It Serve in Modern Piping?

A Stainless Steel 180° Elbow is a pipe fitting used to change flow direction by 180 degrees, allowing pipelines to loop back or reroute within compact spaces. Its design ensures smooth fluid transition while maintaining mechanical strength, corrosion resistance, and safe flow control. This fitting is essential in systems requiring uninterrupted circulation and efficient space management.

What Functions Does the Stainless Steel 180° Elbow Perform?

• Enables a full U-turn in pipelines

• Maintains pressure stability during directional change

• Minimizes turbulence, vibration, and flow loss

• Facilitates compact system layouts

• Supports high-temperature and high-pressure environments

• Ensures corrosion-resistant performance in harsh chemical and marine conditions

Key Product Parameters

These parameters allow engineers to select a precise configuration tailored to specific industry requirements, ensuring accuracy in installation and long-term performance reliability.

Why Do Industries Choose Stainless Steel 180° Elbows and Why Are They Critical to System Efficiency?

Industrial piping systems place heavy demands on fittings, especially when directional changes are required. The Stainless Steel 180° Elbow offers advantages that outperform many other materials and elbow types.

Why Is Stainless Steel Ideal for a 180° Elbow?

1. Superior Corrosion Resistance

The chromium-rich composition of stainless steel protects the elbow from rust, chemical attack, and high-salinity environments. This makes it suitable for industries such as marine engineering, desalination plants, chemical reactors, and food processing.

2. High Pressure and Temperature Endurance

Stainless steel maintains structural integrity in extreme operating environments, ensuring pipelines function safely under heavy loads.

3. Reduced Flow Turbulence

The smooth internal surface of stainless steel decreases friction, preventing flow disruption, noise, and pressure drops.

4. Extended Service Life

The long life cycle reduces downtime, replacement frequency, and overall maintenance costs—major concerns for industrial operators.

Why Is a 180° Elbow Necessary in Compact or Looping Systems?

• Saves installation space

• Allows loop circulation in heating/cooling systems

• Enables bypass design in water treatment and filtration equipment

• Facilitates redirection without multiple fittings, reducing leak points

Why Does Choosing the Correct Radius Matter?

• Long Radius (LR): Best for smooth flow, minimal pressure drop

• Short Radius (SR): Best for tight spaces where layout constraints exist

Selecting the correct radius ensures operational efficiency and prevents unnecessary energy loss.

How Does a Stainless Steel 180° Elbow Improve System Reliability and How Should It Be Installed?

The performance of a piping system depends not only on material quality but also on installation accuracy and compatibility. Understanding how a Stainless Steel 180° Elbow improves reliability helps engineers optimize system design.

How Does the Elbow Enhance Overall Reliability?

1. Eliminates Multiple Connections

Replacing two 90-degree elbows with one 180-degree elbow reduces the number of welds and potential leakage points.

2. Stabilizes Flow Direction

A single-piece bend ensures smoother redirection and reduces fluid impact stress.

3. Supports Hygienic Applications

The non-porous stainless steel surface supports sanitary conditions in food, beverage, medical, and pharmaceutical industries.

4. Withstands Mechanical Stress

High tensile strength prevents deformation under vibration, pressure surges, or thermal expansion.

How Should It Be Installed for Maximum Performance?

• Ensure the correct welding process based on pipe material

• Align the elbow precisely with pipeline direction

• Use appropriate schedule thickness to match system pressure

• Avoid excess heat during welding to prevent stainless steel sensitization

• Inspect for roundness, surface defects, and dimensional tolerance before installation

How to Select the Right Stainless Steel Grade?

304 / 304L

General-purpose, suitable for water, air, and mild chemicals

316 / 316L

Superior corrosion resistance, essential for saltwater and acids

321

Enhanced stability at high temperatures

904L

Premium grade for aggressive chemical environments

Choosing the correct grade prevents premature failure and ensures system longevity.

What Are the Future Trends of Stainless Steel 180° Elbows and What Questions Do Buyers Commonly Ask?

The future of industrial piping places importance on efficiency, sustainability, and precision engineering. These factors drive innovation in Stainless Steel 180° Elbow production.

Future Trends in Stainless Steel 180° Elbows

1. Higher Automation in Manufacturing

Advanced forming technology improves dimensional accuracy, ensuring tighter tolerances and better flow control.

2. Growth of Chemical and Marine Industries

Global expansion of desalination, battery production, and chemical processing will boost demand for corrosion-resistant elbows.

3. Enhanced Surface Treatments

Future elbows may feature improved pickled, passivated, or coated surfaces for extreme durability.

4. Sustainable Material Advancements

Recyclability and environmental performance of stainless steel align with green industrial initiatives.

5. Integration With Digital Monitoring

Large plants increasingly adopt smart piping systems, where future components may include tracking or wear indicators.

Common Questions and Answers About Stainless Steel 180° Elbows

Q1: What is the difference between a long-radius and short-radius 180° elbow?
A long-radius elbow has a smoother bend and minimizes pressure loss, while a short-radius elbow is used in tight spaces where layout limitations exist.

Q2: Can a Stainless Steel 180° Elbow handle high-pressure systems?
Yes. The pressure capability depends on the schedule (SCH rating). Higher schedules like SCH80 or SCH160 are suitable for high-pressure applications.

Q3: How does stainless steel compare to carbon steel in elbow fittings?
Stainless steel offers superior corrosion resistance, longer service life, and better performance in sanitary or chemical environments.

Q4: Is a seamless elbow better than a welded elbow?
Seamless elbows provide higher mechanical strength and are preferred for demanding applications, while welded elbows are cost-effective for general use.

Q5: Does a 180° elbow create more friction loss than other fittings?
It creates slightly more flow resistance due to the complete direction reversal, but a well-designed elbow minimizes turbulence.

Q6: Can Stainless Steel 180° Elbows be used for gas pipelines?
Yes, they are suitable for various gases, including compressed air, inert gases, and industrial gases, provided the correct grade and schedule are used.

Q7: What is the typical lifespan of a stainless steel elbow?
With proper installation and grade selection, it can last decades, even in demanding industrial conditions.

Q8: How should a Stainless Steel 180° Elbow be maintained?
Routine inspection for weld integrity, surface cleanliness, and corrosion ensures long-term operation.

Q9: Are custom sizes available?
Yes. Manufacturers often provide customized diameters, radii, and thicknesses to meet project requirements.

Q10: What industries use 180° elbows most frequently?
Oil and gas, chemical processing, shipbuilding, HVAC, water treatment, and food manufacturing are major sectors.

Stainless Steel 180° Elbows play an essential role in industrial piping systems by providing precise flow redirection, corrosion-resistant performance, and long-term reliability. With growing demands in chemical processing, marine engineering, and high-efficiency circulation systems, the importance of these elbows continues to increase. High-quality production, accurate parameter selection, and correct installation ensure steady performance in various industries. As the piping industry moves toward higher automation and sustainability, Stainless Steel 180° Elbows will remain fundamental components that support safe, efficient, and durable pipeline networks. For projects requiring dependable fittings, products from HengDi provide reliable quality and engineering strength suitable for complex industrial needs.
For more product information or technical support, contact us anytime.
