Why Does Bright Annealed Finish Reduce Contamination Risk in Ultra Clean Environments
2026-04-14

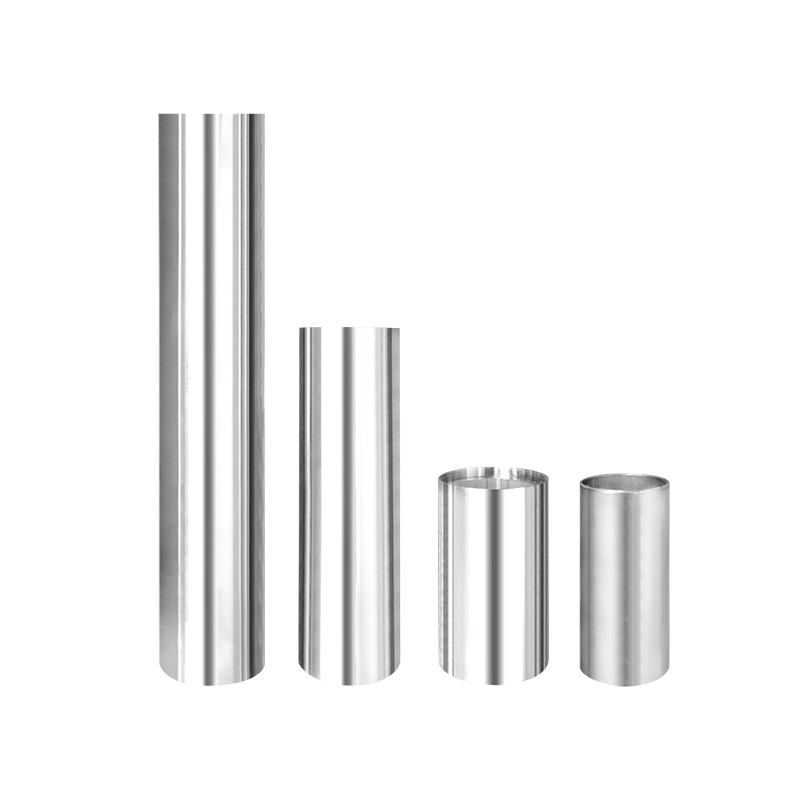

In ultra clean environments such as pharmaceutical manufacturing, semiconductor fabrication, and biotechnology research, material selection is critical. The Bright Annealed Stainless Steel Welded Pipe has emerged as the industry standard for reducing contamination risk. At HengDi, we engineer these pipes with a specialized bright annealing process that creates an exceptionally smooth, passive surface. This finish inherently minimizes particle adhesion, bacterial growth, and chemical residue retention.
The Science Behind Bright Annealed Surface Performance
The bright annealing process occurs in a controlled atmosphere furnace with hydrogen or dissociated ammonia. This prevents oxidation during heat treatment. The result is a native chromium-rich oxide layer that is both uniform and microscopically smooth. Unlike mechanically polished or pickled surfaces, a bright annealed finish has no embedded abrasives, no surface fractures, and no residual polishing compounds.
| Property | Bright Annealed Finish | Mechanically Polished Finish |
|---|---|---|
| Surface roughness (Ra) | ≤ 0.4 µm | 0.6 – 1.2 µm |
| Passive layer integrity | Continuous, undisturbed | May be damaged or contaminated |
| Particle generation potential | Very low | Moderate to high |
| Chemical cleanliness | No residual compounds | Polishing wax or abrasives possible |
Why Contamination Risk is Dramatically Lower
Three primary mechanisms explain why Bright Annealed Stainless Steel Welded Pipe outperforms other finishes. First, the ultra-smooth surface provides fewer crevices for microbial attachment or particle entrapment. Second, the intact passive layer prevents metal ion leaching, which could catalyze unwanted reactions. Third, cleaning and sterilization agents rinse off completely, leaving no chemical residues behind.
HengDi applies strict process controls during bright annealing, including atmosphere purity monitoring and cooling rate regulation. This ensures every Bright Annealed Stainless Steel Welded Pipe meets the most demanding specifications such as ASTM A270 and ASME BPE.
FAQ – Bright Annealed Stainless Steel Welded Pipe
Question 1: Can bright annealed welded pipe be used in high temperature ultra clean applications without losing its contamination resistance
Answer: Yes. The bright annealed finish maintains its passive layer up to approximately 400°C in oxidizing environments. HengDi verifies through passivation testing that the chromium oxide layer remains stable. However, exposure to reducing atmospheres or temperatures above 800°C may degrade the finish. For high temperature systems, we recommend confirming operating conditions and considering post-installation passivation if thermal cycling is severe.
Question 2: How does the weld seam area of bright annealed stainless steel welded pipe compare to the base metal in terms of contamination risk
Answer: The weld seam, when properly bright annealed, achieves nearly identical surface characteristics to the base metal. HengDi performs full tube bright annealing after welding, which eliminates heat tint and restores the passive layer across the entire component. Independent testing shows that contamination-related failures originate at weld seams only when post-weld bright annealing is omitted. Our process ensures the weld zone has comparable roughness and corrosion resistance, making it equally safe for ultra clean environments.
Question 3: What cleaning procedures are recommended before installing bright annealed stainless steel welded pipe in a sterile system
Answer: Even with a bright annealed finish, HengDi recommends a final cleaning sequence: first, degreasing with a non-ionic surfactant solution; second, rinsing with high-purity water (18 MΩ·cm resistivity); third, optional hot air drying at 60°C for one hour. Do not use abrasive pads or brushes containing carbon steel. Avoid chlorinated solvents that may leave chloride residues. Following these steps preserves the surface integrity while removing any shop handling contaminants. For critical pharmaceutical lines, we also advise verifying non-volatile residue levels below 0.5 mg per square foot.
Why HengDi Leads in Bright Annealed Solutions
HengDi combines automated welding lines with inline bright annealing furnaces. Every Bright Annealed Stainless Steel Welded Pipe undergoes eddy current testing, hydrostatic testing, and surface roughness verification. Our traceability system records heat number, annealing parameters, and inspection results for each batch.
Contact us today for technical datasheets, sample testing, or a customized quotation. Our engineers will help you specify the right Bright Annealed Stainless Steel Welded Pipe for your ultra clean environment. Reach HengDi via our website contact form or email sales team directly to discuss your contamination control requirements.
