Why Choose a Steel Penstock Gate?
2026-01-20
Summary
Steel penstock gates are critical components in water control systems, used across water treatment, hydroelectric, irrigation, and industrial applications. This article examines the design, advantages, material specifications, applications, and maintenance tips for steel penstock gates. FYL offers high-quality steel penstock gates that combine durability, corrosion resistance, and reliable water sealing performance to meet diverse operational demands.
Table of Contents
Overview of Steel Penstock Gates

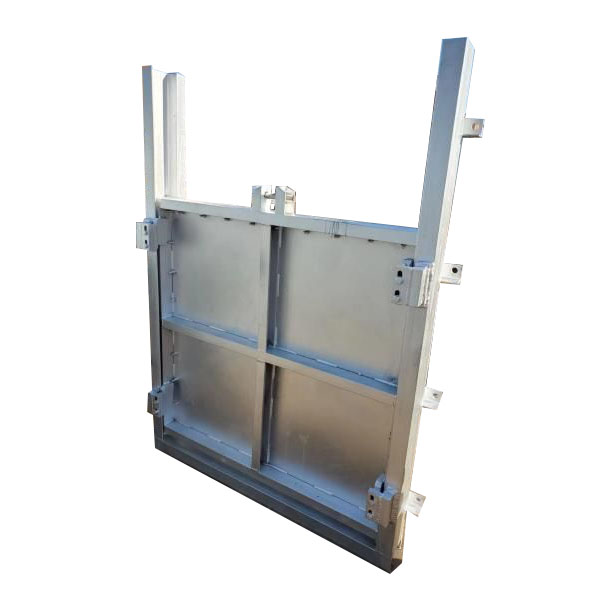

Steel penstock gates are mechanical devices designed to control water flow in channels, reservoirs, and pipelines. They act as barriers that can completely stop or regulate water, ensuring efficient water management. Unlike traditional cast iron gates, steel penstock gates are lightweight yet strong, providing long-term performance and resistance to corrosion.
Design and Material Specifications
Steel penstock gates are typically manufactured using high-grade stainless steel, which prevents rusting and maintains structural integrity under high pressure and prolonged exposure to water. The standard components include:
- Gate frame
- Gate plate
- Sealing strips
- Valve stem
- Brackets and supports
- Manual or electric actuator mechanisms
Below is a sample specification table for a typical FYL steel penstock gate:
| Parameter | Specification |
|---|---|
| Material | High-quality stainless steel (SS304/SS316) |
| Sealing Type | Rubber soft seal, single or double water seal |
| Operating Medium | Raw water, clear water, sewage (normal temperature) |
| Pressure Rating | Up to 1.0 MPa (customizable) |
| Size Range | 300 mm to 5000 mm width (customizable) |
| Surface Treatment | Polished stainless steel, anti-corrosion coating optional |
| Installation Type | Channel or flange-mounted |
Applications and Industry Uses
Steel penstock gates are widely used in sectors that require precise water flow control. Key applications include:
- Water treatment plants: For controlling inflow and outflow in treatment processes.
- Sewage and wastewater systems: To manage water levels and prevent backflow.
- Hydroelectric power stations: Regulating water for turbines.
- Irrigation systems: Controlling water distribution in agricultural fields.
- Industrial plants: Chemical, petroleum, and metallurgical industries for liquid control.
- Flood control and dams: Emergency closure and flow management.
Installation and Maintenance Tips
Proper installation and maintenance are critical to maximize the lifespan of steel penstock gates. Follow these recommendations:
- Ensure the mounting surface is level and free from debris before installation.
- Lubricate the valve stem and actuator mechanism regularly to prevent wear.
- Inspect sealing strips periodically for signs of wear or damage.
- Perform corrosion checks, particularly in wastewater or chemical applications.
- Test the gate operation under partial flow before full commissioning.
- Clean and flush channels to prevent sediment buildup that may affect sealing.
Key Advantages of Steel Penstock Gates
FYL steel penstock gates provide several advantages that solve common water control challenges:
- Durability: Stainless steel construction resists corrosion and structural fatigue.
- Reliable Sealing: Rubber soft seals ensure leak-free operation.
- Lightweight Design: Simplifies installation without compromising strength.
- Versatility: Suitable for raw water, clear water, and sewage at normal temperature.
- Low Maintenance: Long service life reduces operational downtime and maintenance costs.
Frequently Asked Questions
Q1: What materials are used for steel penstock gates?
A1: FYL steel penstock gates use high-quality stainless steel (SS304 or SS316) to prevent corrosion and provide long-term durability in water and wastewater applications.
Q2: Can the gate size be customized?
A2: Yes, FYL offers a wide range of sizes from 300 mm up to 5000 mm width, with custom designs available for specific applications.
Q3: How is the gate sealed to prevent leaks?
A3: Gates are equipped with rubber soft seals, either single or double water seals, ensuring a tight, leak-free closure even under varying water pressures.
Q4: What industries typically use steel penstock gates?
A4: They are commonly used in water treatment plants, sewage treatment, irrigation, hydroelectric power, industrial plants, and flood control systems.
Q5: How should maintenance be performed?
A5: Regular lubrication of the valve stem, inspection of sealing strips, corrosion checks, and channel cleaning are recommended to extend the gate’s service life.
Contact FYL for Steel Penstock Gates
FYL is committed to providing high-quality steel penstock gates tailored to your operational needs. Whether you require standard models or custom specifications, FYL offers reliable solutions at competitive prices. To discuss your requirements and receive personalized assistance, contact us today and ensure the best performance for your water control systems.
