Article Summary
Cylinder forging and shaft forging are important manufacturing processes for producing robust metal components used in heavy machinery, power generation, industrial equipment, and other demanding applications. However, selecting a suitable forging involves more than choosing a shape or steel grade. Buyers must consider load requirements, material characteristics, forging methods, heat treatment, machining allowances, dimensional tolerances, and inspection standards.
This guide explains how cylindrical and shaft forgings are manufactured, how their requirements differ, which quality indicators matter most, and how to evaluate a supplier before placing an order. It also outlines practical steps for reducing production risks, avoiding unnecessary machining costs, and improving component reliability throughout its service life.
1. Understanding Cylinder Forging and Shaft Forging
Forging is a metal-forming process in which compressive forces shape heated or, in some applications, cold metal into a required geometry. Compared with manufacturing a component entirely through machining, forging can provide a favorable internal grain structure and reduce the amount of material that must be removed from the starting stock.

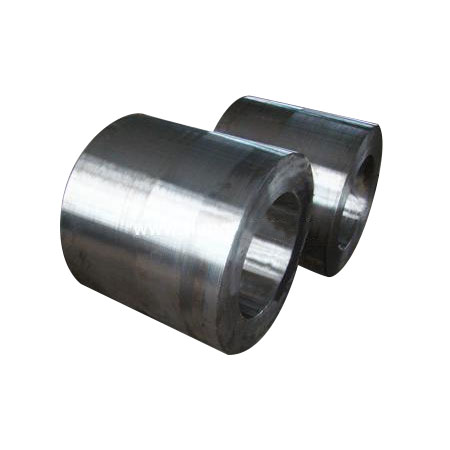

Cylinder forging generally refers to forging a cylindrical or approximately cylindrical workpiece. Depending on the design, the finished blank may be solid, hollow, short, or relatively long. Such forgings can serve as the starting material for pressure-related components, heavy machine parts, sleeves, and other engineered products. The actual suitability depends on the material, design, manufacturing route, and applicable technical requirements.
Shaft forging focuses on producing elongated components designed to transmit torque, support rotating assemblies, or carry mechanical loads. A forged shaft blank may incorporate stepped diameters, shoulders, journals, or other features that are subsequently produced through machining.
Although both products can have cylindrical geometries, their engineering priorities are not identical. Cylinder forgings may be selected primarily for bulk strength, section integrity, and the requirements of a subsequent component. Shaft forgings typically place particular emphasis on fatigue resistance, dimensional accuracy, concentricity, and the relationship between mechanical loading and shaft geometry.
2. Why Forged Components Matter in Industrial Applications
Industrial components often operate under repeated loading, vibration, changing temperatures, and demanding environmental conditions. A failure can cause unplanned downtime, expensive repairs, and potential safety risks. For this reason, the manufacturing route of a critical metal component deserves careful evaluation.
Improved structural integrity
When correctly designed and processed, forging can produce a more favorable grain flow than machining a complex component entirely from stock. Appropriate deformation can also help consolidate certain internal discontinuities in the starting material, although forging cannot be assumed to eliminate every defect.
Mechanical properties suited to demanding service
Forged components can be engineered to achieve specified strength, toughness, and ductility through suitable material selection, deformation, and heat treatment. The resulting properties depend on section size, reduction ratio, processing history, and testing location. These factors should be verified rather than inferred from the word "forged."
Efficient material utilization
Starting with a near-net-shape forging can reduce machining time and material waste when the forging geometry closely matches the final component. This benefit is particularly relevant for large parts or components made from costly alloy steels.
Greater design flexibility
Open-die forging and other appropriate forging methods can accommodate a range of dimensions and geometries. For custom industrial components, this flexibility can help manufacturers match the blank to the final engineering design.
The objective is not simply to obtain a forged product. It is to establish a manufacturing route that delivers the required performance at an acceptable total cost.
3. Key Differences Between Cylinder and Shaft Forgings
Understanding the intended function of a component helps buyers define the correct manufacturing and inspection requirements. The following comparison provides a practical starting point.
| Evaluation Factor | Cylinder Forging | Shaft Forging |
|---|---|---|
| Typical geometry | Solid or hollow cylindrical sections, depending on design | Elongated sections that may include multiple diameters and shoulders |
| Primary design concerns | Section integrity, strength, geometry, and service conditions | Torque transmission, bending loads, fatigue, and rotational accuracy |
| Important dimensions | Outer diameter, length, wall thickness where applicable, and concentricity | Overall length, journal diameters, step locations, straightness, and runout |
| Common follow-up operations | Turning, boring, facing, drilling, and other specified machining | Turning, grinding, keyway machining, and journal finishing |
| Critical inspections | Material verification, dimensional checks, and appropriate internal examination | Dimensional accuracy, material properties, surface condition, and fatigue-related design verification |
| Purchasing priority | Match the forging to the final section and operating requirements | Match material and geometry to load, rotation, and fit requirements |
These categories can overlap. A cylindrical forging may become part of a rotating assembly, while a shaft may have a large central section. The final drawing and service conditions—not the product name alone—should determine the manufacturing specification.
4. How the Forging Process Works
Consistent forging quality depends on controlling every major stage, from raw material preparation to final inspection. Although the precise route varies by material and component design, the following steps are common to many hot-forging operations.
Step 1: Review the Drawing and Technical Requirements
Before production begins, the manufacturer and buyer should confirm the component dimensions, material grade, applicable standard, mechanical properties, heat treatment condition, machining allowance, inspection requirements, and delivery documentation.
Resolving unclear specifications at this stage helps prevent incorrect material purchases, unnecessary rework, and disputes over acceptance criteria.
Step 2: Select and Prepare the Raw Material
The starting material may be a billet, bar, or ingot, depending on component size and the approved process. Material identity, chemistry, condition, and traceability should be checked against the purchase specification.
Cutting the stock to an appropriate size also helps ensure that sufficient material remains for forging deformation and subsequent machining.
Step 3: Heat the Material Under Controlled Conditions
In hot forging, the workpiece is heated within a temperature range suitable for the material. Correct heating improves workability and helps reduce the force required for deformation.
Insufficient heating can make deformation difficult, while excessive temperatures or prolonged exposure may cause grain growth, oxidation, decarburization, or other material problems. The heating schedule must therefore be appropriate to the alloy and section size.
Step 4: Apply the Required Forging Deformation
Depending on the component, production may use open-die forging, closed-die forging, or another suitable method. Large cylindrical blanks and many custom shaft blanks may be produced using open-die techniques.
The forging sequence, deformation distribution, and reduction must be selected to support the required dimensions and material quality. A suitable process also considers the risk of laps, cracks, folds, and uneven deformation.
Step 5: Apply the Specified Heat Treatment
Depending on the material and application, heat treatment may include normalizing, annealing, quenching and tempering, or other specified operations. These treatments can refine the microstructure, adjust hardness, or establish the required balance of strength and toughness.
Not every forging needs the same treatment. The process must follow the agreed specification, with temperature records and testing where required.
Step 6: Perform Machining and Finishing
After forging and any required heat treatment, the blank may undergo rough turning, boring, facing, grinding, or other operations. Shaft forgings often need accurate journals and controlled alignment, while cylindrical forgings may require specific bore and wall dimensions.
Machining allowances should be agreed before production. Too little stock can make it impossible to remove surface irregularities or achieve the final dimensions; excessive stock increases machining time and cost.
Step 7: Inspect, Document, and Release
Final verification may include dimensional inspection, mechanical testing, chemical analysis, visual examination, and nondestructive testing when required. Results should be compared with the purchase order, drawing, and applicable acceptance criteria.
Before shipment, the supplier should confirm product identification, preservation, packaging, and the documentation required for receiving inspection.
5. Choosing the Right Material for Forged Cylinders and Shafts
Material selection affects strength, toughness, machinability, corrosion resistance, heat-treatment response, availability, and overall cost. The best choice depends on the operating environment and the finished component's design.
| Material Category | Potential Advantages | Considerations |
|---|---|---|
| Carbon steel | Often economical and suitable for a wide range of general mechanical applications | Corrosion protection and strength requirements must be assessed for the intended service |
| Alloy steel | Can provide improved strength, hardenability, toughness, or wear-related properties when correctly specified | Heat treatment, section size, and material certification require careful control |
| Stainless steel | Offers corrosion resistance in appropriately selected grades and environments | Grade selection must account for the actual chemicals, temperature, stress, and processing conditions |
| Duplex stainless steel | Can offer a useful combination of strength and corrosion resistance in suitable applications | Requires control of processing and heat treatment to maintain the intended microstructure and properties |
Match the material to actual operating conditions
Start by identifying the loads, temperature range, surrounding environment, expected service life, and relevant failure risks. For a rotating shaft, consider torque, bending, cyclic loading, and stress concentrations. For a cylinder-shaped component, assess section stresses, pressure-related requirements where applicable, and the consequences of internal discontinuities.
Specify properties rather than relying on generic descriptions
Terms such as high strength, heavy duty, and corrosion resistant are not complete purchasing specifications. Where relevant, identify the material grade, governing standard, required tensile properties, impact requirements, hardness range, and heat treatment condition.
For safety-critical or pressure-containing components, material selection and manufacturing acceptance should be confirmed by qualified engineering personnel against the applicable code and design requirements.
6. Quality Control: What Buyers Should Verify
A forging can look acceptable on the surface while still failing to meet internal or mechanical requirements. A documented inspection plan is therefore essential for components with demanding service conditions.
Material traceability and chemical composition
Verify that the supplied material matches the specified grade. Material test certificates should identify the applicable standard and provide the required chemical and mechanical results. Heat numbers or equivalent identification should maintain traceability throughout production.
Dimensional accuracy
Check the dimensions that influence assembly, machining, and performance. Depending on the component, these may include outside diameter, inside diameter, length, straightness, concentricity, and machining allowance. For shaft forgings, journal alignment and runout may be especially important.
Mechanical properties and heat treatment
Confirm that tensile strength, yield strength, elongation, impact toughness, hardness, or other specified properties meet the agreed requirements. Testing locations and sample conditions should follow the applicable specification because properties can vary across a large section.
Surface and internal examination
Visual inspection helps identify surface cracks, laps, scale-related damage, and other visible irregularities. Depending on the risk and specification, magnetic particle testing, liquid penetrant testing, ultrasonic testing, or other appropriate nondestructive methods may also be required.
- Visual inspection: identifies visible surface conditions.
- Ultrasonic testing: can help detect internal discontinuities within the method's capability and applicable acceptance criteria.
- Magnetic particle testing: is suitable for detecting certain surface and near-surface discontinuities in ferromagnetic materials.
- Liquid penetrant testing: helps identify surface-breaking discontinuities in suitable nonporous materials.
These methods are not interchangeable, and none guarantees the detection of every possible defect. The correct method, examination coverage, and acceptance level must be agreed for the product and its intended service.
Documentation and inspection records
Depending on the contract, buyers may require material certificates, heat-treatment records, dimensional reports, nondestructive testing reports, and a certificate of conformity. Confirm the required documents before production rather than requesting them after the component has been completed.
7. Common Purchasing Challenges and Practical Solutions
Challenge 1: The forging does not match the final machining requirements
Why it happens: The supplier receives incomplete drawings or an unclear machining allowance.
Solution: Share the latest approved drawing and specify which surfaces will be machined, the required stock allowance, and the critical dimensions. Identify any areas where additional material is unacceptable.
Challenge 2: Mechanical properties vary across a large section
Why it happens: Large cross-sections can cool at different rates, influencing the resulting microstructure and mechanical properties.
Solution: Define the required properties, heat treatment condition, sampling locations, and testing method. Ask the manufacturer to confirm that the proposed process is appropriate for the component's section size.
Challenge 3: The quotation does not reflect the full project cost
Why it happens: The initial price may exclude testing, additional machining, special packaging, documentation, or transportation.
Solution: Compare quotations on the same technical basis. Request a clear breakdown of included operations, inspection, tolerances, finishing, delivery terms, and any additional charges.
Challenge 4: Delivery schedules become unreliable
Why it happens: Material availability, forging capacity, heat treatment, machining, or third-party testing may affect the production timeline.
Solution: Agree on material approval, drawing release, inspection hold points, and the delivery schedule before production. For urgent or recurring orders, establish realistic lead times and communication milestones.
Challenge 5: Acceptance criteria are disputed after delivery
Why it happens: The order does not clearly define the governing standard, inspection method, or defect acceptance level.
Solution: Specify the applicable technical documents, testing extent, tolerances, acceptance criteria, and documentation requirements in the purchase order.
8. Industrial Applications of Cylinder Forging and Shaft Forging
Forged cylindrical blanks and shafts are used in many sectors where component geometry, material performance, and manufacturing reliability must work together.
- Power generation: Selected forged components may be used in rotating machinery and supporting equipment, subject to design and material requirements.
- Petrochemical and process industries: Suitable forgings may form part of equipment and assemblies exposed to demanding temperatures, pressures, or corrosive environments.
- Heavy machinery: Forged shafts and cylindrical blanks can support mechanical transmission, load-bearing, and motion-related functions.
- Marine equipment: Appropriate material grades and protective measures help address the environmental demands of marine applications.
- Wind power: Forged metal components are used in selected mechanical assemblies and associated industrial equipment.
- General industrial manufacturing: Custom forgings can serve as starting blanks for components that require specific dimensions, mechanical properties, or further machining.
Not every forged product is appropriate for every application. Operating conditions, engineering calculations, applicable standards, and product-specific qualification determine whether a particular forging is suitable.
9. How to Evaluate a Cylinder and Shaft Forging Supplier
Supplier selection affects not only the initial purchase price but also machining efficiency, delivery reliability, inspection effort, and long-term component performance.
Assess manufacturing capability
Ask whether the manufacturer can accommodate the required dimensions, material grades, forging method, heat treatment, and subsequent machining. Equipment capacity should be assessed against the actual component rather than a general statement about factory size.
Review quality management and testing capability
Request relevant quality certifications and confirm their scope and validity. Establish which inspections are performed in-house and which are subcontracted. For critical parts, verify that the proposed test methods and personnel meet the requirements of the applicable specification.
Confirm experience with custom specifications
Suppliers handling engineered components should be able to review drawings, clarify technical details, and explain how production will meet the requested acceptance criteria. Sample inspection reports or comparable project references may help buyers assess their technical communication and process control.
Consider total cost rather than unit price alone
A low-priced forging may become expensive if it requires excessive machining, arrives with incomplete documentation, or fails incoming inspection. Compare the complete scope of supply, including raw material, forging, heat treatment, testing, machining, packaging, and delivery.
For buyers evaluating industrial forging manufacturers, Jiangyin Huaxi Flange Pipe Fittings Co., Ltd. provides information about its flange, ring forging, and pipe fitting manufacturing activities. Its website describes production equipment, material options, and customized manufacturing according to drawings or samples. Buyers should contact the company directly to confirm the current availability and exact specifications of a particular cylinder or shaft forging.
10. A Practical Procurement Checklist Before Ordering
Preparing a complete technical package makes quotation, production planning, and incoming inspection more efficient. Use the following checklist when requesting a quotation for cylinder forging and shaft forging.
- Provide the latest approved drawing, including all relevant dimensions and tolerances.
- Specify the material grade and governing material standard.
- Describe the operating environment, loads, and critical performance requirements.
- Define the required forging condition and heat treatment.
- Identify machining allowances and the surfaces requiring finishing.
- Specify mechanical testing, dimensional inspection, and any required nondestructive testing.
- Confirm traceability, material certification, and final inspection documentation.
- Agree on the inspection and acceptance criteria before production begins.
- Clarify quantity, order frequency, packaging, shipping terms, and delivery deadlines.
- Request written confirmation of any technical deviations before approving them.
11. Frequently Asked Questions
Q1. What is the main purpose of cylinder forging?
Cylinder forging produces cylindrical or approximately cylindrical metal blanks for components that require specified geometry and mechanical properties. The finished blank may undergo machining or further processing before use in an industrial assembly.
Q2. What makes shaft forging suitable for rotating machinery?
A properly designed and processed shaft forging can provide a suitable combination of strength, toughness, and material integrity. Performance also depends on shaft geometry, fatigue design, heat treatment, machining accuracy, surface condition, and inspection.
Q3. Which materials are commonly used for forged cylinders and shafts?
Carbon steel, alloy steel, and stainless steel are common material categories. Duplex stainless steel and other specialized alloys may be suitable for particular environments. The final selection should be based on design loads, corrosion exposure, temperature, required properties, and applicable standards.
Q4. Does forging eliminate internal defects?
No. Appropriate forging deformation can improve the structure of the starting material and may help close certain internal discontinuities, but it does not guarantee a defect-free component. Material control, process qualification, and appropriate inspection remain necessary.
Q5. Why is heat treatment important after forging?
Heat treatment can adjust microstructure, hardness, strength, and toughness to meet specified requirements. The correct treatment depends on the alloy, section size, forging history, and intended application.
Q6. Which inspections should be requested for shaft forgings?
Typical requirements may include dimensional checks, material verification, mechanical testing, and visual examination. Depending on the application and specification, additional nondestructive testing may be required. The inspection plan should define test methods, coverage, and acceptance criteria.
Q7. Can cylinder forging and shaft forging be customized?
Yes. Depending on manufacturing capability, custom forgings can be produced to specified drawings, dimensions, material grades, and processing requirements. The supplier should review the design and confirm feasibility, tolerances, testing, and delivery before accepting the order.
Q8. What information is needed to obtain an accurate forging quotation?
Provide the drawing, material grade, dimensions, quantity, required mechanical properties, heat treatment condition, machining requirements, inspection scope, applicable standards, and delivery destination. The more complete the technical information, the easier it is to prepare a comparable quotation.
Q9. How can buyers reduce the total cost of a forged component?
Define the required properties clearly, optimize the forging blank and machining allowance, avoid unnecessary tolerances or tests, confirm documentation requirements early, and compare suppliers on the complete scope of supply. Cost reductions should never compromise required safety or performance.
