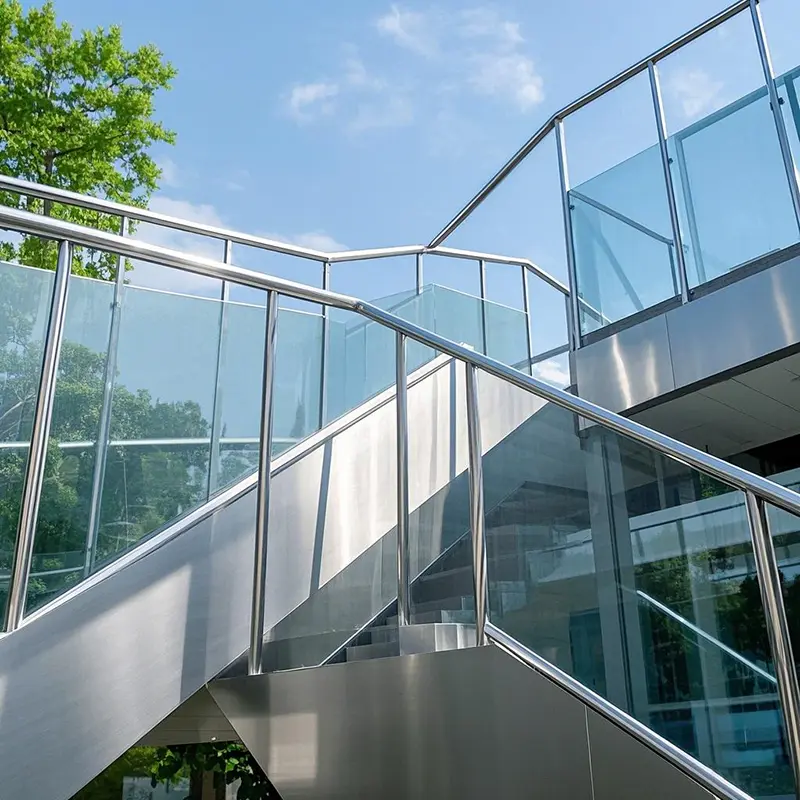

What Type of Pipe for Stair Railing Handrails Meets International Building Code (IBC) Requirements

Selecting the correct Pipe for Stair Railing Handrails is not just about aesthetics—it is a critical safety decision. The International Building Code (IBC) sets clear, enforceable standards for handrail systems in commercial and multi-family residential buildings. For contractors, architects, and facility managers, understanding these requirements ensures both legal compliance and occupant protection. Shuangsen, a trusted manufacturer of structural and decorative pipe systems, frequently guides clients through these technical specifications to help them choose IBC-compliant solutions without costly rework.

IBC Chapter 10: The Core Handrail Requirements

The IBC addresses handrails primarily in Chapter 10 (Means of Egress). For Pipe for Stair Railing Handrails, the following sections are mandatory:

Which Pipe Material and Schedule Pass IBC?

Not all pipes are equal. The IBC does not mandate a specific material, but it does require structural performance. Based on Shuangsen’s engineering data, these are the most common IBC-compliant choices:

Critical IBC note: The most reliable Pipe for Stair Railing Handrails is Schedule 40 steel with 1.90″ outside diameter (nominal 1½″ pipe). This size meets the graspability rule (1¼″–2″) and, when mounted with Shuangsen heavy-duty brackets at ≤48″ spacing, comfortably exceeds the 200-lb concentrated load test.

Installation Details That Determine Compliance

Even with the correct pipe, poor installation fails IBC inspection. Here is the checklist:

• Mounting height: Measure from the tread nosing, not the stringer. Use adjustable Shuangsen floor flanges to fine-tune 34″–38″.

• Return to wall/floor: Ends must turn into the wall or post—no exposed sharp ends.

• Projection into egress path: Handrails cannot reduce stair width below 31.5″ (IBC 1014.11).

• Grip surface: No set screws, protrusions, or rough welds in the gripping area.

• Post anchorage: Each post must resist 200 lbs horizontally – use ½″ expansion anchors or welded base plates.

Shuangsen prefabricated Pipe for Stair Railing Handrails kits include pre-drilled flanges and factory-rounded ends, significantly reducing field errors.

FAQ – Common Questions About IBC and Pipe Handrails

Q1: Does IBC require a specific wall thickness for Pipe for Stair Railing Handrails, or is Schedule 40 always acceptable?

A: IBC does not prescribe a specific schedule number; it requires the assembled handrail to withstand a 200-lb concentrated load applied at any point and in any direction, plus a 50-lb/ft uniform load. Schedule 40 steel pipe (1½″ nominal, 0.145″ wall) typically passes these tests when posts are spaced no more than 48″ apart. However, if your stair has spans longer than 4 feet between supports, you must either upgrade to Schedule 80 (0.200″ wall) or reduce post spacing. For aluminum pipe, Schedule 40 may fail at 48″ – you would need a thicker wall or additional intermediate posts. Always run a simple deflection calculation (maximum allowable deflection = L/240 per IBC) using your chosen pipe’s moment of inertia. Shuangsen provides free load-calculation sheets for every pipe diameter we supply, so you can verify compliance before purchase.

Q2: Can I use threaded plumbing Pipe for Stair Railing Handrails with fittings, or does IBC require welded connections?

A: Threaded connections are absolutely permitted under IBC, provided they are mechanically secure and do not create sharp edges or loose joints. However, threaded fittings reduce the pipe’s effective wall thickness at the root of the threads, which can weaken the assembly. For this reason, many inspectors prefer welded or flanged connections for commercial stairs. If you choose threaded Pipe for Stair Railing Handrails, we recommend using Schedule 80 at all threaded joints to compensate for material loss, and applying thread-locking compound to prevent loosening from vibration. Also, ensure that every coupling and elbow is fully engaged (at least 3–4 full threads visible). Shuangsen offers pre-threaded, pre-measured kits with reinforced collars that maintain full IBC load ratings even with threaded joints – a solution we engineer specifically for fast-track projects where welding is impractical.

Q3: What is the most common reason that Pipe for Stair Railing Handrails fails IBC inspection, and how can I avoid it?

A: The number one failure is insufficient finger clearance – inspectors measure the gap between the handrail and the nearest wall surface. IBC requires a minimum of 1½″ of clear space for fingers to wrap around the bottom of the rail. Many installers use flat brackets that sit too close to the wall, or they mount pipe directly onto a wall-mounted post without a standoff. The second most common failure is height inconsistency – handrails that dip below 34″ or exceed 38″ at any point due to uneven stair slopes. To avoid both, use adjustable offset brackets (like Shuangsen’s model SB-200, which provides 1¾″–2½″ adjustable standoff) and laser-level your mounting points before final tightening. Third, we see failures from undersized wall anchors – using plastic anchors for a 200-lb load is inadequate; use 3/8″ diameter wedge anchors or toggle bolts into structural substrate. Shuangsen includes a field inspection checklist with every handrail order, covering these three pitfalls, so your crew can self-audit before the building official arrives.

Cost vs. Compliance – Why Professional-Grade Pipe Matters

Many DIYers ask why they cannot use standard EMT conduit or fence pipe. The answer is simple: those products lack mill-test reports and consistent wall thickness. IBC inspectors require documentation – you must provide material certifications showing yield strength, chemical composition, and galvanization thickness (for outdoor use). Shuangsen supplies full ASTM A53/A500 mill certificates with every bulk order of Pipe for Stair Railing Handrails, ensuring your submittal package passes plan review on the first attempt.

Final Checklist for Your Next Stair Project

• Pipe OD between 1.25″–2″ (Type I graspability)

• Wall thickness verified by mill certificate

• Mounting brackets ≤48″ apart, anchored into structure

• Standoff ≥1.5″ from wall

• Height 34″–38″ from nosing, continuous through landings

• All ends returned or capped

• Load test documentation available

Contact Us for Code-Compliant Pipe Solutions

Selecting the right Pipe for Stair Railing Handrails does not have to be a guessing game. Shuangsen has supplied over 2,000 IBC-compliant handrail systems across North America – from school stairwells to luxury condo lobbies. Our engineering team reviews your stair geometry, recommends the optimal schedule and material, and provides pre-cut, pre-threaded pipe with all necessary brackets and anchors. We also offer free load-calculation reports to include in your permit submittal.
