What thickness and size of Angle Steel meet your structural requirements?

2026-09-08

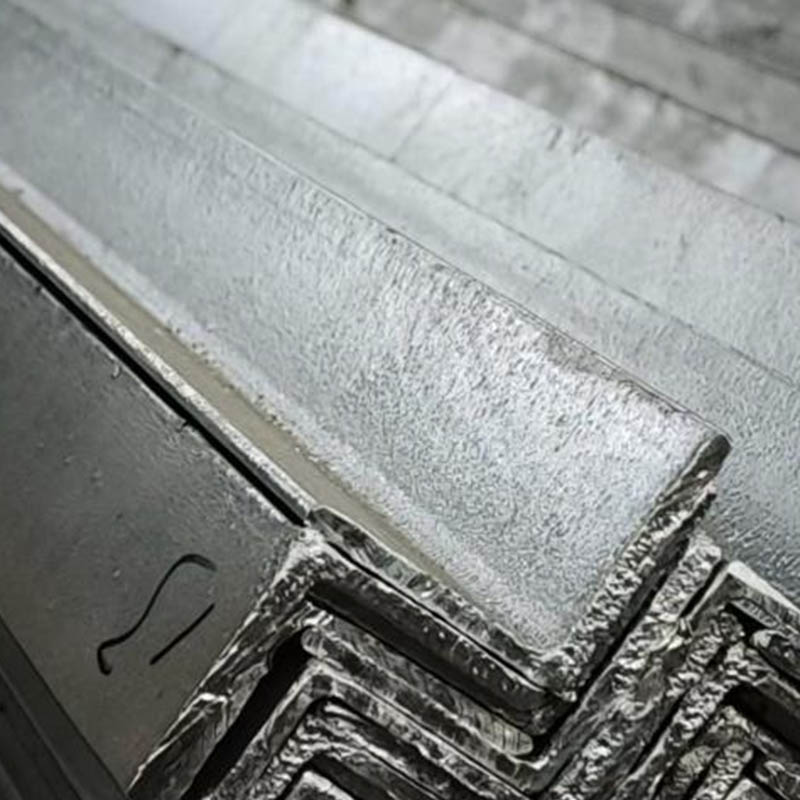

In structural design, selecting the wrong Angle Steel can be more expensive than selecting the right one. Oversizing wastes material and increases dead load. Undersizing compromises safety and requires costly retrofits. The challenge is that Angle Steel properties vary with both size and thickness, and the design codes provide tables of values that can be overwhelming. This guide is written for engineers who need a practical, step-by-step approach to selecting the optimal Angle Steel for their specific application—whether it is for bracing, framing, or structural members.

1. What Are the Key Design Parameters for Angle Steel Selection?

Before selecting an Angle Steel, the engineer must define three key parameters: the maximum load the member will carry, the unbraced length (or distance between supports), and the connection method. These parameters determine whether the member is governed by tension, compression, bending, or a combination. For tension members, the gross area and the net area at the connection are the critical factors. For compression members, the radius of gyration and the slenderness ratio are more important. For bending, the section modulus and the plastic section modulus are the relevant properties. In our factory, we produce Angle Steel in both equal leg (L x L x t) and unequal leg (L1 x L2 x t) configurations, and we provide full section property tables for each product.

Quick guidance for the practicing engineer:

• For tension members up to 200 kN: start with 75x75x6 mm equal angle.

• For compression bracing up to 6 m length: start with 90x90x8 mm equal angle.

• For lightweight framing: 50x50x4 mm or 65x65x5 mm.

• For heavy duty connections: use unequal angles with the longer leg providing the connection width.

The selection process is iterative. You estimate the required size, check the capacity, and adjust. The table below provides a reference for the load capacity of common Angle Steel sizes in typical applications.

2. What Is the Relationship Between Size, Thickness, and Load Capacity?

The load capacity of an Angle Steel increases with both the leg length and the thickness. The area increases linearly with thickness and also with leg length. The section modulus increases with the cube of the leg length, which means that increasing the leg length is a more efficient way to increase bending capacity than increasing the thickness. However, increasing the thickness increases the resistance to local buckling and provides more material for bolted connections. The table below shows the section properties and approximate load capacities for common Angle Steel sizes used in structural applications.

Angle size (mm)	Thickness (mm)	Area (cm²)	Radius of gyration (mm)	Approx. tension capacity (kN, Q235)	Approx. compression capacity (kN, 3m length)
50x50	4	3.9	9.8	90	45
50x50	5	4.8	9.5	110	52
63x63	5	6.1	12.4	140	68
63x63	6	7.3	12.2	168	78
75x75	6	8.7	14.8	200	95
75x75	8	11.5	14.5	264	118
90x90	6	10.6	17.8	244	120
90x90	8	14.0	17.4	322	148
100x100	8	15.6	19.6	358	168
100x100	10	19.2	19.2	442	192

The tension capacity is calculated as the gross area multiplied by the yield strength (235 MPa for Q235 steel). The compression capacity is estimated for a pin-ended member with an effective length of 3 m. In our factory, we supply Angle Steel in both Q235 and Q345 grades, and we can provide certified test reports for each batch. We also offer custom length cutting to reduce waste on the construction site.

3. How Do You Account for Connection Details in Angle Steel Selection?

The connection details often determine the required Angle Steel size more than the member load. For bolted connections, the size of the bolt and the number of bolts determine the required edge distance and the available bolt pitch. A larger Angle Steel provides more space for multiple bolts and reduces the stress concentration at the connection. For welded connections, the size of the weld affects the heat input and the distortion. In our experience, many structural failures occur at the connection rather than in the member. This is why we recommend using a standard Angle Steel that is one size larger than the minimum required by the load calculations. This provides additional material for the connection and accommodates any field adjustments that may be necessary. For example, if the load calculation indicates a 63x63x6 mm Angle Steel, we recommend using a 75x75x6 mm Angle Steel to provide a better connection detail.

Connection design recommendation: For bolted connections, the edge distance should be at least 1.5 times the bolt diameter. The bolt pitch should be at least 3 times the bolt diameter. For a connection with M16 bolts, this means a minimum edge distance of 24 mm and a minimum pitch of 48 mm. A 75x75 mm Angle Steel provides a 55 mm leg width, which accommodates two rows of M16 bolts. A 63x63 mm Angle Steel provides only a 43 mm leg width, which is suitable for only one row of bolts.

At Tianjin Shunchen Hongye Enterprise Management Co., Ltd., we manufacture Angle Steel with consistent edge profiles and accurate dimensions, which simplifies the connection design and reduces the risk of fit-up issues.

4. What Are the Practical Rules of Thumb for Angle Steel Sizing?

While full structural analysis is always recommended, the following rules of thumb can be used for preliminary sizing: For a compression member with an unbraced length of up to 3 m, the minimum Angle Steel size is approximately L/20 where L is the length in mm. For a tension member, the minimum size is determined by the required area, which can be estimated from the load and the yield strength. For a bracing member, the Angle Steel should be sized so that the slenderness ratio is less than 200. A 75x75x6 mm Angle Steel is suitable for most light to medium structural applications. For heavy applications, a 100x100x10 mm Angle Steel is recommended. The thickness should be at least 5 mm for structural applications, and 8 mm or more for heavy-duty applications.

Frequently Asked Questions About Angle Steel Selection

Question 1: What is the difference between equal and unequal angle steel, and when should I use each?

Answer: Equal angle steel has legs of the same length (e.g., 75x75x6), while unequal angle steel has legs of different lengths (e.g., 100x75x8). Equal angles are used when the load is symmetrical or when the connection details are the same on both sides. Unequal angles are used when one leg is required to be longer for connection purposes, or when the load is primarily in one direction. For example, in a truss connection, an unequal angle may be used where the long leg is bolted to the chord member and the short leg is bolted to the web member. In our factory, we produce both types of Angle Steel and can advise on the best option for your application.

Question 2: How do I calculate the bending capacity of an angle steel section?

Answer: The bending capacity of an Angle Steel section is determined by the section modulus (Z) and the yield strength. The section modulus is calculated using the formula Z = I / c, where I is the moment of inertia and c is the distance from the neutral axis to the extreme fiber. For an equal angle, the section modulus is given in the design tables. For a simple estimate, you can use the formula Z = (t x L²) / 6, where t is the thickness and L is the leg length. For example, a 75x75x6 mm angle has an approximate section modulus of (6 x 75²) / 6 = 5,625 mm³. The bending capacity is then M = Z x fy, where fy is the yield strength. For Q235 steel, fy = 235 MPa, so M = 5,625 x 235 = 1,322,000 Nmm = 1.32 kNm.

Question 3: How does the grade of steel affect the selection of angle steel?

Answer: The grade of steel affects both the strength and the cost. The most common grades for Angle Steel are Q235 and Q345. Q235 has a yield strength of 235 MPa and is suitable for most structural applications. Q345 has a yield strength of 345 MPa and is used for higher load applications or for reducing the member size. The use of Q345 can reduce the required size of the Angle Steel by approximately 30 percent, but the material cost is higher. The selection should be based on the cost trade-off. In our factory, we manufacture Angle Steel in both grades and can provide cost comparisons to help you decide. We also offer Q345 grade as a standard option for our stock sizes.

Summary for Structural Engineers

Selecting the right Angle Steel for your structural project requires a systematic approach that considers the load, the unbraced length, the connection details, and the cost. The section properties and load capacities provided in this guide can help you narrow down the options quickly. The connection design is often the governing factor, and it is recommended to select an Angle Steel that provides adequate space for the connections. By using the practical rules of thumb and the tables provided, you can accelerate the preliminary design phase and reduce the number of iterations.

Tianjin Shunchen Hongye Enterprise Management Co., Ltd. manufactures Angle Steel in a full range of sizes and grades. We provide section property data, material test reports, and custom cutting services to support your structural projects.
