What Makes Thread Ring Gauges Essential for Precision Measurement?

In the world of precision engineering and quality assurance, one of the most indispensable tools is the Thread Ring Gauge. Manufacturers across automotive, aerospace, mechanical, and machining industries rely on these tools to ensure their threaded components comply with international standards and function properly in practical applications. Without accurate gauges, defective threads could cause leaks, looseness, or even safety hazards.

At Dongguan Drilling and Milling Tapping Tools Co., Ltd., we have spent years developing and refining high-quality measuring instruments, among which our Thread Ring Gauges stand out for their durability, accuracy, and reliability. In this article, we will take a closer look at the specifications, benefits, and usage of thread ring gauges, while also answering some of the most common questions customers often ask.

The Role of Thread Ring Gauges

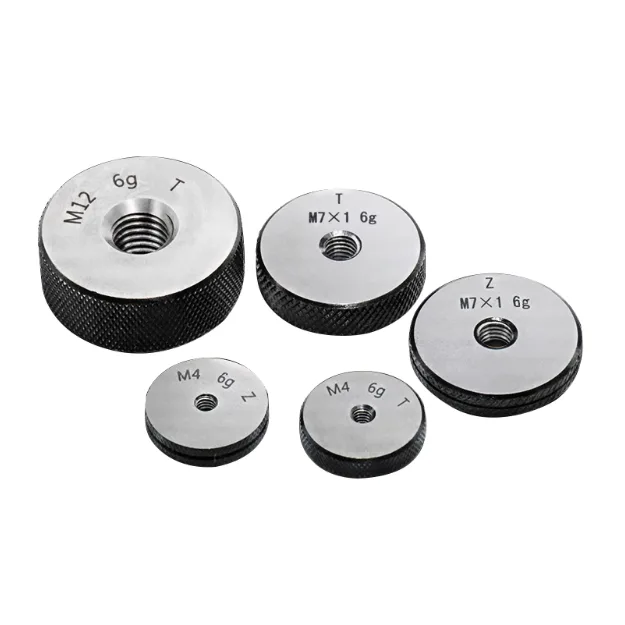

Thread ring gauges are used to inspect the external threads of bolts, screws, and other threaded fasteners. Their role is simple yet critical: they verify whether the thread dimensions are within permissible tolerances. They are manufactured in pairs, usually consisting of a GO gauge and a NO-GO gauge.

• GO Gauge: Checks the minimum material condition. If the part passes the GO gauge, it confirms that the thread is not oversized.

• NO-GO Gauge: Checks the maximum material condition. If the part does not enter the NO-GO gauge, it ensures the thread is not undersized.

Together, these gauges allow for rapid, repeatable, and accurate thread inspection on production lines.

Key Features and Parameters of Our Thread Ring Gauges

Our thread ring gauges are manufactured in compliance with ISO, ANSI, DIN, and JIS standards. They are heat-treated, precision-ground, and rigorously inspected to guarantee long service life. Below are some of the main product features:

• Material: High-speed tool steel / Alloy steel

• Heat Treatment: Hardened to HRC 58-62

• Standards Available: ISO, ANSI/ASME, DIN, JIS, BS

• Accuracy Class: Class 2A/2B, Class 3A/3B (as per ANSI), medium and fine grades (as per ISO)

• Size Range: M1 to M200, and custom sizes available

• Types: GO / NO-GO pairs, adjustable thread ring gauges

• Surface Finish: Mirror polished to reduce wear

• Application: Quality control in automotive, aerospace, machinery, pipe fittings, and precision fasteners

Technical Specifications

This combination of durability and precision makes our gauges highly cost-effective for both small-batch testing and mass-production lines.

Why Choose Our Thread Ring Gauges?

There are countless suppliers in the market, but at Dongguan Drilling and Milling Tapping Tools Co., Ltd., we focus on value and reliability. Here are the main reasons customers trust us:

1. Precision Guarantee – Every gauge is manufactured with advanced CNC technology and passes strict inspection before shipment.

2. Long Lifespan – Thanks to proper heat treatment and surface finishing, our gauges are resistant to wear and deformation.

3. Wide Range – We can supply standard gauges as well as custom thread gauges for unique applications.

4. Competitive Pricing – Despite high-quality materials and advanced manufacturing processes, we keep prices affordable.

5. Global Service – We supply gauges to customers worldwide and provide responsive after-sales support.

Practical Benefits in Industrial Applications

• Consistency: Ensures every thread produced meets international tolerance standards.

• Efficiency: Quick pass/fail checks save time compared to measuring each thread parameter individually.

• Reliability: Reduces the risk of defective threads entering the assembly line.

• Cost Reduction: Minimizes rejection rates and prevents costly reworks.

• Safety: Especially in industries like aerospace and automotive, where thread failure is unacceptable.

Common FAQs about Thread Ring Gauges

Q1: What is the difference between GO and NO-GO thread ring gauges?
A1: The GO gauge is designed to check whether the external thread is not too large, while the NO-GO gauge ensures that the thread is not too small. Together, they verify whether the thread falls within the acceptable tolerance limits.

Q2: How often should thread ring gauges be calibrated?
A2: Calibration depends on usage frequency and working conditions. In most industrial settings, gauges are recalibrated every 6–12 months to ensure accuracy. Regular inspection prevents worn gauges from giving misleading results.

Q3: Can thread ring gauges be made for custom thread profiles?
A3: Yes, at Dongguan Drilling and Milling Tapping Tools Co., Ltd., we manufacture custom gauges tailored to unique thread profiles, including non-standard threads, pipe threads, and special geometries.

Q4: What materials are best for thread ring gauges?
A4: High-speed tool steel and alloy steel are commonly used because they offer excellent hardness, wear resistance, and dimensional stability after heat treatment. These materials extend the lifespan of gauges, even under frequent use.

Conclusion

Thread ring gauges are more than just inspection tools—they are the foundation of quality assurance in threaded fastener production. By providing fast, precise, and reliable verification of thread dimensions, they ensure safety, reduce costs, and improve efficiency across industries.

At Dongguan Drilling and Milling Tapping Tools Co., Ltd., we are committed to delivering world-class thread gauges that meet international standards while offering custom solutions for specialized needs. If you are seeking a reliable supplier for Thread Ring Gauges, contact us today to discuss your requirements.
