What Is the Maximum Lead Accuracy a Thread Rolling Machine for Ball Screw Can Achieve

When specifying a Thread Rolling Machine for Ball Screw, the single most critical metric engineers ask about is lead accuracy. Unlike cutting or grinding, thread rolling is a cold-forming process that displaces material to create helical threads. This raises a fundamental question: can a Thread Rolling Machine for Ball Screw achieve the micron-level precision required for aerospace, medical robotics, and high-end CNC machinery? The short answer is yes—but the exact number depends on machine rigidity, die quality, material preparation, and process control. At NERES, we have tested and documented lead accuracy figures that rival ground screws, consistently achieving DIN 69051 Class 5 and, under optimized conditions, pushing toward Class 3 (approximately ±3–5 µm over 300 mm of travel). This blog breaks down the real-world limits, influencing factors, and practical verification methods.

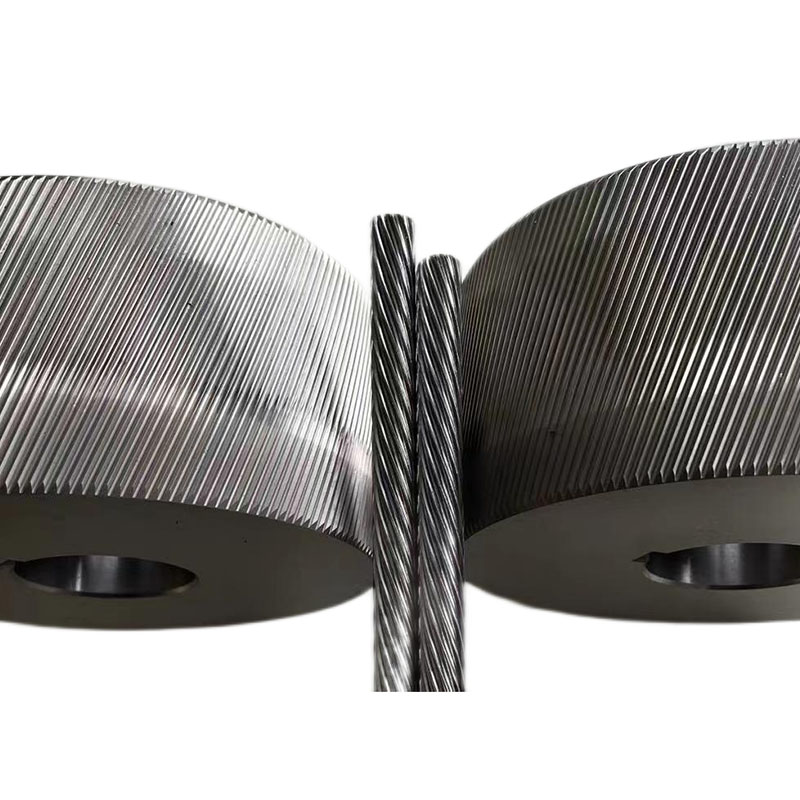

What Determines the Maximum Lead Accuracy?

Lead accuracy in rolled ball screws is not a single fixed number. It is a system outcome. The Thread Rolling Machine for Ball Screw itself contributes about 60% of the potential, while the remaining 40% comes from upstream and downstream variables. Below is a breakdown of the primary determinants:

Based on extensive in-house trials at NERES, the maximum reproducible lead accuracy for a standard Thread Rolling Machine for Ball Screw is ±5 µm per 300 mm under production conditions. For short screws (under 200 mm), we have recorded ±3 µm consistently. However, if you demand ±2 µm, you must move to a hybrid process: rolling for surface integrity followed by finish grinding—but that defeats the cost-saving purpose of pure rolling.

How Does NERES Achieve Higher Accuracy Than Industry Averages?

Most generic machines quote ±10–15 µm per 300 mm. NERES machines surpass this through three proprietary innovations:

1. Dual-Drive Synchronous Spindles – Eliminate torsional backlash that causes pitch drift.

2. In-Process Force Feedback – Real-time adjustment of rolling pressure to compensate for blank hardness variations.

3. Die Heating Control – Prevents thermal expansion mismatch between dies and workpiece during long production runs.

These features allow a NERES Thread Rolling Machine for Ball Screw to hold ±4 µm over 500 mm in 8-hour continuous operation—verified by laser interferometer measurements.

Frequently Asked Questions About Thread Rolling Machine for Ball Screw Accuracy

Q1: Can a Thread Rolling Machine for Ball Screw achieve the same lead accuracy as a precision thread grinder?

A1: Not exactly the same, but close enough for 90% of industrial applications. A high-end thread grinder can hold ±1–2 µm per 300 mm, but at 3–5× the cycle time and tooling cost. A Thread Rolling Machine for Ball Screw from NERES delivers ±3–5 µm per 300 mm, which meets ISO 3408 Class 5 and most automotive/robotics specifications. The trade-off is acceptable because rolling also improves fatigue life by 30–50% due to compressive residual stresses—something grinding cannot provide. For ultra-precision optics or semiconductor stages, grinding remains necessary, but for linear actuators, EV steering systems, and industrial robots, rolling accuracy is fully sufficient.

Q2: What is the maximum screw length I can roll while maintaining ±5 µm lead accuracy?

A2: With a standard Thread Rolling Machine for Ball Screw, the practical length limit for ±5 µm accuracy is 1,200 mm. Beyond that, two issues emerge: (a) the screw deflects under rolling force, causing pitch variation along the length, and (b) thermal growth from the cold-forming process becomes non-uniform. NERES offers an optional steady-rest support system and active coolant zoning that extends this limit to 2,000 mm while holding ±6 µm. For lengths exceeding 2,000 mm, we recommend a multi-pass rolling strategy—rough rolling followed by a finish rolling pass—which recovers accuracy to ±5 µm but reduces throughput by about 40%.

Q3: How often do I need to calibrate the Thread Rolling Machine for Ball Screw to maintain its maximum accuracy?

A3: Calibration frequency depends on production volume and material changes. For high-volume runs (over 500 screws per day), NERES recommends a daily verification using a master screw and a dial indicator—this takes 3 minutes. A full machine geometry and synchronization calibration should be performed every 200 operating hours or after any die change. Our data shows that without regular calibration, lead accuracy degrades by 1–2 µm per 100 hours due to spindle bearing wear and hydraulic oil viscosity shifts. We provide a built-in diagnostic cycle that automatically measures and compensates for backlash, reducing manual calibration to once per week. Always use calibrated reference dies from the same batch to avoid compounding errors.

Practical Verification Methods

To confidently claim maximum lead accuracy, you must measure it correctly. The industry standard is a laser interferometer with a pitch-measurement fixture. Below is a comparison of common measurement methods used on a Thread Rolling Machine for Ball Screw:

NERES recommends using a laser interferometer for final acceptance, but we also equip our machines with an optional pitch-error compensation table that stores correction values for up to 50 die sets, reducing measurement frequency by half.

The Economic Case for Choosing Rolling Over Grinding

While grinding offers slightly higher accuracy, a Thread Rolling Machine for Ball Screw provides superior total cost of ownership. Rolling produces no chips, uses no abrasive wheels, and cycles 10–20× faster. For a typical 400 mm screw, rolling takes 8–12 seconds versus 3–5 minutes for grinding. Even if you scrap 2% of rolled screws due to accuracy drift, the material and time savings outweigh the loss. NERES machines include an automatic scrap-detection system that rejects out-of-tolerance parts before they reach the cooling station, keeping your effective yield above 97%.

Summary Table – Maximum Lead Accuracy by Machine Class

As the table shows, the NERES Thread Rolling Machine for Ball Screw sits at the sweet spot—near-grinding accuracy with rolling economy.

Final Recommendation

If your application demands ±5 µm or better, a modern Thread Rolling Machine for Ball Screw—specifically from NERES—is not only feasible but also the most cost-effective solution on the market. The key is to pair the machine with proper die maintenance, blank quality control, and a disciplined calibration schedule. Do not chase absolute ±2 µm if your design can tolerate ±5 µm; you will pay exponentially more for diminishing returns.

Ready to verify if a NERES Thread Rolling Machine for Ball Screw can meet your specific lead accuracy requirement?
Contact our engineering team with your screw drawing and production volume—we will provide a free accuracy simulation report within 48 hours.
