What Exactly is a Stainless Steel Short Radius Elbow and Why is it Critical for Your Piping System?

When designing or maintaining a high-performance piping system, every component matters. Among the most crucial for directing flow in tight spaces is the Stainless Steel Short Radius Elbow. If you're an engineer, project manager, or procurement specialist, you know that specifying the correct elbow is not just a matter of convenience—it's essential for system integrity, efficiency, and cost-effectiveness. This comprehensive guide delves deep into the specifications, advantages, and applications of this pivotal component.

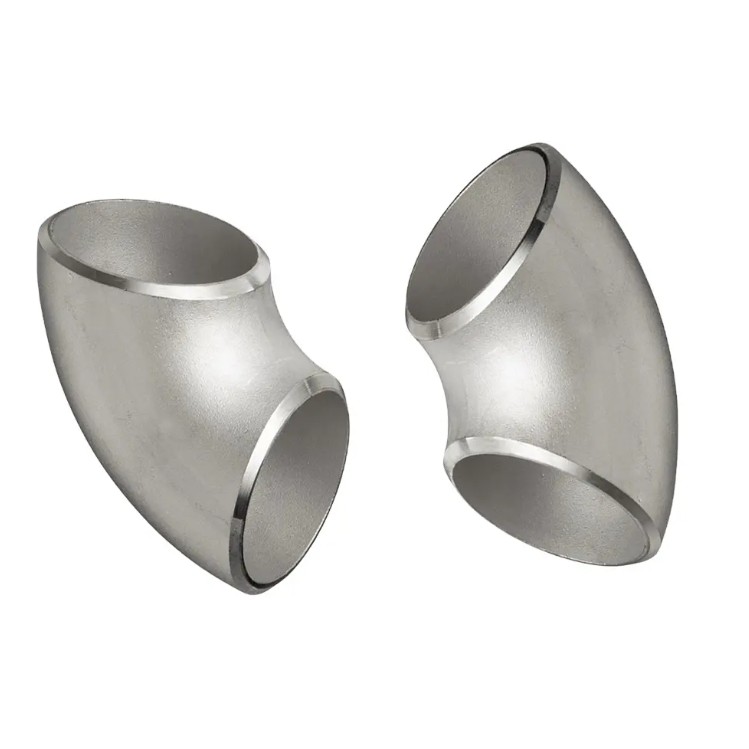

A Stainless Steel Short Radius Elbow is a type of pipe fitting used to change the direction of flow by 90 degrees, characterized by a center-to-end dimension equal to the nominal pipe size (NPS). This makes it significantly more compact than its long-radius counterpart, allowing for a sharper turn where space is at a premium. Crafted from various grades of stainless steel, it offers exceptional resistance to corrosion, high temperatures, and pressure, making it a staple in demanding industries.

Key Advantages of Choosing Our Stainless Steel Short Radius Elbow:

• Space-Saving Design: Ideal for compact systems where a long-radius elbow would be impractical.

• Superior Durability: Manufactured from high-grade stainless steel for excellent resistance to corrosion, erosion, and oxidation.

• High-Pressure Resilience: Built to withstand significant internal pressure and mechanical stress.

• Smooth Interior Surface: Minimizes pressure drop and prevents the buildup of contaminants, ensuring consistent flow.

• Cost-Effective Installation: Requires less supporting structure and space, reducing overall installation costs.

Detailed Product Parameters: Where Precision Meets Performance

To ensure you have all the technical data needed for informed decision-making, we have compiled the key parameters of our Stainless Steel Short Radius Elbows.

Common Specifications List:

• Material Grades: ASTM A403 WP304/304L, 316/316L, 321, 310S, 904L, Duplex 2205, and Super Duplex 2507.

• Size Range: 1/2" to 48" Nominal Pipe Size (NPS).

• Schedule/Wall Thickness: SCH 5S, SCH 10S, SCH 40S, SCH 80S, SCH 160, and XXS.

• Type: Seamless (SMLS) & Welded.

• End Connection: Butt-Weld (Beveled Ends).

• Angle: Standard 90 degrees (45-degree and other angles available upon request).

• Standards: ASME B16.9, ANSI B16.28, MSS SP-43, MSS SP-75, DIN 2605, JIS B2311, and custom specifications.

Dimensional Table: Stainless Steel Short Radius Elbow (ASME B16.9)

This table provides the standard center-to-end dimensions for a 90-degree Short Radius Elbow.

Note: Dimensions are for reference. Tolerances are as per ASME B16.9. Other dimensions like Outside Diameter, Inside Diameter, and Wall Thickness vary according to the schedule.

Pressure-Temperature Rating Table (Example for ASTM A403 WP316L)

Disclaimer: Pressure ratings are approximate and depend on specific material grade and manufacturing process. Always consult our engineering team for critical applications.

Stainless Steel Short Radius Elbow FAQ Common Problem

1. What is the primary difference between a Short Radius and a Long Radius Elbow?

The fundamental difference lies in the curvature and the center-to-end dimension. A Short Radius Elbow has a center-to-end distance equal to 1.0 times the nominal pipe size (NPS), resulting in a tight, sharp turn. A Long Radius Elbow has a center-to-end distance equal to 1.5 times the NPS, creating a gentler, more gradual bend. The short-radius version is used where space is limited, while the long-radius is preferred for applications requiring lower pressure drop and reduced erosion potential.

2. How do I select the correct stainless steel grade for my application (e.g., 304 vs 316)?

The choice between 304 and 316 stainless steel hinges on the operating environment. SS 304 offers excellent corrosion resistance in most standard environments. However, SS 316 contains molybdenum, which significantly enhances its resistance to chlorides and acidic conditions, making it the superior choice for marine applications, chemical processing, and systems where exposure to salt or harsh chemicals is expected. For even more aggressive environments, such as those with high chloride content or requiring superior strength, Duplex or Super Duplex grades from Zhejiang HengDi Stainless Steel Co., Ltd. are recommended.

3. Can you manufacture custom-sized Short Radius Elbows for non-standard piping systems?

Absolutely. At Zhejiang HengDi Stainless Steel Co., Ltd., we specialize in providing tailored solutions. While we stock a comprehensive range of standard sizes, our advanced manufacturing capabilities allow us to produce custom-dimensioned Stainless Steel Short Radius Elbows to meet unique project requirements. This includes non-standard diameters, wall thicknesses, and specific material grades to comply with unique technical specifications. Simply provide us with your detailed drawings or requirements, and our engineering team will deliver a product that fits your system perfectly.
