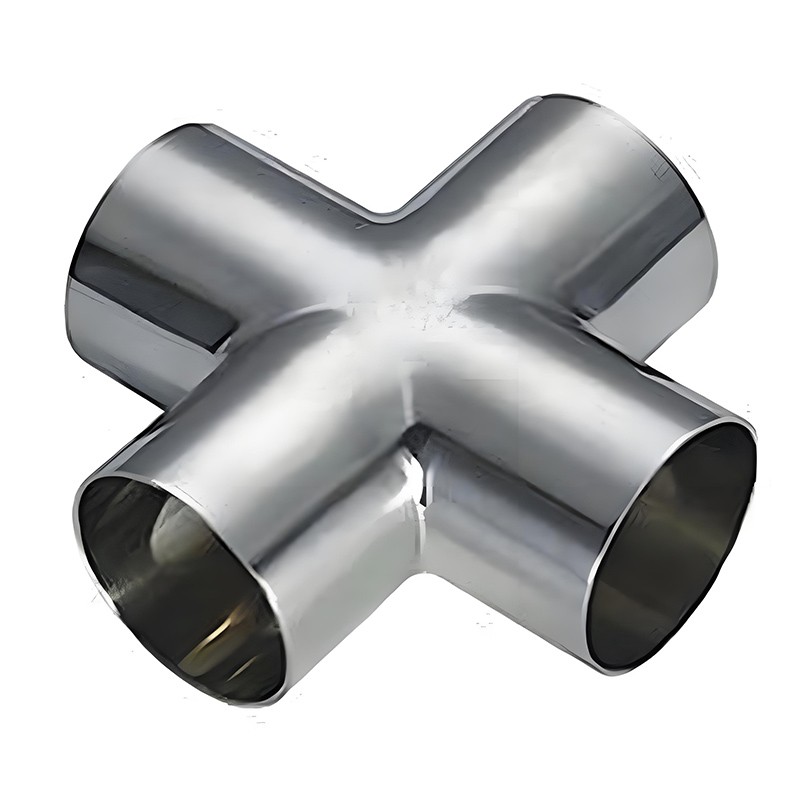

What Are the Pressure Rating Differences Between Cast and Forged Four-Way Stainless Steel Equal Crosses
2026-05-25
When selecting a Four-Way Stainless Steel Equal Cross for high-pressure industrial piping systems, understanding the pressure rating differences between cast and forged versions is critical. At HengDi, engineers frequently encounter this question when designing fluid distribution networks for chemical, oil, and gas applications. The answer lies in manufacturing processes, grain structure, and applicable standards.
Key Pressure Rating Differences
| Feature | Cast Four-Way Stainless Steel Equal Cross | Forged Four-Way Stainless Steel Equal Cross |
|---|---|---|
| Pressure Class Range | Class 150 to Class 900 | Class 600 to Class 2500 |
| Typical Max Pressure (at ambient) | ~1,440 psi (Class 150) to ~2,160 psi (Class 900) | ~1,440 psi (Class 600) to ~6,175 psi (Class 2500) |
| Grain Structure | Coarser with potential micro-porosity | Fine, aligned grain flow |
| Wall Thickness Consistency | Moderate variation | Excellent uniformity |
| Standard Compliance | ASTM A351, ASTM A216 | ASTM A182, ASTM A105 |
| Common SS Grades | CF8M, CF3M (304L/316L equivalents) | F304, F316, F51 (duplex) |
Why Forged Crosses Handle Higher Pressures
The forging process compresses and aligns metal grains along the cross shape, eliminating internal voids. A forged Four-Way Stainless Steel Equal Cross from HengDi achieves up to 2.5x higher pressure ratings than cast equivalents at the same nominal size. Cast crosses, while more economical for lower pressures, risk leakage under cyclic loading due to inherent porosity.
When Cast Crosses Are Still Suitable
Cast Four-Way Stainless Steel Equal Cross units work reliably in non-critical applications below 1,500 psi, such as water treatment or HVAC systems. Their lower cost and corrosion resistance make them popular for moderate pressure environments.
FAQ: Four-Way Stainless Steel Equal Cross Common Questions
Question 1: Can I use a cast Four-Way Stainless Steel Equal Cross in a system with pressure spikes up to 2,000 psi?
Answer 1: No. A cast Four-Way Stainless Steel Equal Cross should not be exposed to pressure spikes exceeding its class rating. Cast components have lower toughness and are susceptible to brittle fracture under sudden pressure surges. For systems experiencing spikes to 2,000 psi, select a forged Four-Way Stainless Steel Equal Cross rated Class 900 or higher. HengDi recommends a forged F316 cross for such conditions to ensure safety and long-term integrity.
Question 2: How do temperature changes affect pressure ratings of forged versus cast Four-Way Stainless Steel Equal Crosses?
Answer 2: Both types derate with increasing temperature, but forged crosses retain a higher percentage of their room-temperature rating. For example, at 800°F (427°C), a forged Four-Way Stainless Steel Equal Cross made from ASTM A182 F316 retains approximately 75% of its ambient pressure rating, while a cast CF8M cross under ASTM A351 retains only 55-60%. For high-temperature steam or heat transfer fluid systems, HengDi always advises verifying derated values using ASME B16.34 tables for the specific material grade.
Question 3: How can I visually identify whether my Four-Way Stainless Steel Equal Cross is cast or forged?
Answer 3: Look for surface finish and markings. A cast Four-Way Stainless Steel Equal Cross typically has a slightly grainy, sand-like surface texture with visible parting lines from the mold. A forged cross exhibits a smoother, denser surface with clean edges and often deeper stamped markings including material grade, heat number, and pressure class. Additionally, forged crosses from reputable suppliers like HengDi will have certification documents clearly stating the manufacturing method and ASTM standard. When in doubt, request material test reports (MTRs) that specify cast (e.g., ASTM A351) or forged (e.g., ASTM A182) specifications.
Summary Recommendation
For pressures above Class 600 or cyclic service, choose a forged Four-Way Stainless Steel Equal Cross. For non-critical, low-pressure applications, cast versions offer cost savings. HengDi supplies both types with full traceability and certification.
