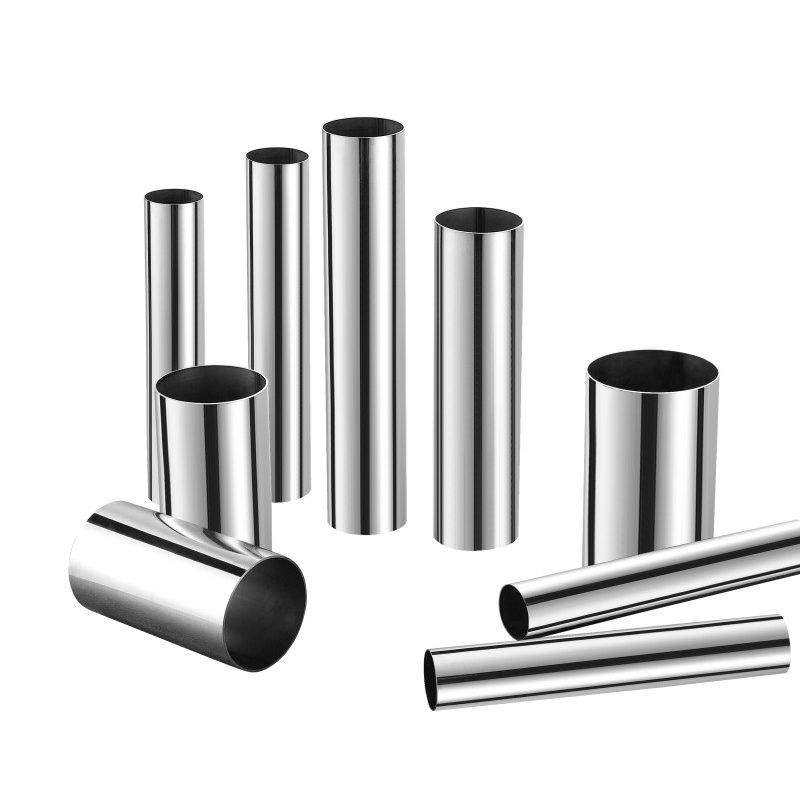

How to Select the Right Stainless Steel Welded Pipe for Your Project
2025-08-15
Choosing the appropriate stainless steel welded pipe is critical for ensuring project success across industries. This guide by HengDi covers essential selection criteria, technical specifications, application considerations, and maintenance best practices for stainless steel welded pipes, helping you make informed decisions for your specific requirements.
1. Understanding Stainless Steel Welded Pipe Specifications
HengDi manufactures premium stainless steel welded pipes that meet international standards with these key parameters:
Material Grades & Properties
| Grade | Composition | Corrosion Resistance | Temperature Range | Common Applications |
|---|---|---|---|---|
| 304 | 18% Cr, 8% Ni | Excellent | -200°C to 800°C | Food processing, architecture |
| 316 | 16% Cr, 10% Ni, 2% Mo | Superior | -200°C to 800°C | Marine, chemical plants |
| 321 | 18% Cr, 10% Ni, Ti | Good | -200°C to 900°C | High-temperature services |
| 2205 | 22% Cr, 5% Ni, 3% Mo | Exceptional | -50°C to 300°C | Oil & gas, desalination |
Standard Dimensions & Tolerances
-
Outer Diameter: 1/2" to 48" (DN15 to DN1200)
-
Wall Thickness: 0.5mm to 12.7mm (SCH 5S to SCH 80S)
-
Length: 5.8m/6m standard, custom lengths available
-
Straightness: ≤1.5mm/m per ASTM A312
2. Key Selection Criteria for Different Applications
Industrial Requirements
✔ Chemical Processing: 316/316L with electropolished interior
✔ Oil & Gas: Duplex 2205 with 3.0mm+ wall thickness
✔ Pharmaceutical: 304L/316L with sanitary finishes
✔ Construction: 304 with brushed surface finish
Performance Factors
-
Pressure Rating: SCH 40 vs SCH 80 comparison
-
Corrosion Needs: Saltwater vs chemical exposure
-
Temperature Demands: Cryogenic vs high-heat applications
-
Hygiene Requirements: Ra ≤0.8μm for sanitary uses
3. Quality Assurance and Testing Standards
HengDi's stainless steel welded pipes undergo rigorous quality control:
Manufacturing Process
-
Coil preparation & forming
-
TIG/Plasma welding
-
Heat treatment (solution annealing)
-
Cold drawing/rolling (for precision sizes)
-
Final inspection & testing
Certification Tests
| Test | Standard | Acceptance Criteria |
|---|---|---|
| Hydrostatic | ASTM A312 | 1.5x working pressure |
| PMI | ASTM E1476 | ±1% composition tolerance |
| Eddy Current | ASTM E426 | Zero defect indication |
| Surface Finish | ASME BPE | Ra ≤0.8μm (sanitary grade) |
4. Installation and Maintenance Best Practices
Proper Handling & Storage
-
Use nylon slings for lifting
-
Store indoors on wooden racks
-
Keep end protectors installed
-
Separate by grade to prevent contamination
Welding Recommendations
✔ Use matching filler metals (ER308L for 304)
✔ Maintain purge gas (Argon 99.99% purity)
✔ Control interpass temperature (≤150°C for 304)
✔ Post-weld cleaning (pickling & passivation)
Maintenance Schedule
-
Monthly: Visual inspection for corrosion
-
Annually: Ultrasonic thickness testing
-
5 Years: Full system pressure test
-
As Needed: Chemical cleaning for process pipes
Why Choose HengDi Stainless Steel Welded Pipes?
✔ 20+ years specialized manufacturing experience
✔ Complete ISO 9001 & PED certification
✔ Custom sizes and alloys available
✔ Mill test certificates with every shipment
✔ Just-in-time delivery capabilities
