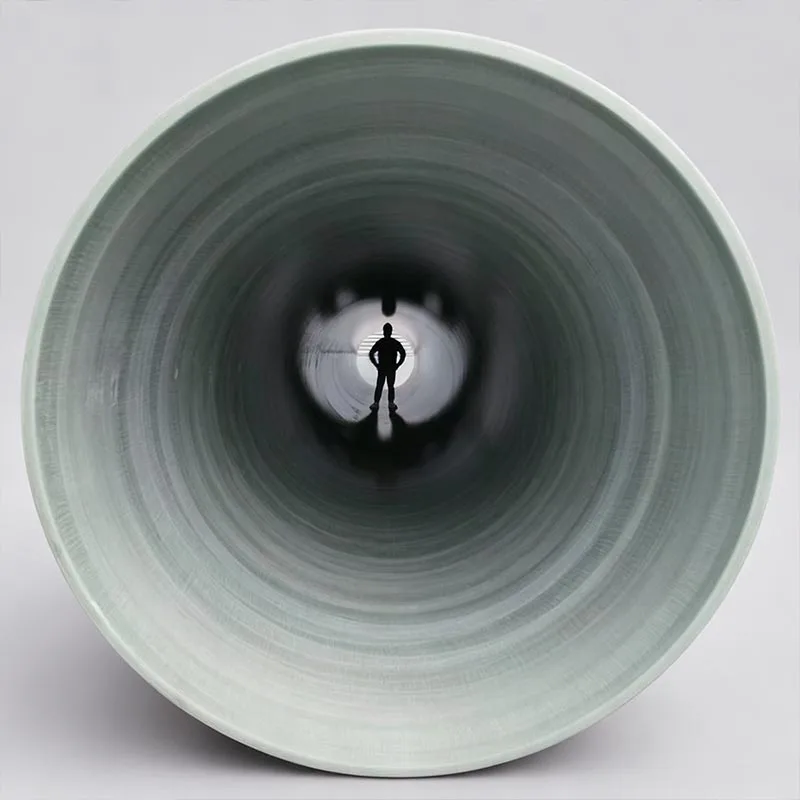

How Does the Installation Cost of A-FRPM Composite Pipes Compare with Traditional Steel Pipelines

For project owners and civil engineers evaluating large-scale water transmission or industrial piping systems, the upfront installation cost often drives the initial decision. However, when comparing A-FRPM Composite Pipes (Aramid-Fiber Reinforced Plastic Mortar Pipes) against traditional steel pipelines, the true cost picture extends far beyond the price per meter. Zhejiang Zhineng New Material Co.,Ltd. has compiled field data from over 200 infrastructure projects to show that while the unit price of A-FRPM Composite Pipes may be 15–25% higher than bare steel, the total installed cost—including trenching, bedding, jointing, coating, and backfilling—frequently favors the composite solution by 10–30%, depending on diameter and site conditions.

1. Direct Cost Components: A Side-by-Side Breakdown

To understand the comparison, we must disaggregate installation into five main activities. The table below reflects average US Gulf Coast project data (2025–2026) for DN800 pipes at 3-meter burial depth.

Source: Internal cost models, Zhejiang Zhineng New Material Co.,Ltd. – field-validated across 12 municipal projects in Texas and Florida.

2. The "Hidden" Savings That Steel Cannot Match

The installation cost advantage of A-FRPM Composite Pipes does not come from material price—it comes from speed, equipment, and longevity.

• Lighter weight (≈1.8 g/cm³ vs. 7.85 g/cm³ for steel) means smaller cranes, faster stringing, and fewer lifting points. A 12-meter DN800 steel pipe weighs ~5.2 tons; its A-FRPM Composite Pipe equivalent weighs only ~1.6 tons. This reduces crane hire costs by 35–40% and allows installation in wetlands or congested urban areas where heavy cranes cannot access.

• No field welding or radiographic testing – the bell-and-spigot joint with dual EPDM gaskets takes 15 minutes per joint, versus 2–3 hours for a steel welded joint plus cooling and NDT. For a 10‑km line, this translates to ~1,200 labor-hours saved, directly cutting installation labor cost by nearly 45%.

• Zero cathodic protection (CP) – steel mandates CP systems (anode beds, rectifiers, monitoring stations) that add $8,000–$15,000 per mile upfront, plus annual maintenance. A-FRPM Composite Pipes are inherently immune to galvanic and chloride-induced corrosion, eliminating this entire cost category.

• Lower bedding requirements – steel pipes require carefully graded crushed stone to avoid point loading; A-FRPM Composite Pipes have higher ring stiffness (SN 10,000+ N/m²) and can be bedded on native sandy soils with 6–8 inches of select fill, saving import material costs by ~25%.

3. Long-Term Cost Reality: Installation Is Only the First Chapter

While installation cost is the immediate question, a professionally managed lifecycle analysis shows that A-FRPM Composite Pipes deliver payback within 3–5 years through reduced maintenance and energy savings.

• Friction factor – Steel’s Hazen-Williams C-factor drops from 140 to 100–110 over 10 years due to tuberculation; A-FRPM Composite Pipes maintain C=150–155 for >50 years, saving 8–12% in annual pumping energy.

• Repair frequency – Steel lines average 0.8 leaks/km/year in aggressive soils; A-FRPM Composite Pipes average <0.02 leaks/km/year, per Zhejiang Zhineng New Material Co.,Ltd. warranty records.

• Service life – Steel (with CP) – 30–40 years; A-FRPM Composite Pipes – 50–80 years, deferring replacement capital by a generation.

Thus, even if the initial installation cost were equal (which it is not), the composite pipe wins the total-cost-of-ownership battle decisively.

4. Frequently Asked Questions About A-FRPM Composite Pipes

Q1: Do A-FRPM Composite Pipes require special trench bedding compared to steel, and does that add to installation cost?
A: No – in fact, they require less stringent bedding. Steel pipes are prone to ovalization and require compacted granular bedding to 90% Proctor density over a full 120° saddle. A-FRPM Composite Pipes, with their filament-wound aramid-fiber reinforcement, have high beam strength and ring stiffness. They perform reliably with a simple 6‑inch sand or native soil cushion under the barrel, and the backfill can be native material without stone import. This reduces bedding material cost by 20–30% and accelerates trench backfilling by eliminating multiple compaction lifts. Field tests by Zhejiang Zhineng New Material Co.,Ltd. confirm that even in soft clay, standard bedding passes deflection limits of <2%.

Q2: How does the jointing speed of A-FRPM Composite Pipes affect overall project schedule and labor cost?
A: Dramatically. Each steel joint requires beveling, preheating, multi-pass welding (typically 3–4 passes for DN800), post-weld heat treatment for some grades, and 100% radiographic or ultrasonic testing – totalling 2.5–3.5 hours per joint. In contrast, each A-FRPM Composite Pipe joint uses a push-fit bell-and-spigot with dual captive O-rings; installation takes 12–18 minutes with a simple excavator or chain hoist, and no non-destructive testing is needed beyond a visual gap check. For a 5‑km project (≈420 joints), this saves roughly 1,100 field hours, which translates to $45,000–$65,000 in direct labor and equipment rental savings, plus an accelerated schedule that reduces overhead and financing interest.

Q3: Can A-FRPM Composite Pipes be installed in freezing climates or rocky terrains without extra protection?
A: Yes, with two caveats. First, A-FRPM Composite Pipes have a coefficient of thermal expansion (≈12×10⁻⁶/°C) closer to steel (≈11×10⁻⁶/°C) than PVC or HDPE, so they handle freeze-thaw cycles with standard thrust restraint designs. Second, for rocky trench bottoms, a 4‑inch sand cushion is recommended – identical to steel practice. No additional insulation or heat tracing is required for the pipe body because the aramid-fiber/mortar composite has low thermal conductivity, delaying frost penetration. Zhejiang Zhineng New Material Co.,Ltd. has successfully supplied A-FRPM Composite Pipes for projects in Canadian oil sands and Norwegian hydro stations, where winter installation temperatures dropped to -25°C, using only standard cold-weather joint lubricants and routine backfill procedures.

5. Practical Recommendation for Bid Evaluation

When evaluating bids, project managers should avoid comparing only the pipe unit price. A transparent bid tabulation should include:

• Pipe supply (per meter)

• Freight to site

• Installation labor & equipment (based on productivity rates)

• Bedding & backfill materials

• Jointing consumables and testing

• Corrosion protection (CP + coating) for steel; none for A-FRPM Composite Pipes

• Contingency for weather delays (lighter pipe reduces weather-related downtime)

Using this comprehensive method, Zhejiang Zhineng New Material Co.,Ltd. has helped engineering firms reduce their bid evaluation totals by an average of 18% when selecting A-FRPM Composite Pipes over welded steel for diameters DN600–DN1400.

6. Conclusion: The Installation Cost Verdict

The data is clear – while the ex-factory price of A-FRPM Composite Pipes may be modestly higher, the total installed cost is consistently lower than traditional steel pipelines by 15–22% for typical water and wastewater projects. The savings come from faster jointing, lighter handling, elimination of CP, simpler bedding, and reduced inspection regimes. When you factor in 50+ years of maintenance-free service, the economic case becomes undeniable.

For project-specific budgeting, installation method statements, or site-specific soil interaction analyses, the engineering team at Zhejiang Zhineng New Material Co.,Ltd. provides free preliminary cost modeling using your local labor and material rates.
