How Does a Corrugated Metal Hose Improve Industrial Piping Performance?

Article Summary

Corrugated Metal Hose is a flexible piping component designed to handle demanding industrial applications where vibration, thermal expansion, pressure changes, and movement can create challenges for traditional rigid piping systems. This article explains how corrugated metal hoses work, why industries choose them, what problems they solve, and how to select the right solution for different operating environments.

With advanced manufacturing capabilities and industry experience, JIDONGDA provides reliable corrugated metal hose solutions designed to support chemical processing, energy systems, machinery connections, and other high-performance industrial applications.

Table of Contents

• 1. What Is a Corrugated Metal Hose?
• 2. How Does a Corrugated Metal Hose Work?
• 3. What Problems Can Corrugated Metal Hose Solve?
• 4. Where Are Corrugated Metal Hoses Used?
• 5. How to Choose the Right Corrugated Metal Hose?
• 6. Maintenance Tips for Longer Service Life
• 7. Frequently Asked Questions

Article Outline

• Understanding the structure and function of corrugated metal hoses
• Solving common industrial piping challenges
• Exploring applications across different industries
• Choosing suitable materials, sizes, and configurations
• Improving safety, efficiency, and equipment reliability

What Is a Corrugated Metal Hose?

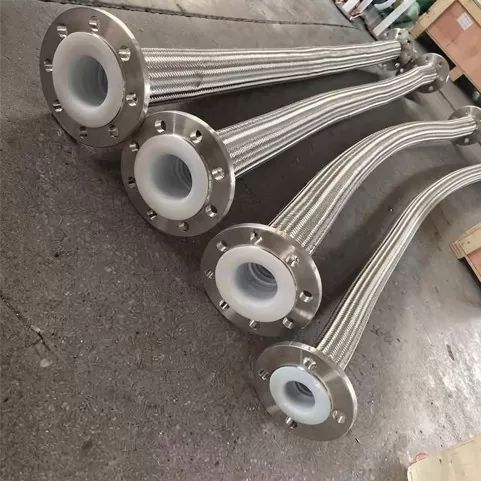

A Corrugated Metal Hose is a flexible pipe component manufactured from metal tubing with a series of corrugations formed along its length. These corrugations allow the hose to bend, compress, expand, and absorb mechanical movement while maintaining excellent pressure resistance and durability.

Unlike traditional rigid pipes, industrial equipment often requires flexible connections because operating conditions can change continuously. Temperature fluctuations may cause pipelines to expand or contract, while pumps, engines, and compressors can generate vibration. Without a flexible connection, these forces may lead to pipe deformation, leakage, or premature equipment failure.

Corrugated metal hoses provide an effective solution by combining flexibility with the strength of metallic materials. They are commonly manufactured using stainless steel because of its corrosion resistance, high temperature capability, and long-term reliability.

JIDONGDA develops corrugated metal hose products that are designed to meet different industrial requirements, helping customers create safer and more stable fluid transfer systems.

How Does a Corrugated Metal Hose Work?

The working principle of a corrugated metal hose is based on the flexible structure created by its corrugated design. The repeated wave-like shape allows the metal tube to absorb movement without losing its sealing performance.

When connected between two pieces of equipment, the hose can compensate for several types of movement:

• Axial movement: The hose can absorb expansion and contraction along its length caused by temperature changes.
• Lateral movement: It can handle side-to-side displacement between connected equipment.
• Angular movement: The flexible structure allows controlled bending during installation or operation.
• Vibration absorption: It reduces vibration transmission from mechanical equipment to pipelines.

Many corrugated metal hoses also include braided reinforcement layers. These metal braids increase pressure resistance while maintaining flexibility. The combination of corrugated tubing and braided reinforcement creates a balanced solution for demanding industrial environments.

What Problems Can Corrugated Metal Hose Solve?

Industrial piping systems frequently experience problems caused by movement, pressure, and temperature variations. A properly selected corrugated metal hose can help solve these challenges efficiently.

• Reducing vibration damage: Rotating equipment such as pumps and compressors creates continuous vibration. Flexible hoses help isolate these forces and protect connected components.
• Managing thermal expansion: High-temperature systems can cause pipes to expand. Corrugated metal hoses compensate for these dimensional changes and reduce stress on pipelines.
• Improving installation flexibility: Complex equipment layouts often require connections in limited spaces. Flexible hoses simplify installation and reduce the need for complicated piping arrangements.
• Enhancing system safety: Reliable connections help minimize leakage risks when transporting gases, liquids, or chemical media.
• Extending equipment lifespan: By reducing mechanical stress, flexible hose connections help protect expensive machinery and piping infrastructure.

Where Are Corrugated Metal Hoses Used?

Due to their excellent flexibility and resistance characteristics, corrugated metal hoses are widely used in industries requiring dependable fluid and gas connections.

• Petrochemical Industry: Used for transferring chemicals, gases, and process fluids where corrosion resistance is essential.
• Power Generation: Applied in equipment connections requiring vibration control and temperature compensation.
• Manufacturing Equipment: Used between machines and pipelines to absorb movement and improve operational stability.
• Food and Pharmaceutical Processing: Stainless steel hose designs support hygienic and corrosion-resistant requirements.
• Automotive Systems: Used for exhaust systems, engine connections, and applications requiring flexible metal components.

Different industries have different operating conditions, including pressure levels, temperature ranges, and media characteristics. Therefore, selecting a suitable corrugated metal hose configuration is critical for achieving reliable performance.

How to Choose the Right Corrugated Metal Hose?

Selecting the correct corrugated metal hose requires consideration of several technical factors. Choosing an unsuitable product may reduce service life or affect system safety.

• Material Selection: Stainless steel grades should match the application environment. Corrosive media may require higher corrosion resistance.
• Pressure Rating: The hose must withstand the maximum working pressure of the system.
• Temperature Requirements: Operating temperature affects material performance and durability.
• Connection Type: Flanges, threaded connections, and other fittings should match existing equipment requirements.
• Movement Requirements: Consider whether the application requires axial, lateral, or angular flexibility.

Professional manufacturers can help customers evaluate operating conditions and provide suitable solutions instead of simply supplying standard products.

Maintenance Tips for Longer Service Life

Although corrugated metal hoses are designed for durability, proper inspection and maintenance can further improve reliability.

• Regularly inspect the hose surface for cracks, corrosion, or deformation.
• Check connection points to ensure fittings remain secure.
• Avoid excessive bending beyond the recommended bending radius.
• Confirm that operating pressure and temperature remain within design limits.
• Replace damaged hoses promptly to prevent unexpected system failures.

Preventive maintenance helps companies reduce downtime, improve production efficiency, and maintain safer industrial operations.
