How Does a CNC Machined Aluminum Blue Anodized Component Deliver Precision, Durability, and Visual Quality?

1. Understanding CNC Machined Aluminum Blue Anodized Components

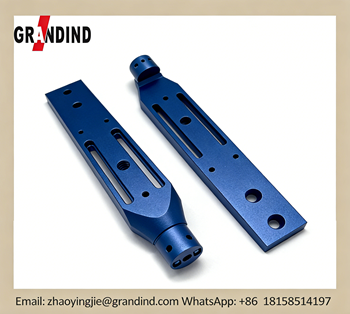

A CNC machined aluminum blue anodized component is a precision part manufactured from aluminum stock using computer-controlled machining equipment and subsequently treated through an anodizing process that produces a blue-colored surface.

CNC machining can produce complex geometries, holes, pockets, threads, slots, chamfers, and other detailed features with repeatable dimensional control. Aluminum is frequently selected because it offers a useful balance of low density, strength, machinability, and corrosion resistance.

Anodizing adds another dimension to the component. Instead of simply applying a conventional paint layer, anodizing creates a controlled oxide layer on the aluminum surface. Depending on the anodizing process and specification, the resulting surface can improve wear and corrosion resistance while providing a distinctive appearance.

The finished component is therefore the result of several connected manufacturing stages. A high-quality appearance cannot compensate for poor machining accuracy, and excellent machining cannot fully solve an unsuitable anodizing specification. Both stages need to be planned together.

2. How CNC Machining Creates Precision Aluminum Components

CNC machining uses programmed machine movements to remove material from an aluminum workpiece. Depending on the component geometry, manufacturers may use CNC milling, turning, drilling, tapping, or a combination of processes.

Digital Design and Programming

Production normally begins with a technical drawing or three-dimensional CAD model. Engineers translate the design into machining instructions that define tool paths, cutting operations, feeds, speeds, and other parameters.

Material Preparation

Aluminum plate, bar, block, or other stock is prepared according to the component's geometry and required production method. The material grade should be confirmed before machining because different aluminum alloys have different strength, hardness, corrosion behavior, and machining characteristics.

Rough Machining

Rough machining removes larger quantities of material efficiently. The objective is to create the general shape while leaving sufficient material for finishing operations.

Precision Finishing

Finishing passes produce the final dimensions and surface characteristics. Small tools and controlled cutting parameters may be required for narrow slots, fine pockets, thin walls, or complex contours.

Deburring and Cleaning

After machining, sharp edges and machining residues must be addressed. Proper deburring is particularly important before anodizing because surface defects and contamination can become visible after finishing.

3. How Blue Anodizing Changes the Component Surface

Anodizing is an electrochemical surface treatment used on aluminum. The process develops an oxide layer on the aluminum surface rather than adding a conventional organic coating on top of it.

Surface Preparation Comes First

The machined component must be cleaned and prepared before anodizing. Oils, fingerprints, machining residues, scratches, and inconsistent surface textures can influence the final appearance.

Electrochemical Treatment

During anodizing, the aluminum component functions as part of an electrochemical process that forms an oxide layer. Process parameters influence the characteristics of the resulting finish.

Creating the Blue Appearance

Color can be introduced during the anodizing process. The final shade can vary according to alloy composition, surface preparation, process parameters, dye or coloring conditions where applicable, and production batch.

For customers requiring a highly consistent blue appearance, it is important to establish an approved color reference and communicate acceptable variation before mass production.

Sealing and Final Treatment

Depending on the anodizing process, sealing may be used to improve the performance of the anodized layer. The exact treatment should be specified according to the required finish and application.

4. Key Benefits for Industrial Applications

Lightweight Construction

Aluminum has a relatively low density compared with many common engineering metals. This makes it attractive for applications where reducing component weight can simplify handling or contribute to overall product weight reduction.

Precision and Repeatability

CNC machining allows manufacturers to reproduce programmed geometries consistently when machines, tooling, fixtures, materials, and inspection systems are properly controlled.

Corrosion Resistance

Aluminum naturally forms a thin oxide layer, and anodizing can further modify the surface. The resulting finish can provide enhanced surface protection for suitable environments.

Distinctive Appearance

Blue anodizing provides a clean and recognizable appearance that can be useful for product differentiation, component identification, and premium industrial design.

Good Machinability

Many aluminum alloys are well suited to CNC machining, allowing manufacturers to produce detailed geometries efficiently. However, alloy selection should always consider the component's mechanical and environmental requirements.

Potential Wear Improvement

The anodized oxide layer can provide increased surface hardness compared with untreated aluminum. The actual wear performance depends on anodizing type, layer characteristics, contact conditions, and application.

5. Common Applications and Industries

CNC machined aluminum blue anodized components can be found in applications where appearance, weight, dimensional accuracy, and surface performance are important.

Automation Equipment

Industrial automation systems use precision brackets, housings, fixtures, adapters, mounting plates, and mechanical components. Blue anodizing can provide visual differentiation between component groups while protecting the aluminum surface.

Electronics and Electrical Equipment

CNC aluminum components are frequently used for housings, heat-management structures, mounting components, covers, and mechanical interfaces. The finished appearance can also support the design of professional equipment.

Consumer Electronics

Product housings and decorative mechanical components often require a combination of precise dimensions and attractive surface finishing. Blue anodizing can provide a recognizable appearance while maintaining the metallic character of aluminum.

Optical and Instrumentation Equipment

Precision instruments may require accurately machined aluminum structures, mounting rings, brackets, and adjustment components. Dimensional stability and surface quality can be particularly important in these applications.

Automotive and Transportation Components

Aluminum CNC components can be used for prototypes, brackets, housings, fixtures, and selected production parts. Specific automotive applications require appropriate material, testing, and qualification requirements.

6. Important Specifications to Define

Many sourcing problems begin with incomplete specifications. A clear technical requirement gives the manufacturer a better basis for production planning and quotation.

Aluminum Alloy

Specify the required aluminum alloy rather than simply stating "aluminum." Different alloys offer different combinations of machinability, strength, corrosion resistance, and anodizing response.

Dimensional Tolerances

Not every feature needs an extremely tight tolerance. Over-specifying tolerances can increase machining time and cost. Critical dimensions should be identified separately from non-critical dimensions.

Blue Anodizing Specification

Define the required anodizing type, color reference, appearance, and any performance requirements. If a specific color is critical, provide an approved physical sample or recognized color reference where practical.

Surface Finish

Surface roughness, machining marks, brushing, blasting, polishing, or other preparation requirements should be documented before production.

Inspection Requirements

Critical dimensions may require specific inspection methods. If the component is part of a precision assembly, identify the functional interfaces and key characteristics that require verification.

7. Design Considerations for Better Manufacturability

A well-designed component can reduce machining time, improve quality, and simplify anodizing. Design for manufacturability should therefore be considered before a component enters production.

Avoid Unnecessarily Deep Narrow Features

Deep pockets and narrow slots may require long or specialized cutting tools. These tools can deflect more easily, increasing the difficulty of maintaining dimensional accuracy.

Use Practical Internal Radii

CNC milling tools are generally round, so completely sharp internal corners are difficult to produce through conventional milling. Adding an appropriate internal radius can simplify machining and reduce unnecessary tool changes.

Identify Critical Dimensions

Clearly identifying functional dimensions helps manufacturers focus inspection resources where they matter most. Not every surface needs the same tolerance.

Consider Anodizing Before Finalizing Tolerances

Because anodizing changes the surface layer, dimensions associated with close-fitting features may need special consideration. The supplier and finishing provider should agree on the process requirements before production.

Design for Handling and Protection

Thin walls, delicate edges, and decorative surfaces can be damaged during machining, anodizing, inspection, or transportation. Packaging requirements should be considered alongside the component design.

• Define functional tolerances rather than unnecessarily tightening every dimension.
• Use realistic internal corner radii.
• Communicate the aluminum alloy clearly.
• Specify the blue anodized finish before mass production.
• Identify surfaces that require special cosmetic attention.
• Discuss difficult geometries with the manufacturer before finalizing the design.

8. Quality Control and Inspection

Quality control should cover both machining and surface finishing. Inspecting only the final appearance is not enough for a precision component.

Dimensional Inspection

Critical dimensions can be measured using calipers, micrometers, gauges, height gauges, coordinate measuring machines, or other suitable equipment depending on the required tolerance.

Visual Inspection

The anodized surface should be checked for scratches, stains, inconsistent color, dents, visible machining defects, and other appearance issues according to the agreed acceptance criteria.

Color Consistency

Blue anodizing can exhibit variation because aluminum alloy composition and surface preparation influence the final color. Production controls and approved reference samples can help maintain consistency between batches.

Functional Inspection

If the component interfaces with bearings, shafts, fasteners, seals, connectors, or other parts, those interfaces should be verified according to the functional requirements rather than relying only on general dimensional inspection.

9. How to Source the Right Component Supplier

Choosing a CNC machining supplier should involve more than comparing unit prices. The supplier needs to demonstrate that it can manage the complete production chain from material preparation through machining, finishing, inspection, and packaging.

Review Technical Capability

Ask about CNC machining capabilities, available equipment, tolerance control, material experience, and finishing resources. A supplier familiar with aluminum components and anodizing can identify potential problems earlier.

Evaluate Communication

Clear communication is essential when drawings contain tight tolerances or special finishing requirements. A capable supplier should be able to identify ambiguous specifications and discuss practical production solutions.

Request Samples When Appropriate

A prototype or production sample can help verify dimensions, surface appearance, color, assembly fit, and overall workmanship before committing to larger quantities.

Discuss Quality Documentation

Depending on the project, buyers may require material certificates, inspection records, dimensional reports, or other documentation. These requirements should be established before production rather than after shipment.

Hangzhou Grand Import And Export Co., Ltd. provides precision manufacturing and sourcing support for customers requiring CNC machined components and customized aluminum parts. Clear technical communication allows the manufacturing process to be aligned with the customer's drawings, application requirements, and finishing expectations.

10. Common Purchasing Problems and Solutions

Problem: The Blue Color Is Inconsistent

Anodized aluminum can show color differences due to alloy composition, surface preparation, process parameters, and production batches. To reduce this issue, buyers should establish a color reference and acceptable variation before mass production.

Problem: The Component Fits Before Anodizing but Not Afterward

Anodizing creates a surface layer that can affect dimensions on close-tolerance features. Critical fits should therefore be considered as part of the complete machining and finishing process.

Problem: Machining Marks Become More Visible

Anodizing does not necessarily hide machining imperfections. In some cases, surface variations become more noticeable after finishing. Surface preparation requirements should be agreed upon before production.

Problem: The Quoted Price Is Higher Than Expected

Cost can increase because of tight tolerances, complex geometries, small production quantities, extensive finishing, difficult inspection requirements, or special packaging. A design review can identify opportunities to simplify non-critical features without compromising functionality.

Problem: Components Arrive With Cosmetic Damage

Anodized surfaces can be vulnerable to scratches from improper handling. Individual separation, protective wrapping, suitable cartons, and controlled packing methods can help reduce transportation damage.

Problem: The Supplier Cannot Maintain Production Consistency

Consistency requires stable materials, repeatable machining processes, controlled finishing, and appropriate inspection. Before a large order, buyers should discuss production controls and quality acceptance criteria with the supplier.

11. Frequently Asked Questions

12. Final Considerations for CNC Machined Aluminum Blue Anodized Components

A CNC Machined Aluminum Blue Anodized Component combines precision manufacturing with a functional and visually distinctive surface treatment. When correctly specified, it can provide a useful balance of dimensional accuracy, lightweight construction, corrosion resistance, surface durability, and product appearance.

The most important consideration is to treat machining and anodizing as one connected manufacturing project. Material grade, tolerances, surface preparation, color expectations, and finishing requirements should be defined before production begins. This is especially important for components that require tight fits or consistent cosmetic appearance across multiple batches.

Buyers can also reduce unnecessary costs by distinguishing critical specifications from cosmetic or non-functional preferences. Clear drawings, realistic tolerances, approved finish samples, and defined inspection criteria create a stronger foundation for consistent production.

For businesses sourcing customized precision components, working with a supplier capable of understanding both engineering and finishing requirements can simplify communication and reduce manufacturing risks.
