Can You Use Galvanized Steel Grating for Mezzanine Floors and Heavy-Duty Racks
2026-07-17

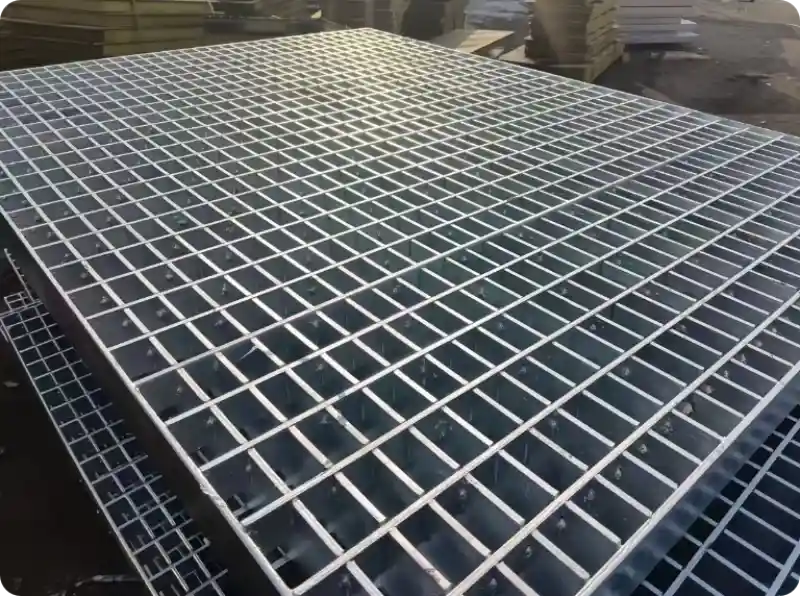

When industrial facility managers evaluate flooring solutions for elevated platforms and storage systems, galvanized steel grating frequently emerges as a top contender. Unlike standard checker plate or concrete decks, this material offers a unique balance of open-area design, structural integrity, and long-term corrosion protection. At Shunchen, we have engineered and supplied galvanized steel grating for thousands of mezzanine and racking projects across warehouses, automotive plants, and distribution centers. The short answer is yes—but the real question is how to specify it correctly for your specific load, span, and environmental conditions.
Why Choose Galvanized Steel Grating for Mezzanines and Racks?
Mezzanine floors and heavy-duty racks demand materials that endure dynamic live loads, point loads from forklifts, and continuous vibration. Galvanized steel grating excels in these areas due to its high strength-to-weight ratio. The hot-dip galvanizing process—immersing fabricated steel in molten zinc—creates a metallurgically bonded coating that outlasts paint or powder finishes by decades.
Key performance benefits include:
-
Slip resistance: Serrated or swaged surfaces provide traction even with oil or water spills.
-
Fire safety: Zero combustible components, meeting ASTM E84 Class A ratings.
-
Drainage & ventilation: Open grid design prevents liquid pooling and reduces wind uplift.
-
Low maintenance: No repainting or recoating required for 20+ years in normal indoor environments.
Shunchen produces both welded and press-locked galvanized steel grating, allowing customization for light-duty mezzanine walkways (2 kN/m²) up to heavy-duty rack decking supporting 12+ kN/m².
Load Capacity & Span Tables (Engineering Reference)
The following table summarizes typical allowable uniform loads for Shunchen welded galvanized steel grating with bearing bar pitches of 30 mm and 40 mm. Values are based on ASTM F1263 deflection criteria (L/200 for serviceability).
| Grating Type | Bearing Bar Size (mm) | Clear Span (mm) | Uniform Load (kN/m²) | Deflection (mm) |
|---|---|---|---|---|
| W-30/5 | 30 × 5 | 1000 | 8.5 | 2.1 |
| W-30/5 | 30 × 5 | 1500 | 4.2 | 4.8 |
| W-40/6 | 40 × 6 | 1000 | 12.0 | 1.9 |
| W-40/6 | 40 × 6 | 1800 | 6.8 | 5.2 |
| W-40/7 | 40 × 7 | 2000 | 9.5 | 4.3 |
*Note: For concentrated wheel loads (e.g., pallet jacks), Shunchen recommends reducing span by 15–20% or increasing bearing bar thickness. We provide free load-calculation sheets upon request.
Design Considerations for Heavy-Duty Racks
Rack decking differs from mezzanine flooring in two critical ways: (1) point-load concentration from rack uprights, and (2) seismic/horizontal forces. Galvanized steel grating used as rack shelving must be secured with clips or bolts every 600 mm to prevent dislodgment. Shunchen offers pre-drilled edges and custom banding (flat bar borders) to stiffen panel perimeters.
For mezzanine floors, additional structural supports—such as I-beams or C-channels—are typically spaced at 1200–1500 mm centers. The grating acts as a diaphragm, distributing lateral loads. Always verify that the supporting steel is also galvanized or cathodically protected to avoid bimetallic corrosion at connection points.
Installation & Fastening Methods
Proper installation ensures the longevity of any galvanized steel grating system. Shunchen recommends three primary fastening systems:
| Fastener Type | Best Use Case | Corrosion Resistance |
|---|---|---|
| G-clips (saddle clips) | Mezzanine walkways with frequent removal needs | Galvanized or 304 SS |
| Welding on crossbars | Permanent heavy-duty rack decks | Full galvanized touch-up required |
| J-bolts & nuts | High-vibration areas (crane aisles) | Hot-dip galvanized bolts |
Avoid using dissimilar metals (e.g., copper or brass) in direct contact with galvanized steel grating—this accelerates zinc depletion through galvanic action.
FAQ – Common Questions About Galvanized Steel Grating
Q1: Can galvanized steel grating support forklift traffic on mezzanine floors?
A: Yes, but only if you select heavy-duty bearing bars (at least 40 mm × 6 mm) and reduce clear span to under 1200 mm. Forklift point loads often exceed 25 kN per wheel. Shunchen always performs a site-specific load analysis before recommending a grating specification. For frequent forklift use, we also suggest adding a 3 mm thick wear plate on top of the grating in high-traffic lanes to distribute wheel loads and prevent bar deformation over time.
Q2: How does galvanized steel grating perform in food-processing or cold-storage environments?
A: Exceptionally well. The zinc coating is FDA-compliant for incidental contact and resists ammonia and mild acids found in food plants. In cold storage (down to -40°C), galvanized steel grating maintains its impact resistance because steel's ductility improves at low temperatures. However, Shunchen advises against using it in direct contact with strong caustic cleaners (pH > 12) or prolonged brine immersion, as these can attack the zinc layer. For those applications, we offer an additional epoxy top-coat option.
Q3: What is the expected service life of galvanized steel grating in an outdoor, humid warehouse setting?
A: Under normal outdoor conditions with moderate humidity (non-marine), a 85 µm hot-dip galvanized coating from Shunchen provides 25–40 years of maintenance-free service, per ISO 14713. In humid warehouses with condensation cycles, the service life typically exceeds 30 years because the open-grid design allows rapid drying, preventing crevice corrosion. For coastal zones within 1 km of saltwater, we recommend increasing coating thickness to 100 µm and adding a clear sealer—this can extend life to 20+ years even in aggressive atmospheres.
Cost-Benefit Analysis vs. Alternatives
While initial material cost for galvanized steel grating is 30–50% higher than painted carbon steel, the total cost of ownership over 20 years is substantially lower—no repainting, no rust-related replacements, and minimal downtime. Compared to aluminum grating, galvanized steel offers twice the yield strength at a similar price point, making it the preferred choice for heavy-duty racking where deflection limits are strict.
Shunchen further reduces your project costs through just-in-time delivery and precision cutting to your CAD drawings, eliminating on-site trimming waste.
Final Verdict
Yes—galvanized steel grating is not only suitable but often optimal for mezzanine floors and heavy-duty racks, provided that span, load, fastening, and environmental factors are correctly engineered. The material's durability, fire resistance, and low lifecycle cost make it a staple in modern industrial infrastructure. With Shunchen's in-house engineering team, you receive certified load tables, 3D layout support, and 100% quality inspection on every panel.
Ready to specify your next mezzanine or racking project? Contact Shunchen today for a customized grating design, free sample kit, and competitive quote. Our engineers respond within 24 hours with span-load recommendations tailored to your facility's exact footprint.
