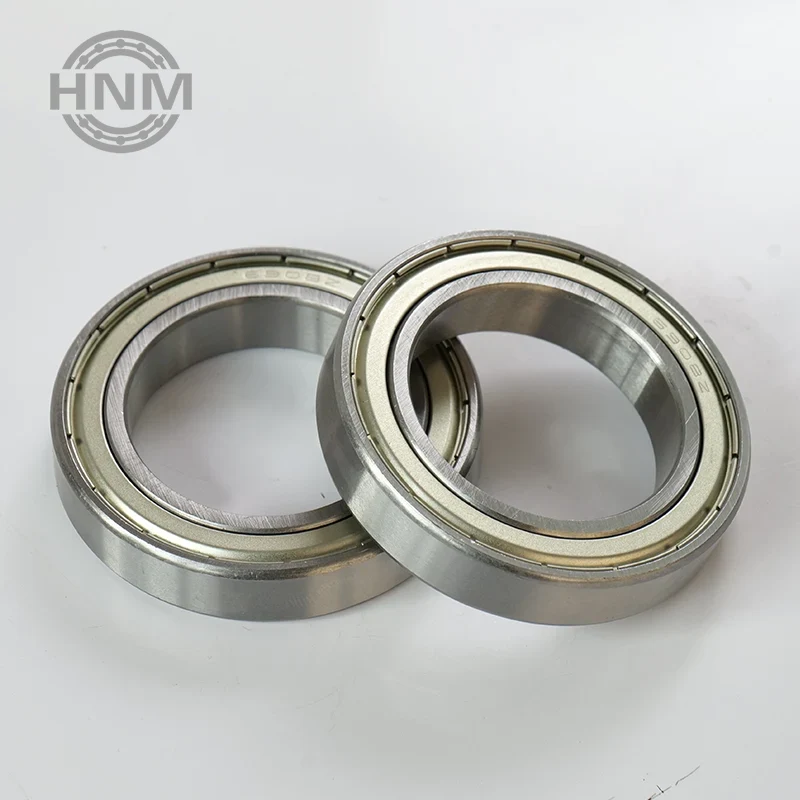

Are Thin Section Bearings the Solution for Your Space-Saving Design Challenge
2025-12-03
Engineers and designers constantly face the critical challenge of optimizing space and weight without compromising performance. When every millimeter and gram counts in applications like robotics, aerospace, medical devices, and precision automation, conventional bearings often fall short. This is where Hengji's specialized expertise in Thin Section Bearings becomes your strategic advantage. Our bearings are engineered specifically to deliver robust performance within an ultra-compact envelope, enabling sleeker, lighter, and more efficient designs.
At Hengji, we offer a comprehensive range of thin section bearings in standard cross-sections (e.g., 1/2", 3/4", 1") to meet diverse application demands. Our product line includes:
-
Radial Contact Bearings: Ideal for supporting primarily radial loads.
-
Angular Contact Bearings: Designed to handle combined radial and thrust loads.
-
Four-Point Contact Bearings: Provide maximum versatility in a single bearing for complex load scenarios.
Our commitment to precision and durability is reflected in our product parameters:
| Parameter | Specification & Feature |
|---|---|
| Cross Sections | 3/8", 1/2", 3/4", 1", 1.5" |
| Sizes (Inner Diameter) | From 1 inch (25.4 mm) up to 40 inches (1016 mm) |
| Material | High-carbon chromium steel (standard), stainless steel, and specialty materials |
| Clearance | Available in standard radial internal clearance classes (C2, CN, C3) |
| Precision Rating | Offered in ABEC 1, 3, 5, and 7 precision grades |
| Lubrication | Pre-lubricated with premium grease; options for oil or custom lubrication |
| Sealing | Integral seals or shields available for contaminant protection |
Thin Section Bearings FAQ
Q: Can Thin Section Bearings handle high-load applications?
A: Yes, they can. While the cross-section is thin, Hengji's bearings are manufactured from high-grade materials and heat-treated for optimal strength. The load capacity is substantial relative to their size. For very high loads, selecting the correct type—such as our four-point contact bearings—and proper sizing during the design phase is crucial for performance and longevity.
Q: Are there customization options for specific design needs?
A: Absolutely. Hengji prides itself on providing tailored solutions. Beyond standard sizes and types, we offer customization in materials (like corrosion-resistant stainless steel for medical or food-grade applications), special lubricants, unique sealing configurations, and even specific pre-load settings. Our engineering team collaborates with you to meet exact application requirements.
Q: How do I choose between radial and angular contact thin section bearings?
A: The choice depends on your load conditions. Use radial contact bearings if the primary load is perpendicular to the shaft (radial). Choose angular contact bearings if your application involves significant axial (thrust) loads alongside radial loads. For applications with reversing axial loads or complex load paths, our four-point contact Thin Section Bearings often provide the most efficient solution. Our technical support team can assist in this critical selection.
In today's competitive landscape, achieving a compact, high-performance design is not just an advantage—it's a necessity. Hengji's precision Thin Section Bearings provide the foundational component to turn this challenge into your product's success. We combine advanced engineering with rigorous manufacturing standards to deliver reliability where space is at a premium.
Ready to integrate the optimal thin section solution into your next project? Contact us today to discuss your specific requirements with our engineering specialists, request detailed catalogs, or obtain a custom quotation. Let Hengji be your trusted partner in innovation.
